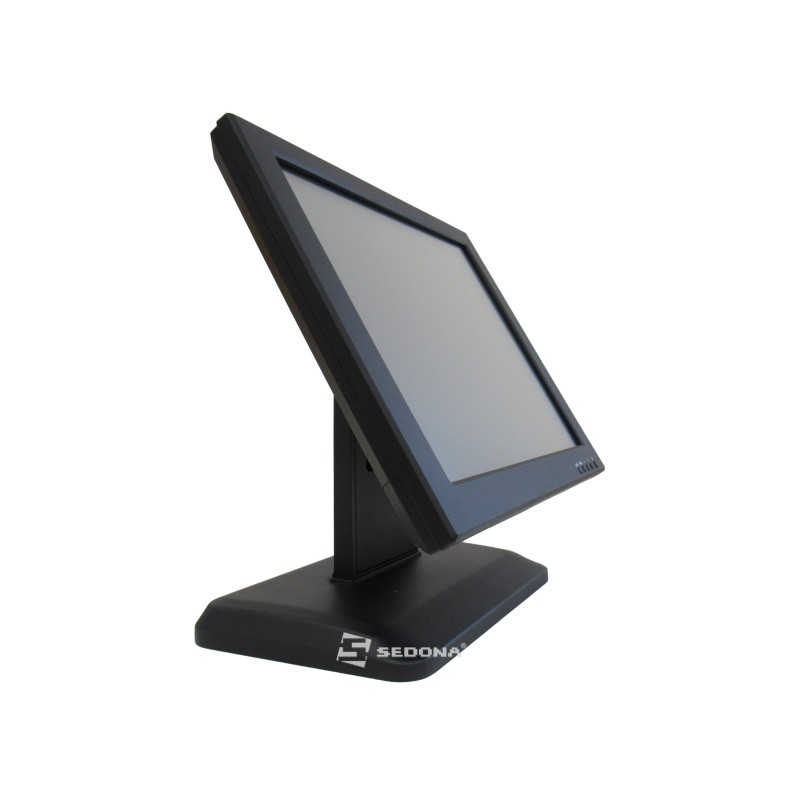

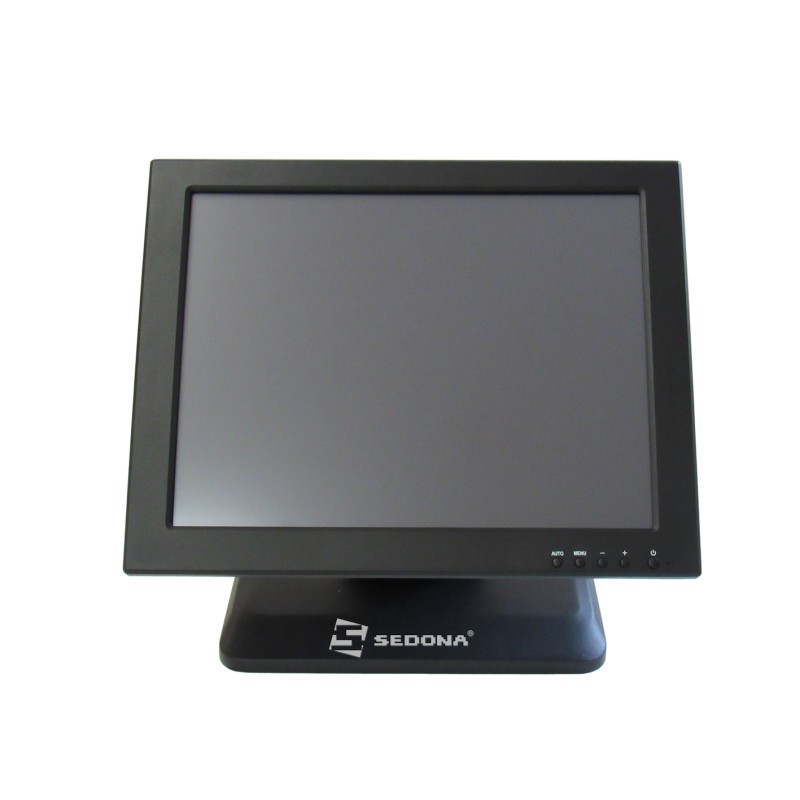

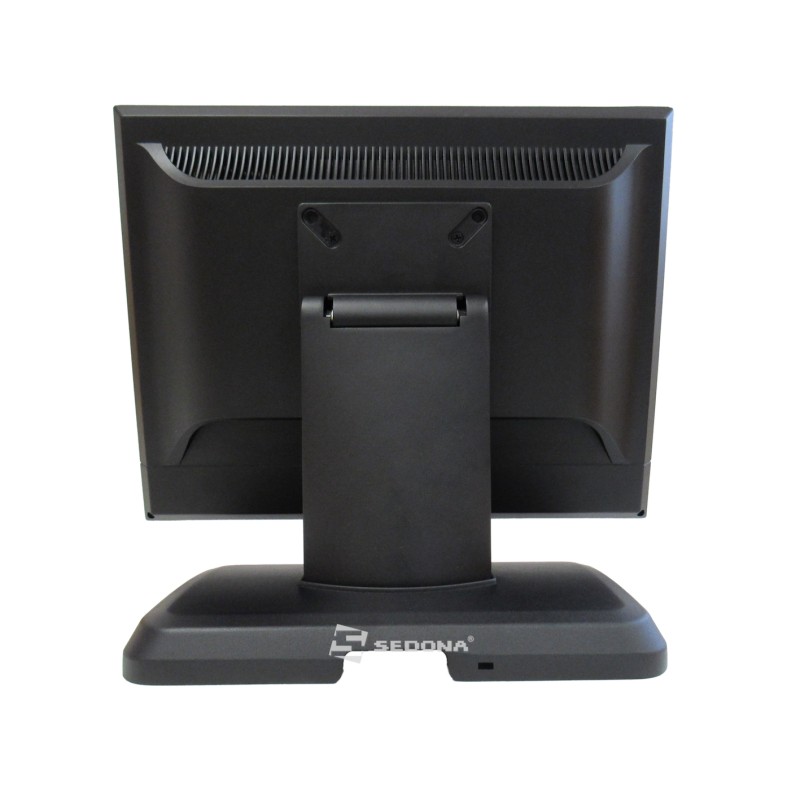

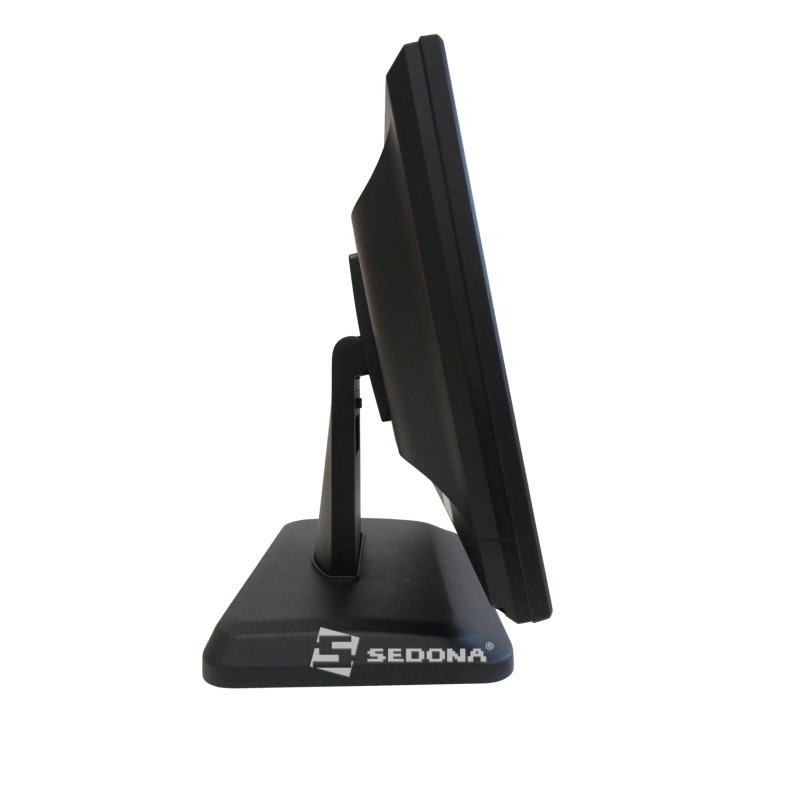

The LED back light module provides a slim look, longerlife, and lower power consumption for the touch monitor.It is the best choice for indoor application such as indoor office, charge system, self-service terminals.

Color: Black

Display Ratio: 5 :4

Backlight Type: LED

Active Display Area: 337.920mm*270.336mm

Pixels H x V: 1280*1024

Response Time(typ.): 5ms

Support Color: 16.7M

White Luminance(typ.): 250cd/m2

Contrast Ratio: 1000:1

Viewing Angle(cr≥10) Horizontal: 170°(85°/85°) (Typ.) Vertical: 160°(80°/80°) (Typ.)

Vertical Frequency: 50-76Hz

Led life time(typ.): 30000Hrs (Brightness of LED becomes to 50% of its original value)

Touch Technology Surface: Acoustic Wave(SAW)

Active Touch Area: 337.92mm*270.34mm

Glass Thickness: 3mm

Anti-Glare(optional) Gloss :100± 15

Touch Response Time: 10.4ms

Light Transmission: 90%

Surface Hardness Mohs’ hardness rating of 7

Touch-Screen Interface: RS232/USB

Mounting Options desktop

Video Input Format: VGA/DVI

Outline Dimensions: 391.00mm*331.00mm*206.50mm

Power Supply External Adapter:100-240VAC,50-60Hz Input Voltage Range: +12VDC ± 5%

On Screen Display (OSD) Control(back): Power, Menu, Up, Down, Auto

Power Consumption(Max): 30W

Speaker(optional): 2*3W

Packing Size: 485mm*433mm*293mm

Weight Shipping (Approximately):8.6kg

Temperature Range Operating: 0℃-40℃,storage: -20℃-60℃

Humidity (Non Condensing) Operating: 20%-80%,storage: 10%-90%

Agency Approvals FCC/CE

Warranty: 3 years (LED panel 1 year )
