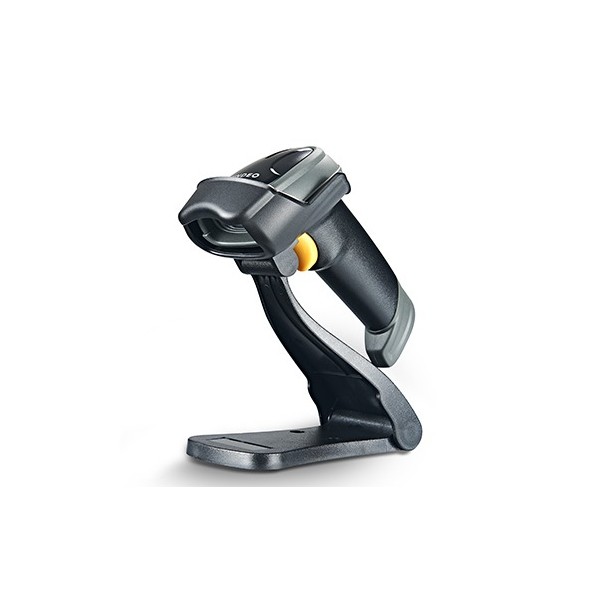

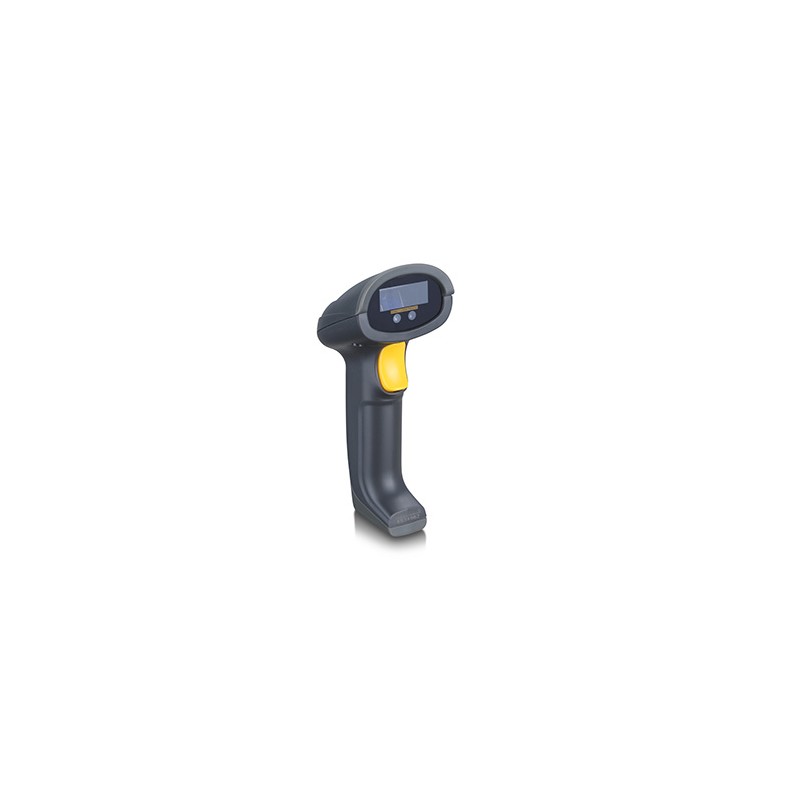

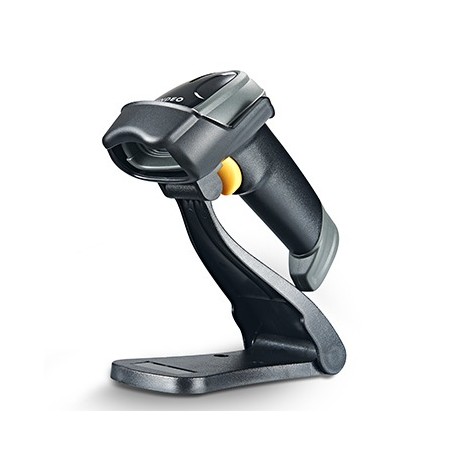

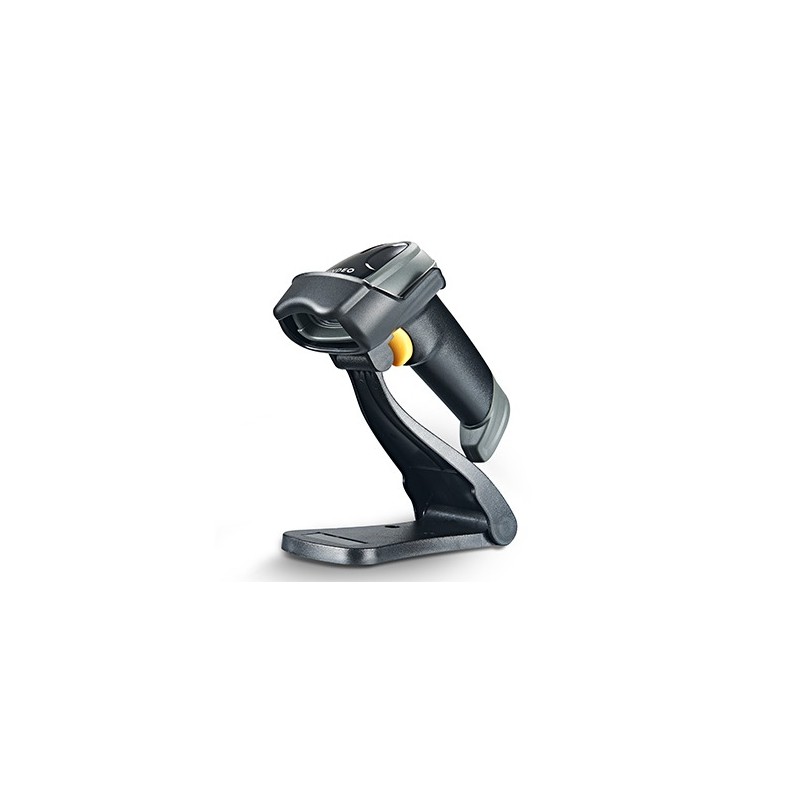

The Mindeo MD6600 is a 1D and 2D barcode scanner built for environments requiring manual or auto-detect scanning. Equipped with a tempered glass scan window, white illumination LED and a green aiming LED, the device ensures consistent readability across various barcode types. A 32-bit ARM processor and a 1280 x 800 pixel sensor support reliable decoding, assisted by wide scanning angles for flexible positioning.

Specifications

Dimensions: 90 mm x 62.8 mm x 153 mm
Weight: 132 g (without cable)
Cable: Straight 2.0 m
Connector type: RJ-45 phone jack connector
Case material: PC+TPU
Scan window: Tempered glass
Interfaces: RS-232, USB Keyboard, USB Virtual COM
Indicators: Beeper, LED
Operating modes: Handheld, Auto-Detect
Programming method: Manual (reading special barcode)
Firmware upgrade: Online
Input voltage: 5.0 ± 0.25 VDC
Current: Scanning 300 mA (max 480 mA), Standby 160 mA
CPU: 32-bit ARM Microprocessor
Scan pattern: Image
Image resolution: 1280 x 800 pixels
Light source: 5000 K white LED, 525 nm green aiming LED
Field of view: Horizontal 41°, Vertical 28°
Scanning angles: ±70°, ±75°, 360° (skew, pitch, roll)
Minimum print contrast: 20% reflectance
Supported codes: All common 1D/2D barcodes
Minimum resolution: 1D – 3 mil
Operating temperature: -10°C to 50°C
Storage temperature: -20°C to 70°C
Humidity: 5%–95% (non-condensing)
Safety/EMC: EN55032, EN55035, EN62471:2008, EN62368-1
Ambient light immunity: 0–100,000 lux
Sealing: IP52
Drop resistance: Multiple 2.0 m drops to concrete
