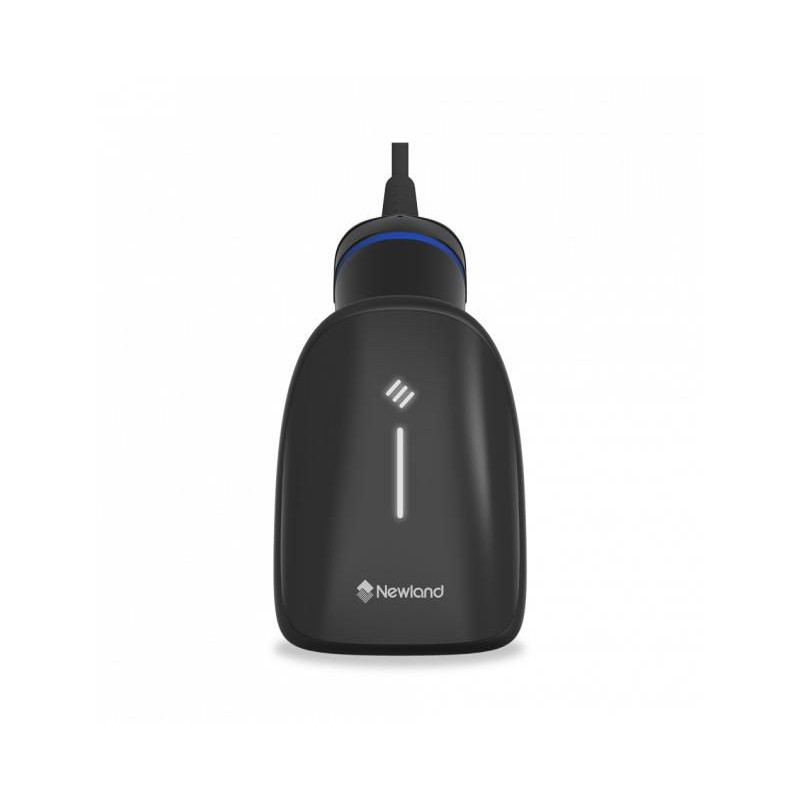

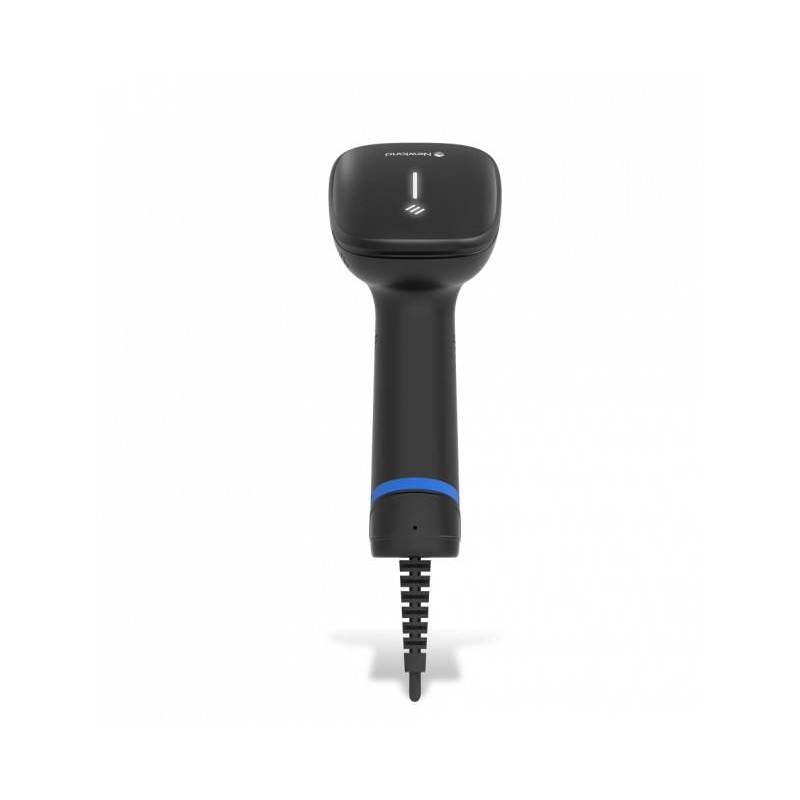

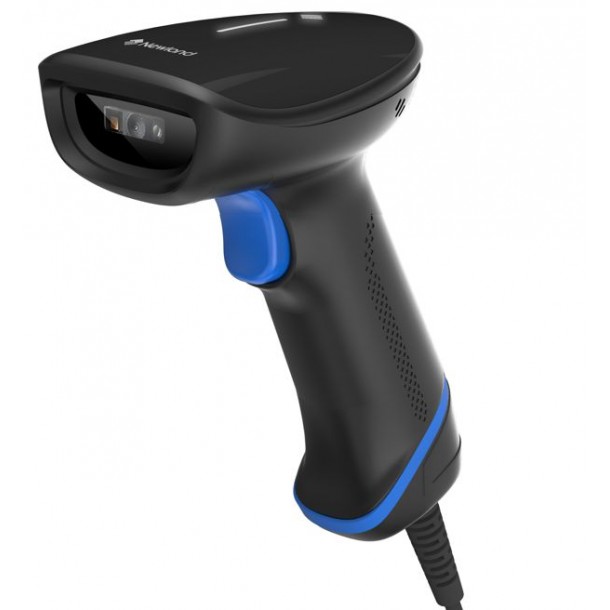

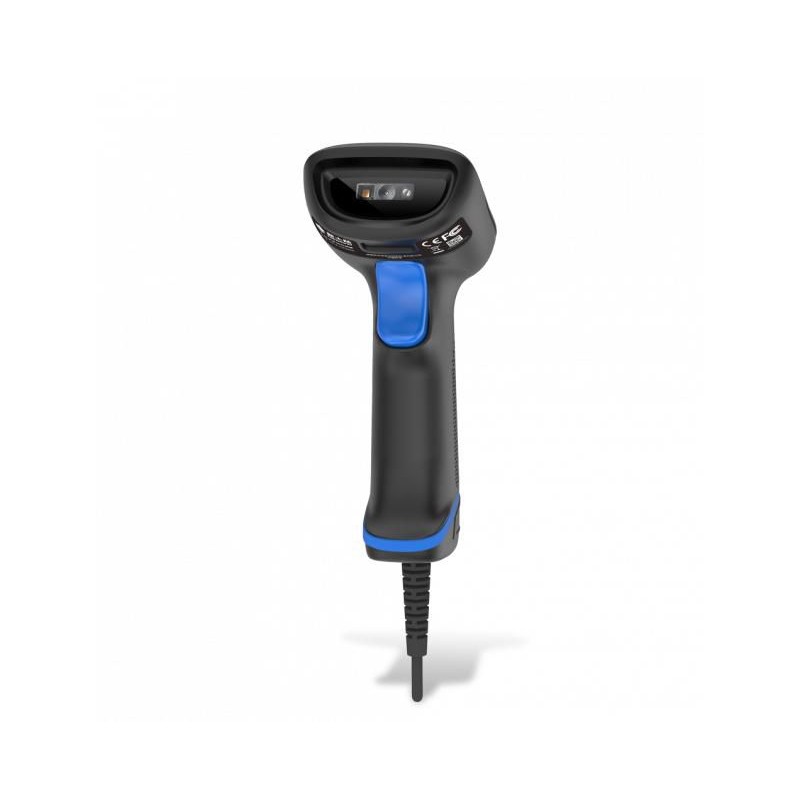

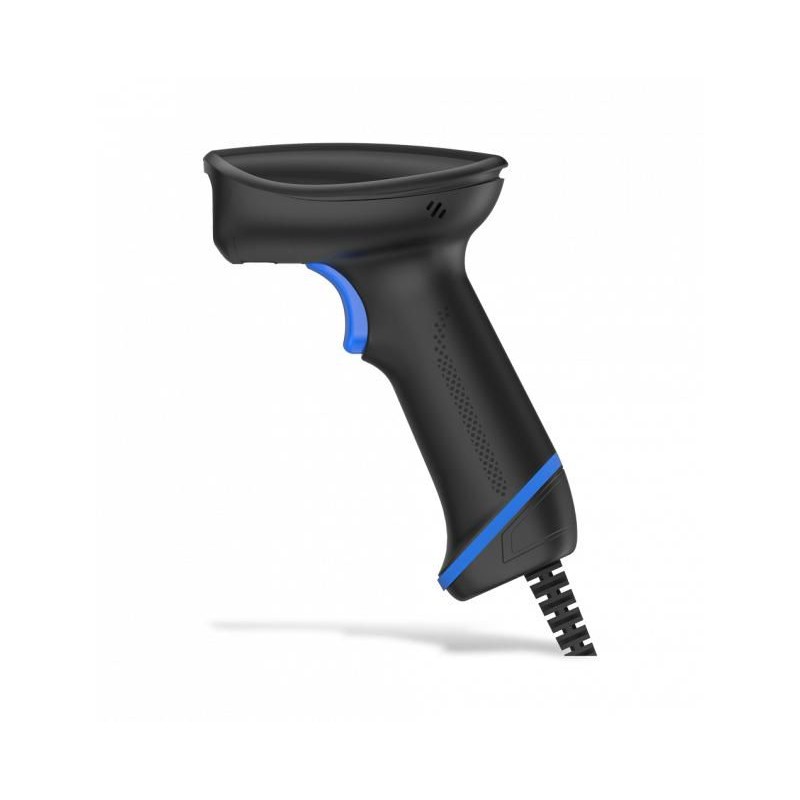

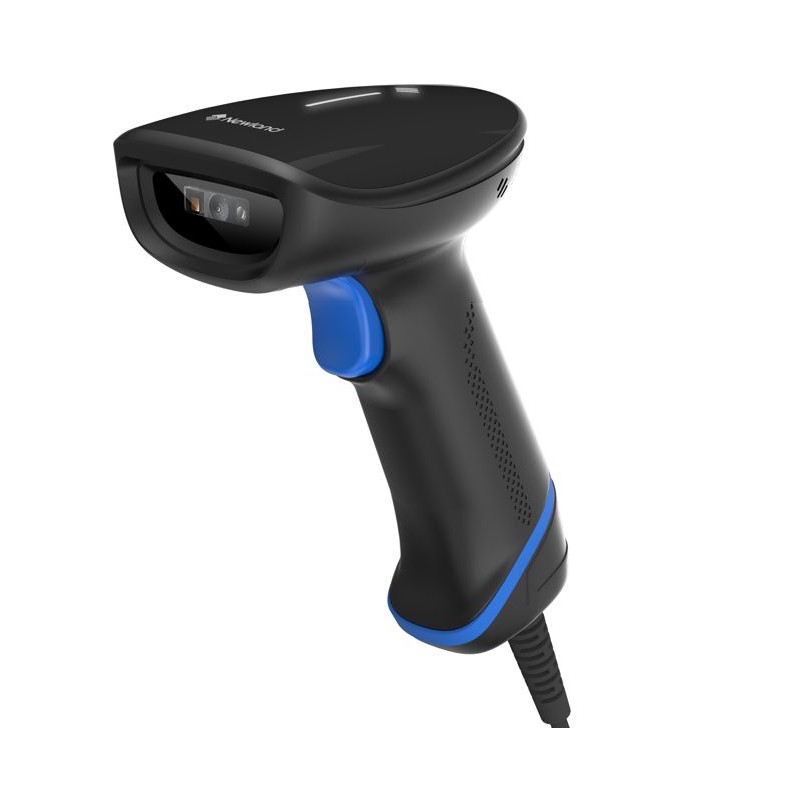

The Newland HR23 Dorada (corded version) barcode scanner is designed for scanning 1D and 2D barcodes, including high-density, damaged, or distorted codes. The device uses Newland’s advanced decoding technology and combines ergonomic and aesthetic design for comfortable extended use. It includes a smart adjustable stand NLS-STD23-33-SA and a 3.5 m coiled USB cable (CBL030UA) with autosense. The IP52 rating provides protection against dust and water splashes.

Scanner type: Handheld 1D/2D
2D barcodes supported: Aztec, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
1D barcodes supported: AIM-128, China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), Industrial 2 of 5, Interleaved 2 of 5, ISBN, ISSN, ITF-14, ITF-6, Matrix 2 of 5, MSI-Plessey, Plessey, Standard 2 of 5, UPC-A, UPC-E
Sensor: CMOS, 640 x 480 px
Pitch reading angle: 0° - 60°
Tilt reading angle: 0° - 360°
Connectivity: USB 2.0
Power supply: 5 V, 190 mA
Protection: IP52
Smart adjustable stand included: NLS-STD23-33-SA
Coiled USB cable included: 3.5 m
Net weight: 0.137 kg
Dimensions: 9.5 x 16.1 x 6.8 cm (H x D x W)
Color: Black
LED indicators: Yes
Buzzer: Yes
Certifications: IEC62471
