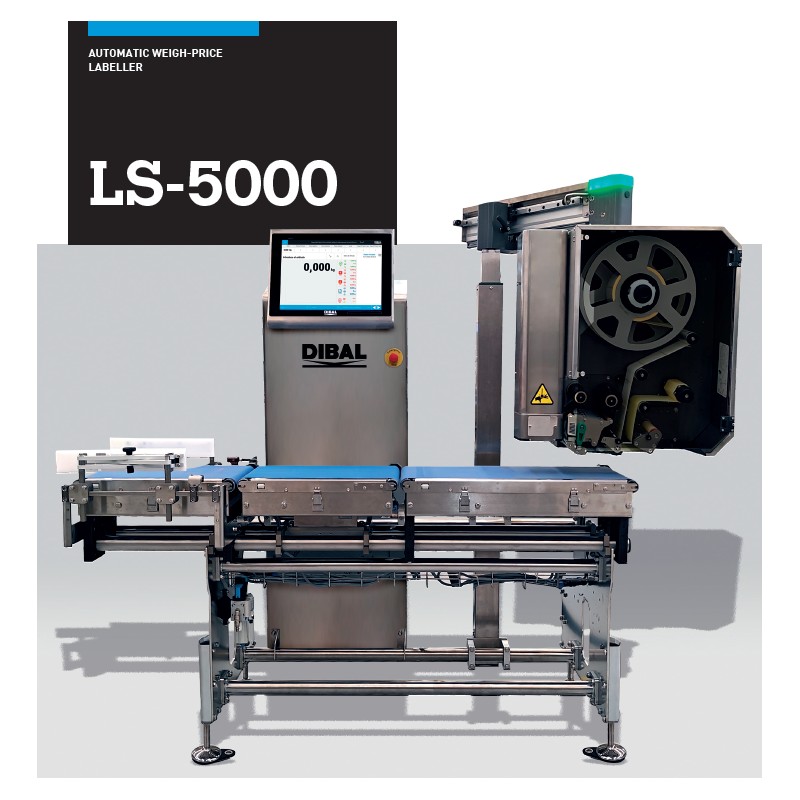

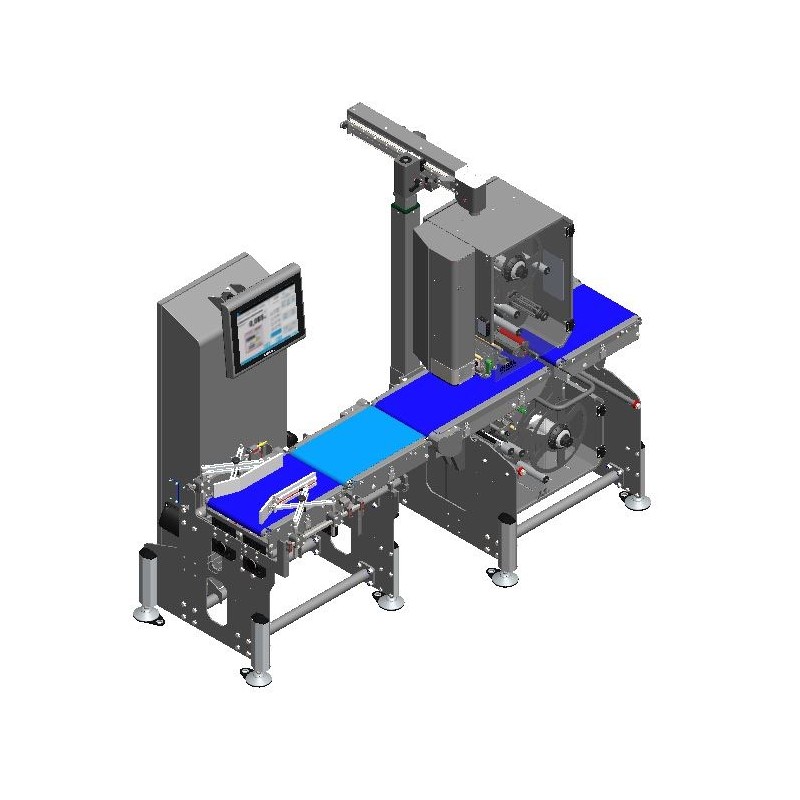

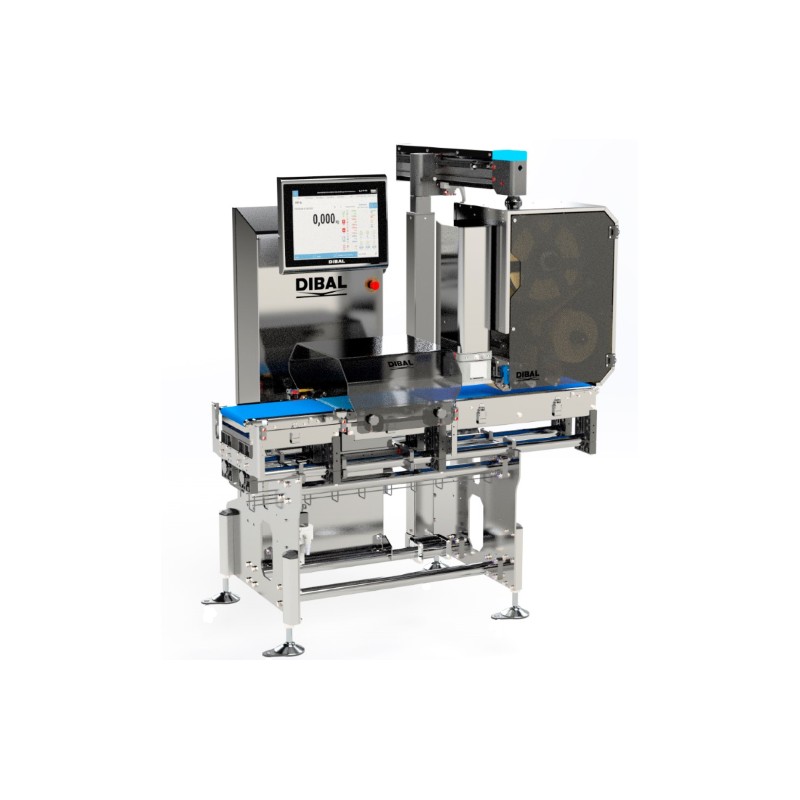

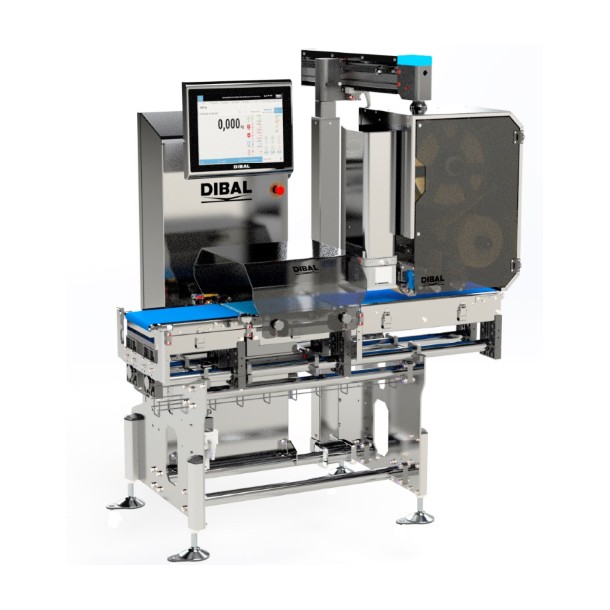

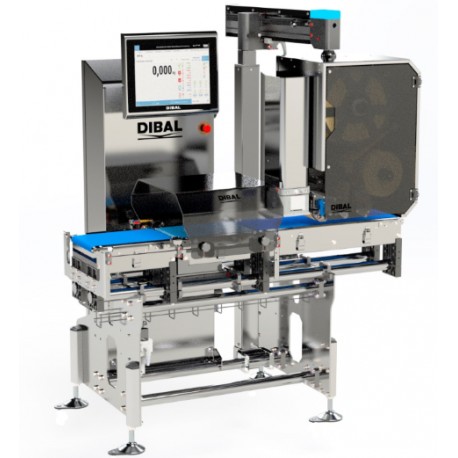

The LS-5000 is an industrial equipment designed for automatic weighing and labeling of products in continuous flow. Designed for high-volume production lines, the system contributes to optimizing productivity and reducing losses, while maintaining process accuracy and quality.

The LS-5000 range has a modular structure and can be configured according to the type of product, line speed, weight, dimensions and type of label used. The system allows the integration of multiple print heads and different types of conveyors, including hygienic or V-belts, suitable for spherical or unstable products.

Through its flexible architecture and connectivity options, the LS-5000 can be integrated into existing production systems, offering the possibility of real-time data control and monitoring, including remote access via the integrated web server.

Key Features:

• Dynamic or static weighing, with speeds up to 200 products/min

• Automatic labeling: top, bottom, side, or C-wrap

• Multiple label application systems: pneumatic piston, rotary applicator, air jet system

• Configurable with 1 to 4 print heads (simultaneously, sequentially, or as backup)

• Advanced connectivity: Ethernet, USB, RS-232

• Intuitive interface: 15" TFT touchscreen

• MID certification for approved equipment

Technical Specifications:

Weights and accuracy (depending on belt size):

• 1.5 kg / 0.5 g

• 3 kg / 1 g

• 6 kg / 2 g

• 15 kg / 5 g

• Other ranges available on request

Labels:

• Dimensions: 40x40 mm up to 120x102 mm

• Print type: direct thermal or thermal transfer with ribbon

• Print resolution: 8 or 12 dots/mm

• Print speed: up to 300 mm/s

Construction and design:

• Stainless steel AISI 304L and anodized aluminum structure

• FDA-approved belts: standard, hygienic, super-grip

• Customizable conveyors for special products (e.g., melons, lettuce)

Operational Benefits:

• Fully configurable according to client needs and products

• Increased productivity: no production line downtime

• Maximum flexibility: adaptable to any industrial process

• Cost reduction: automatic rejection of non-compliant products

• Complete traceability: EAN, QR, GS1 barcodes, etc.

• Ease of use and maintenance

Pricing:
The price of a DIBAL LS-5000 system varies depending on configuration and selected options, ranging from €50,000 to €95,000.
