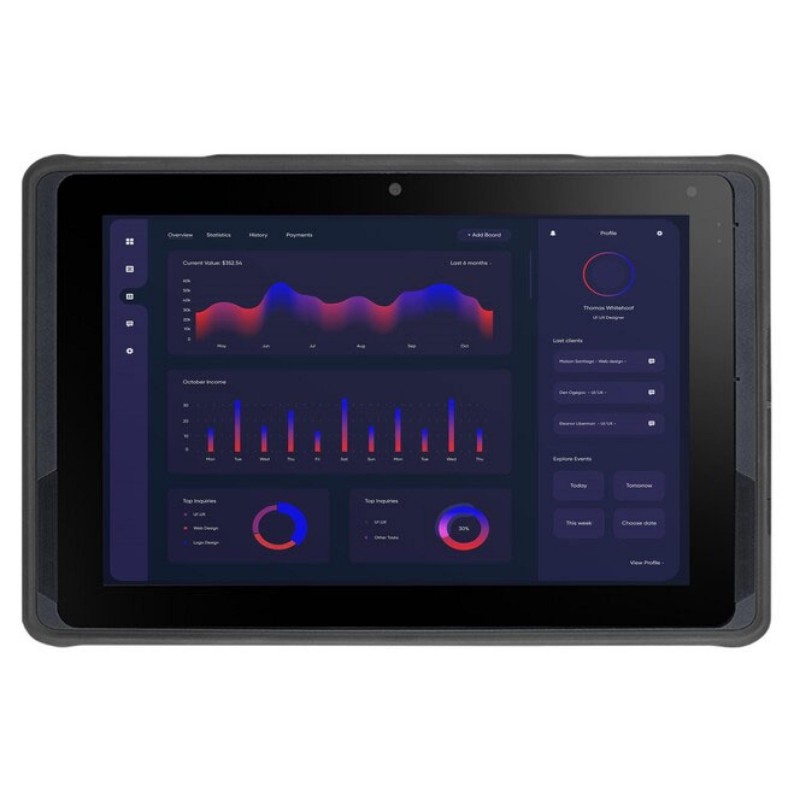

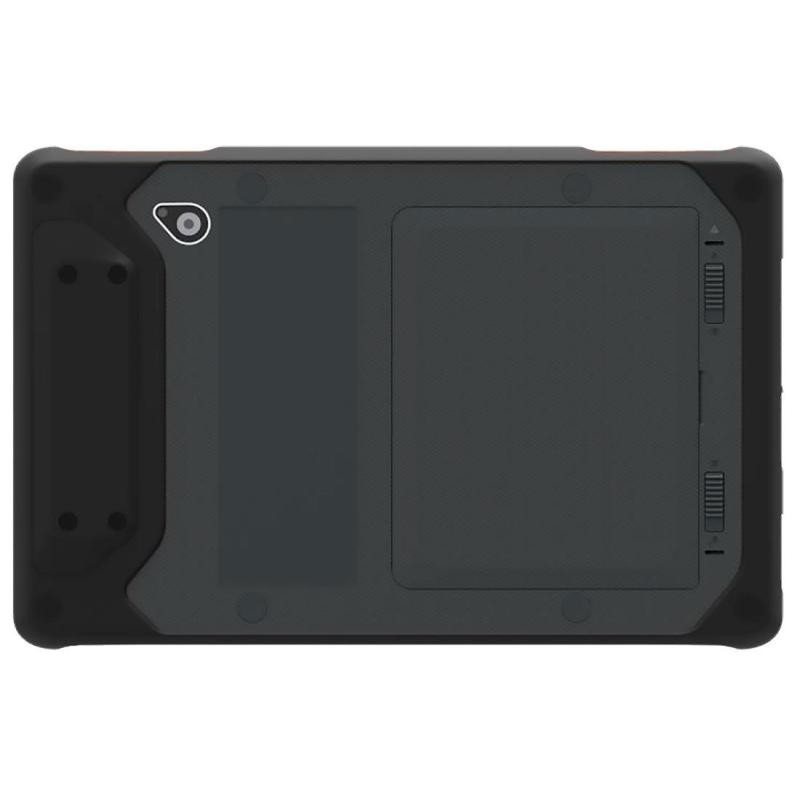

Industrial Tablet PC AIM-68S-201000 is designed for use in environments such as manufacturing, warehousing and retail. The device features IP65-rated protection against dust and water and supports mobile operation through Wi-Fi and Bluetooth connectivity. The tablet can be integrated with an optional 1D/2D barcode scanner and additional peripherals through dedicated connectors. It includes a 10.1" capacitive touchscreen display, front and rear cameras, integrated battery and Windows 11 IoT Enterprise operating system.

Technical specifications:

• Model: AIM-68S-201000
• Product type: Industrial Tablet PC
• Operating system: Windows 11 IoT Enterprise
• Processor: Intel N200 Quad Core, up to 3.70 GHz
• RAM: 8 GB LPDDR5
• Storage: 128 GB M.2 NVMe SSD
• Security: TPM 2.0

Display

• Screen size: 10.1" / 25.7 cm
• Display type: FHD LCD
• Resolution: 1920 x 1200 px (WUXGA)
• Brightness: 380 cd/m²
• Touchscreen: Projected Capacitive, 10-point multi-touch
• Screen protection: Corning Gorilla Glass 3

Connectivity

• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: 5.3
• NFC: 13.56 MHz, compatible with ISO15693, ISO14443A/B, FeliCa

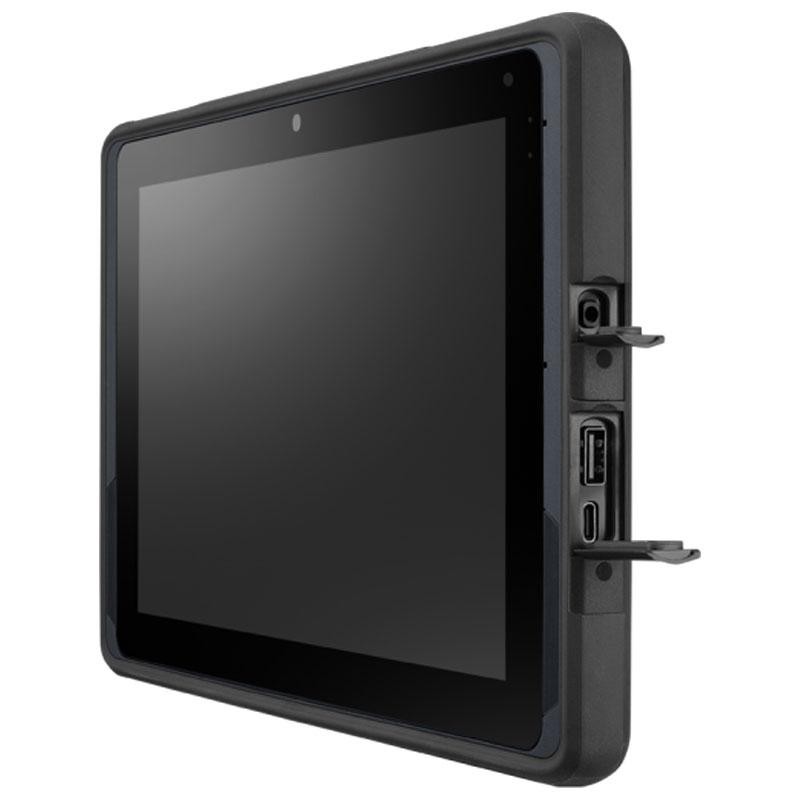

Ports and interfaces

• 1 x USB 3.1 Type-C for charging and DisplayPort
• 1 x USB 3.1 Type-A
• 1 x 14-pin pogo extension connector
• 1 x 16-pin pogo docking connector
• 1 x audio combo jack

Audio and cameras

• Speakers: 2 x internal 2 W speakers
• Front camera: 5 MP
• Rear camera: 13 MP autofocus with LED flash

Sensors

• Ambient light sensor
• E-Compass
• G-sensor
• Gyroscope

Barcode scanner

• Optional integrated 1D/2D barcode scanner

Control buttons

• Power button
• 2 x volume keys
• 1 x programmable function key

Power and battery

• USB Type-C input: 20V / 3.25A
• Docking input: 12V / 2A
• Smart battery 11.55V, 4010/4020 mAh, 46.31 Wh
• Battery life: up to 5.5 hours depending on usage
• Charging time: less than 3 hours
• Power cable: ordered separately

Protection and durability

• Protection class: IP65
• Shock resistance: IEC60068-2-27
• Vibration resistance: IEC60068-2-64
• Drop test: up to 120 cm

Operating conditions

• Operating temperature: -10 °C to 50 °C
• Storage temperature: -20 °C to 60 °C
• Operating humidity: 95% non-condensing

Physical characteristics

• Dimensions: 280 x 18.3 x 180.1 mm
• Weight: 1.1 kg
• Color: Dark Grey

Certifications: FCC, CE, CB, UL, TELEC, VCCI, BSMI, NCC, CCC, SRRC, RCM, IC

Warranty: 24 months
