First wireless battery free laser scanner. Up to 100 wireless scans for a 35 second charge.

Wireless

Radio/Range 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1; Class 2: 10m (33’) line of sight

Data Rate (Transmission Rate) Up to 3 Mbps

Number of Scans At least 100 scans, with one scan every second At least 35 scans, with one scan every 6 seconds

Expected Full Charge Time Less than 35 seconds via wall power adapter Less than 90 seconds via USB power

Use Time per Full Charge 2-6 minutes (depending on use)

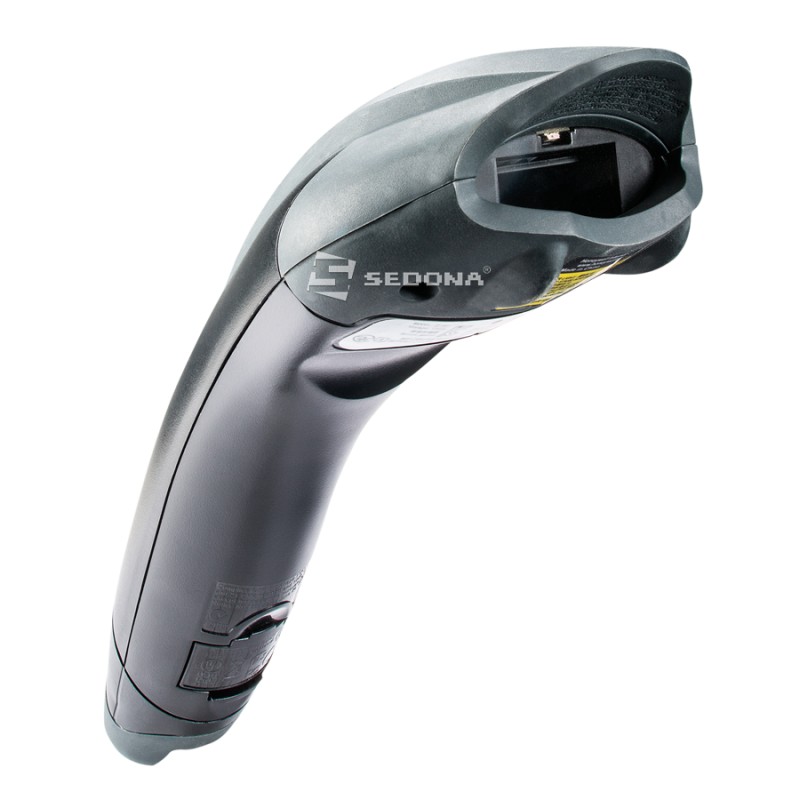

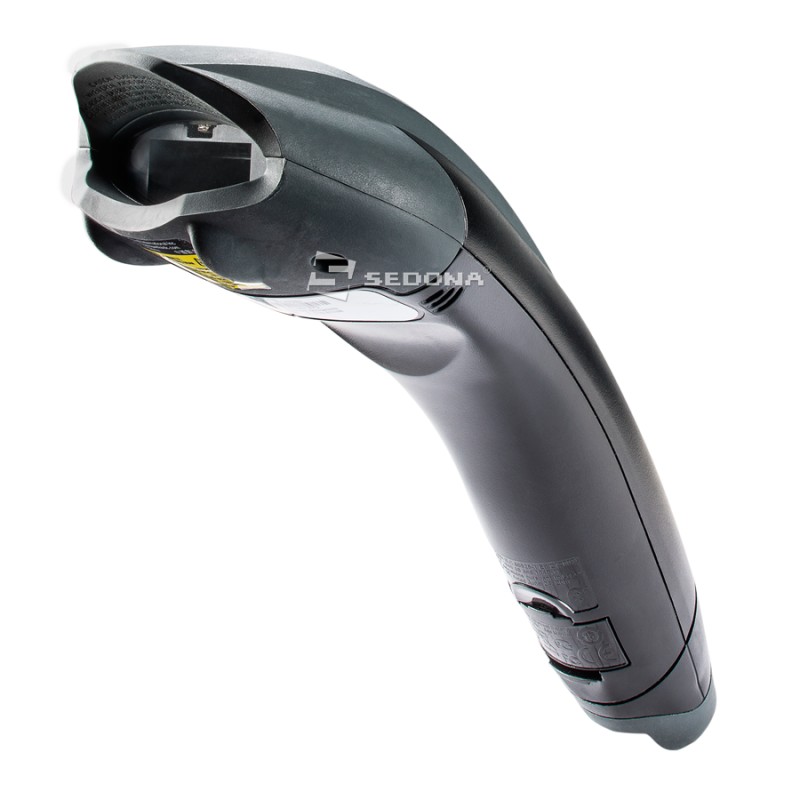

Mechanical/Electrical - Scanner (Voyager 1202g-bf)

Dimensions 180 mm x 66 mm x 92 mm (7.1˝ x 2.6˝ x 3.6˝)

Weight 160 g (5.6 oz)

Operating Power Scanning: 180mA @ 4.0V

Non-Charging Power Standby: 40mA at 4.0V

Host System Interfaces N/A

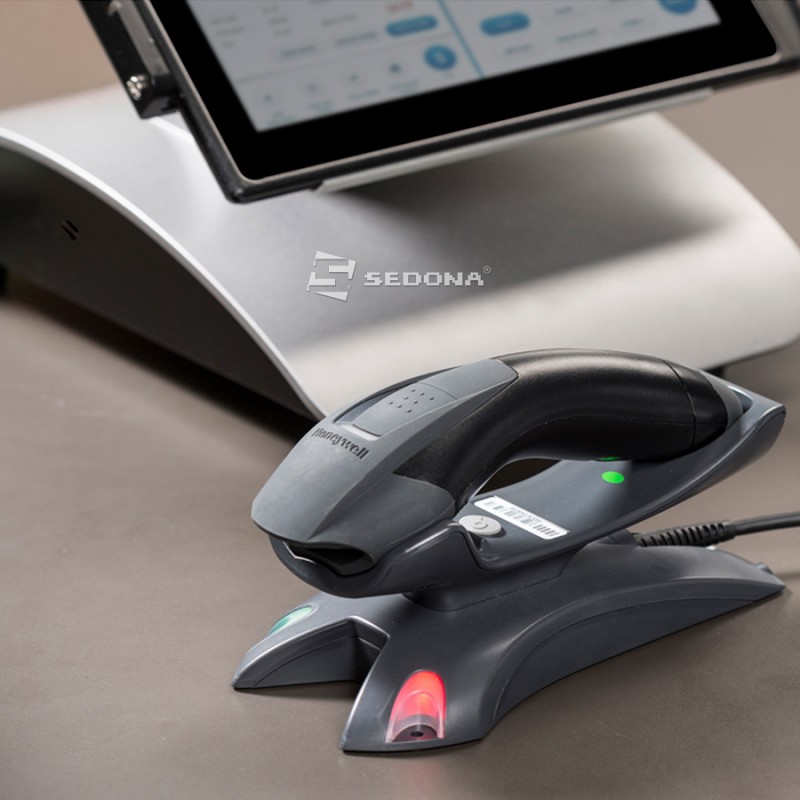

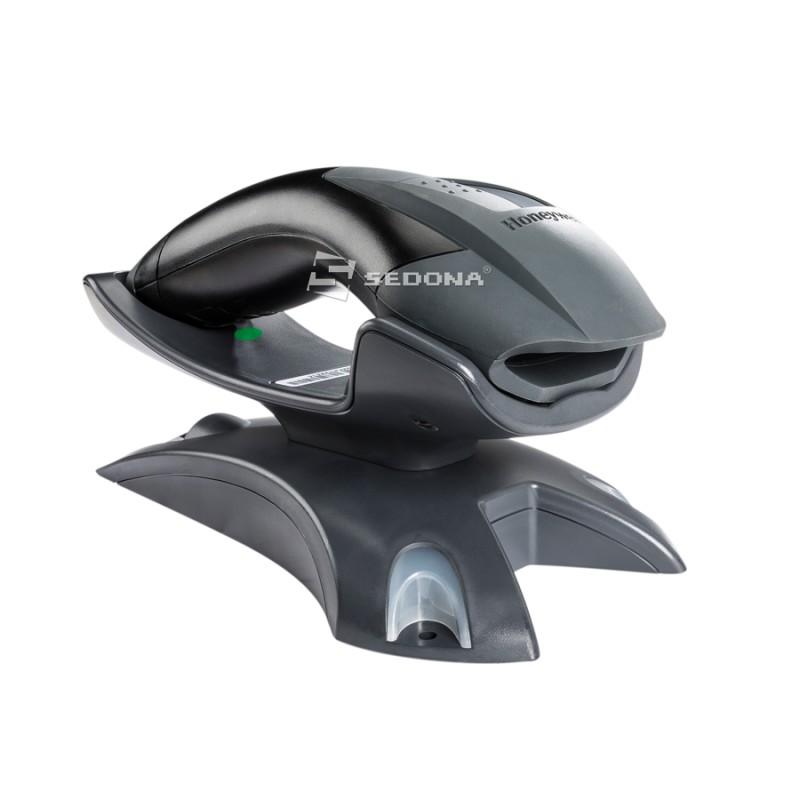

Mechanical/Electrical Charge & Communication Base

Dimensions  200 mm x 67 mm x 97 mm (7.9˝ x 2.6˝ x 3.8˝)

Weight 216 g (7.6 oz)

Operating Power Scanning: Charging:

                                                  5W: (1A @ 5V peak) with AC wall supply

                                                  2.5W: (0.5A @ 5V peak) with USB Non-Charging

Power Standby: Base with Scanner: 1W (0.2A @ 5V)

                           Base without Scanner : 0.5W (0.1A @ 5V)

                           Suspend Mode: 0.0125W (0.0025A @ 5V)

Host System Interfaces USB, RS232, RS485, KBW
