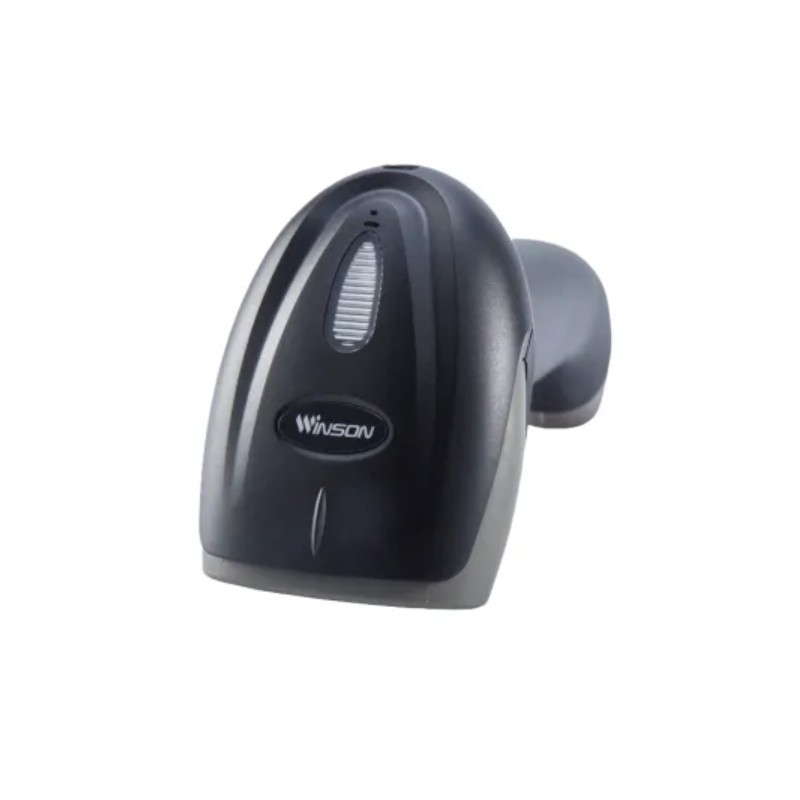

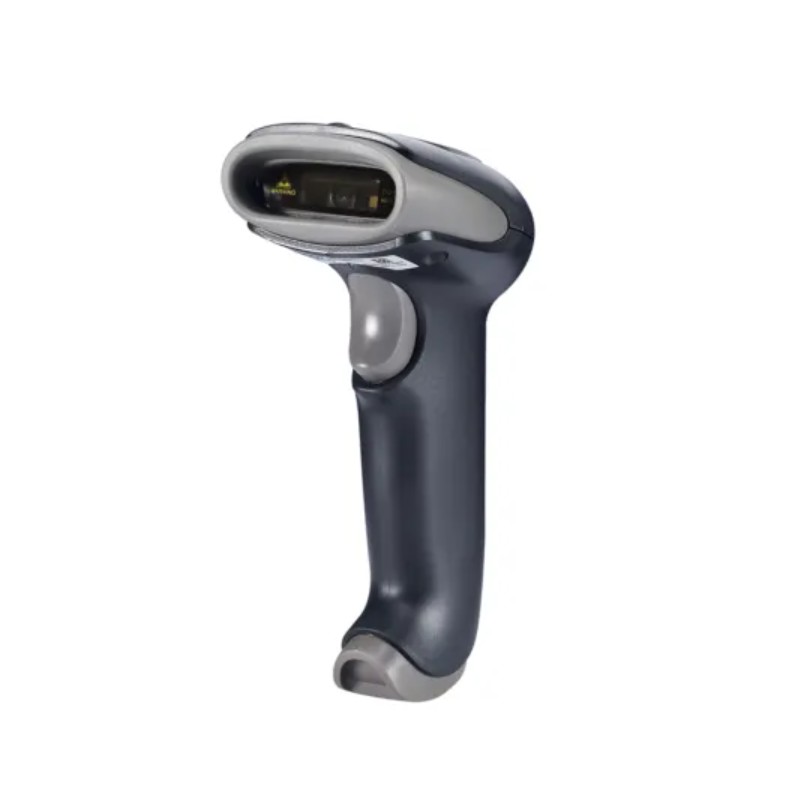

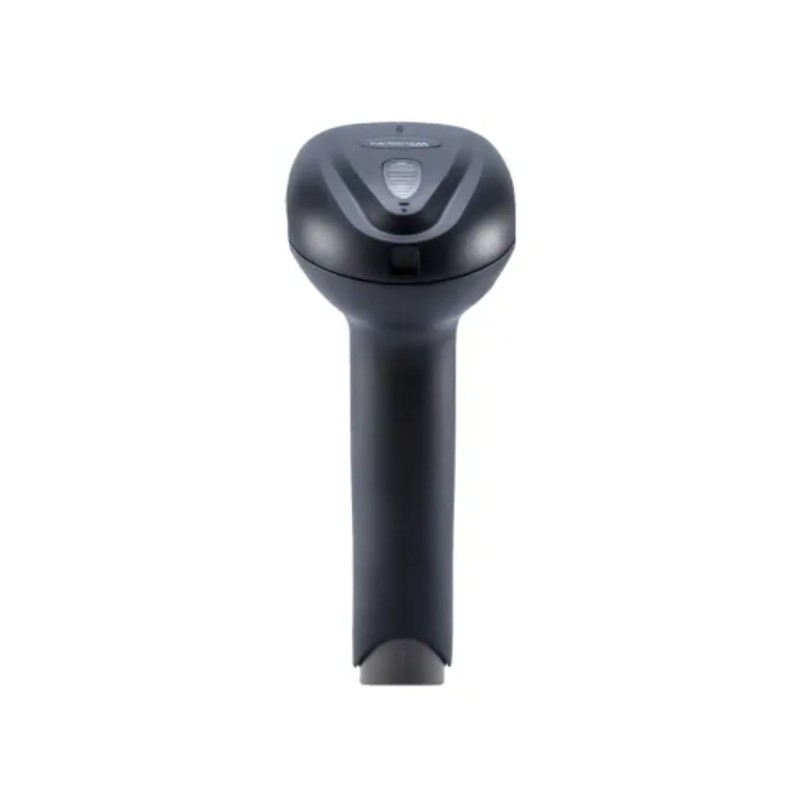

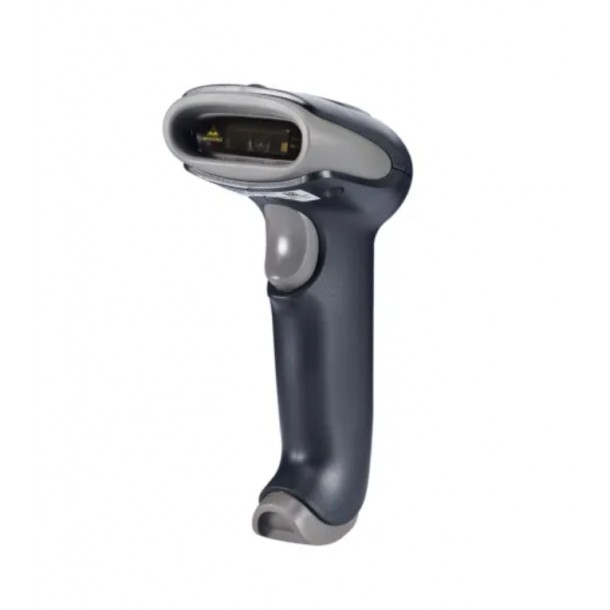

The Winson WNI-6273/V barcode scanner is designed for use in warehouses, logistics, retail and inventory applications. The scanner features wireless transmission up to 100 meters in open areas and offline storage for up to 100,000 barcodes. Equipped with a high-performance CMOS sensor and 70 FPS scanning speed, the device supports accurate reading of 1D and 2D barcodes, including low-quality or damaged codes. The 2600mAh battery provides up to 11 hours of continuous operation.

Technical Specifications:

• Model: Winson WNI-6273/V
• Product type: 1D / 2D barcode scanner
• Connection mode: Wireless RF433 + Wired multi-mode

Operating modes:

• Realtime mode
• Inventory mode
• Cache mode
• Wireless transmission range: up to 100 m (open area)
• Battery capacity: 2600mAh
• Battery life: up to 11 hours continuous use
• Offline storage: up to 100,000 barcodes

Scanning Performance

• Sensor: CMOS array
• Sensor resolution: 640 x 480
• Scanning speed: 70 FPS

Scanning precision:

• 1D ≥ 3mil
• 2D ≥ 6mil
• Low-quality barcode support: ≥20% PCS

Scanning Angles

• Tilt: 360°
• Pitch: ±65°
• Skew: ±65°

Illumination and Aiming

• White LED illumination
• Red LED aiming

Interfaces

• RS232
• USB HID
• USB VCP

Additional Features

• Custom data output support for POS and software integration
• LED indicator and beeper for scan confirmation
• Compatible with a wide range of 1D and 2D barcodes

Operating Environment

• Operating temperature: -20°C to 50°C

Warranty: 1 year
