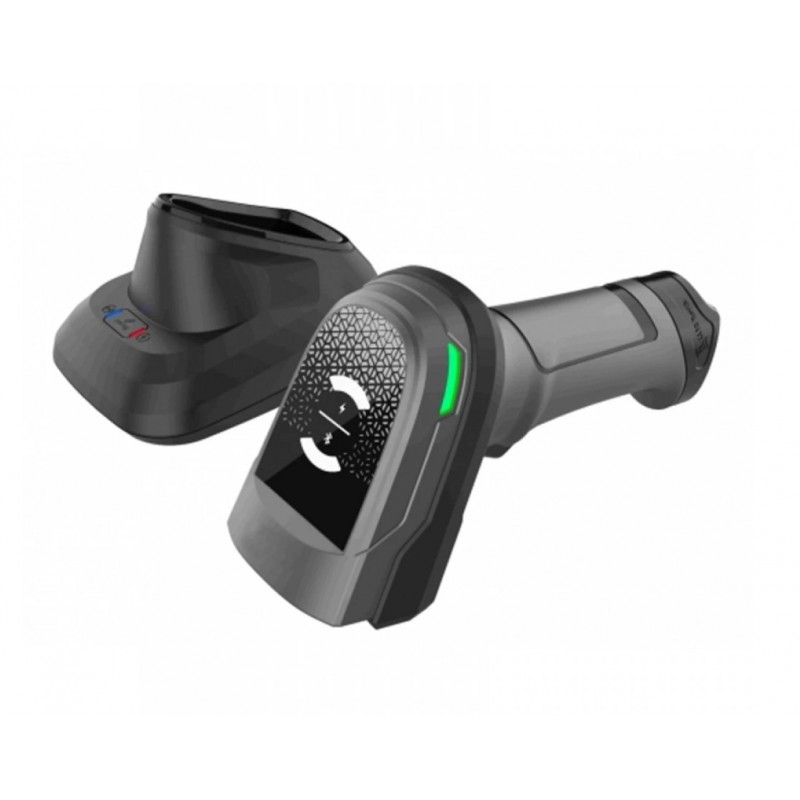

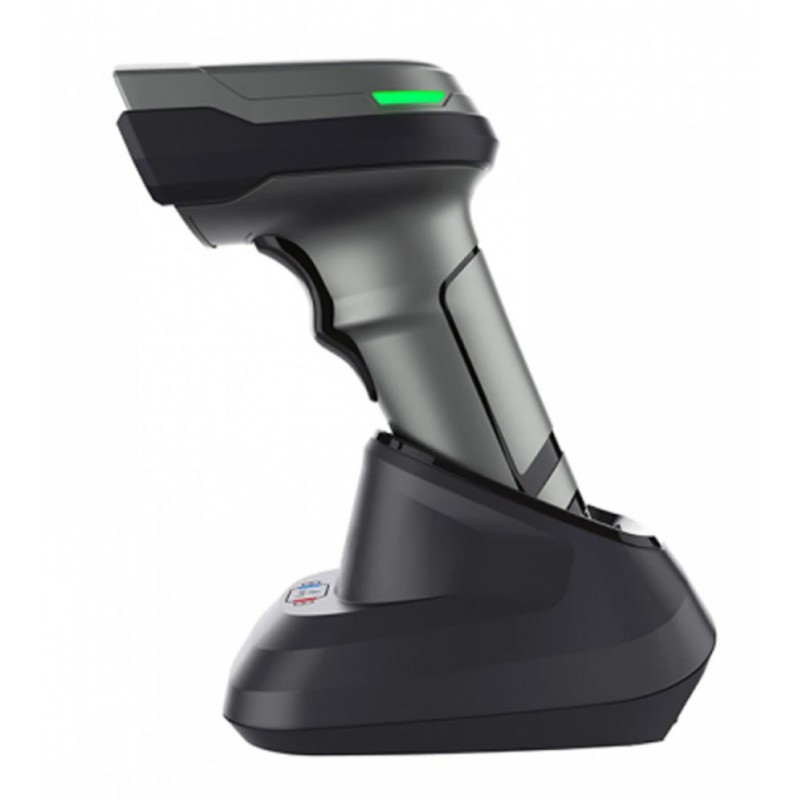

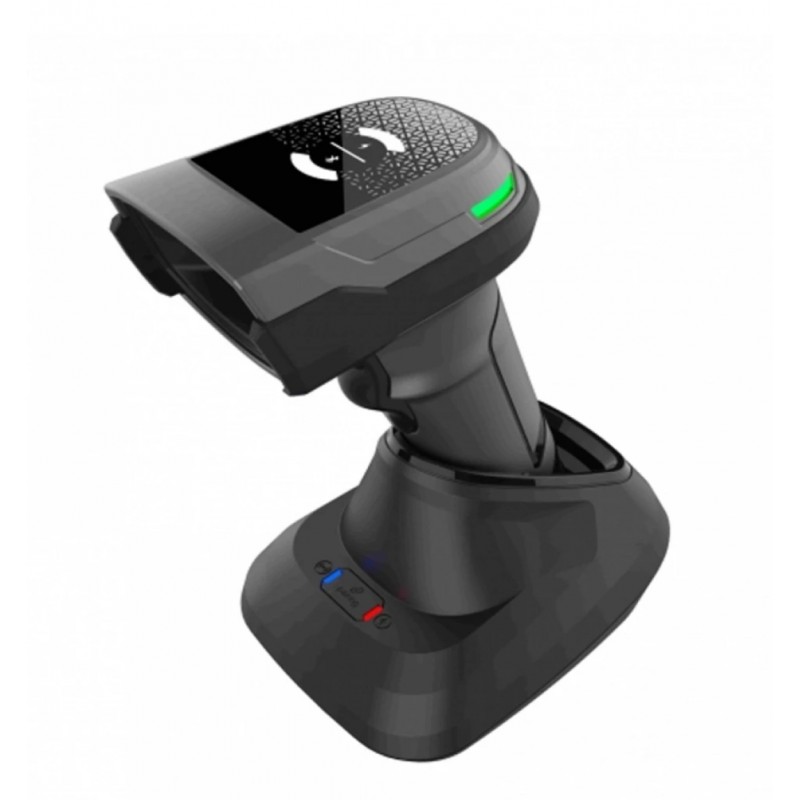

The EasyGo25CI wireless industrial 2D barcode scanner features an acrylic housing and a touch charging base. It can be used in retail stores, POS environments, supermarkets, warehouses, libraries, pharmacies, and logistics operations.

EasyGo25CI is an industrial 2D scanner with Bluetooth 2.4G connectivity and a multifunctional charging base. Pairing is performed with a single click, without the need for configuration codes. The contact charging system allows the scanner to be placed on the base for recharging.

The wireless transmission range can reach up to 100 meters in open areas. The scanner supports reading 1D and 2D barcodes, including DM, PDF417, Data Matrix, and QR Codes.

Technical Specifications

• Scanner Type: Wireless
• Scanning Technology: CMOS Image Sensor

Supported Symbologies

• 1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post
• 2D: Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN

Wireless Communication

• Bluetooth 2.4 GHz
• Dual-mode Bluetooth
• Transmission range: up to 100 m in open areas

Interfaces

• USB

Power Supply

• Input Voltage: DC 5V ±5%
• 2200 mAh Li-Ion rechargeable battery
• Battery operating time: up to 7 hours
• Charging time: approximately 3 hours

General Features

• Drop resistance: withstands multiple drops from up to 1.5 m onto concrete
• Operating temperature: -20°C to +50°C
• Humidity: 5% to 95% RH (non-condensing)
• Dimensions: 83.5 x 65.7 x 174.8 mm
