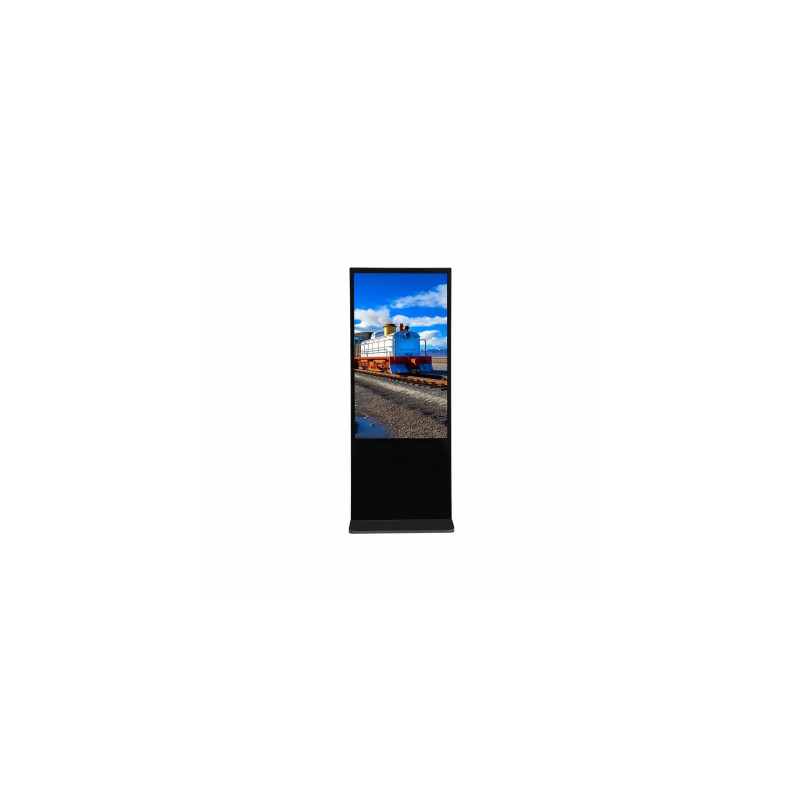

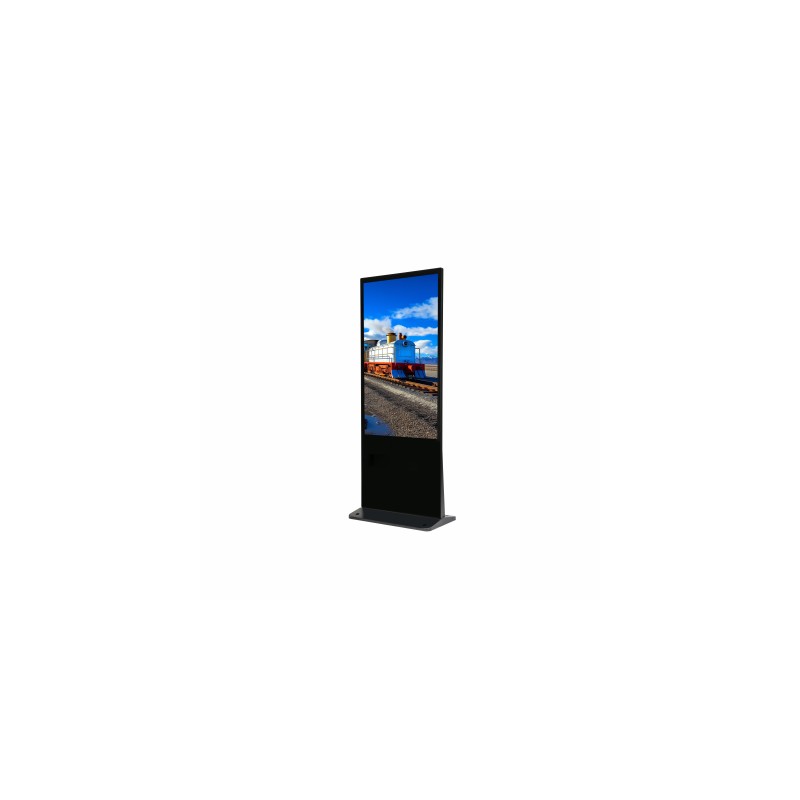

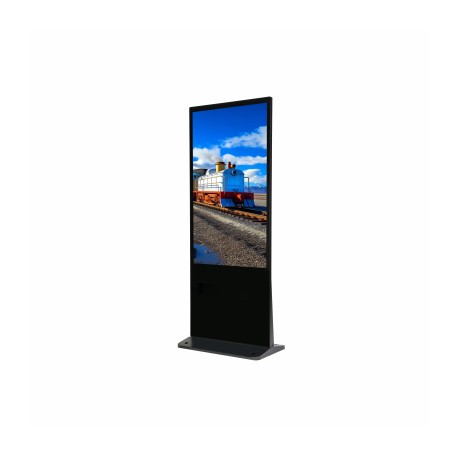

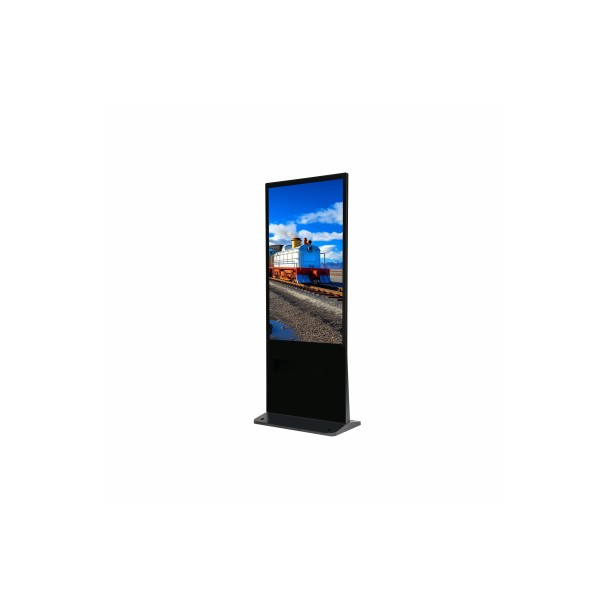

Designed with an industrial-grade panel.

Includes a mainstream quad-core processor, Android operating system, and supports decoding up to 4K resolution.

Plays and broadcasts programs in multiple modes.

With intelligent split-screen functionality, the layout can be freely adjusted, making it suitable for a wide range of applications.

Designed with a B/S (browser/server) architecture, the device manages programs by time and location and generates operational reports.

Supports encrypted data transmission, multi-level permission review for program publishing, and terminal password protection.

The device offers unified platform management and can be remotely controlled via the platform.

The totem is intended for outdoor use.

Specifications:

LCD Panel

• Screen Size: 55 inch

• Backlight: ELED

• LCD Technology: IPS/VA

• Aspect Ratio: 9:16

• Brightness: 320 cd/m² (typical)

• Display Colors: 10-bit (8-bit + FRC), 1.07 billion colors

• Resolution: 2160 (H) × 3840 (V)

• Viewing Angle: 178° (horizontal) / 178° (vertical)

• Response Time: 8 ms

• Surface Treatment: Haze 1%

Built-in System

• Operating System: Android 11.0

• CPU: Quad-core A55, 1.92 GHz

• RAM: 4 GB

• ROM: 32 GB

Video Decoding Support

• H.265 HEVC MP-10@L5.1 up to 2160p@60 fps

• H.264 AVC HP@L5.1 up to 2160p@30 fps

• VP9 Profile 2 up to 2160p@60 fps

• H.264 MVC up to 1080p@30 fps

• MPEG-4 ASP@L5 up to 1080p@30 fps

• WMV/VC-1 SP/MP/AP up to 1080p@30 fps

Media Compression

• Audio Compression: MPEG-3, WMA, WAV

• Video Compression: MPEG-4, H.264 AVC/MVC, H.265 HEVC

• Video Formats: mp4, avi, mov, mkv, wmv

Connectivity

• Network Port: 1 × RJ–45 10/100/1,000 Mbps (adaptive Ethernet)

• Wi-Fi: Optional (external Wi-Fi module)

• Data Ports:

  • 1 × USB 2.0 (Type A)

  • 1 × USB 3.0 (Type A)

  • 1 × TF card slot, up to 128 GB

• Video Input: 1 × HDMI 2.1 (3840 × 2160@60 Hz)

• Audio Output: 1 × 3.5 mm jack

• IR Receiver: Yes

Audio

• Built-in Speakers: 2 × 5 W

Touchscreen

• Touch Technology: Capacitive

• Response Time: ≤8 ms

• Touch Points: 10 points

• Note: This is a non-touchscreen display

Power

• Power Supply: 100–240 VAC, 50/60 Hz

• Power Consumption: 80 W (typical), 90 W (maximum)

• Standby Power Consumption: ≤0.5 W

Environment

• Operating Temperature: 0 °C to +40 °C (avoid direct sunlight)

• Storage Temperature: –20 °C to +60 °C

• Operating Humidity: 10%–85% RH (non-condensing)

• Storage Humidity: 10%–90% RH (non-condensing)

Material and Color

• Casing Material: Metal

• Frame/Back Color: Black

Product Dimensions

• Without bracket: 1850.0 mm × 743.6 mm × 92.3 mm
  (72.8" × 29.28" × 3.63")

• With bracket: 1900.0 mm × 750.0 mm × 460.0 mm
  (74.80" × 29.53" × 18.11")

• Frame Size: 40.5 mm / 31.1 mm / 31.1 mm
  (1.6" / 1.2" / 1.2") (Top/Left/Right)

• Package Dimensions: 2020 mm × 200 mm × 915 mm
  (79.5" × 7.9" × 36.0")

Weight

• Net Weight: 66 kg (145.51 lb)

• Gross Weight: 73 kg (160.94 lb)

Installation & Display

• Mounting: Vertical

• Display Mode: Portrait

Accessories Included:

Bracket, user manual, power cord, legal and regulatory information, energy label, remote control

Certifications:

• CE EMC

• CE LVD

• CE ERP
