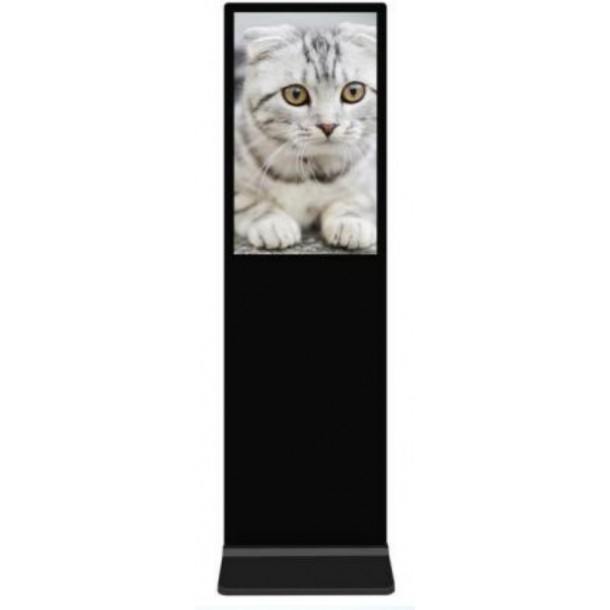

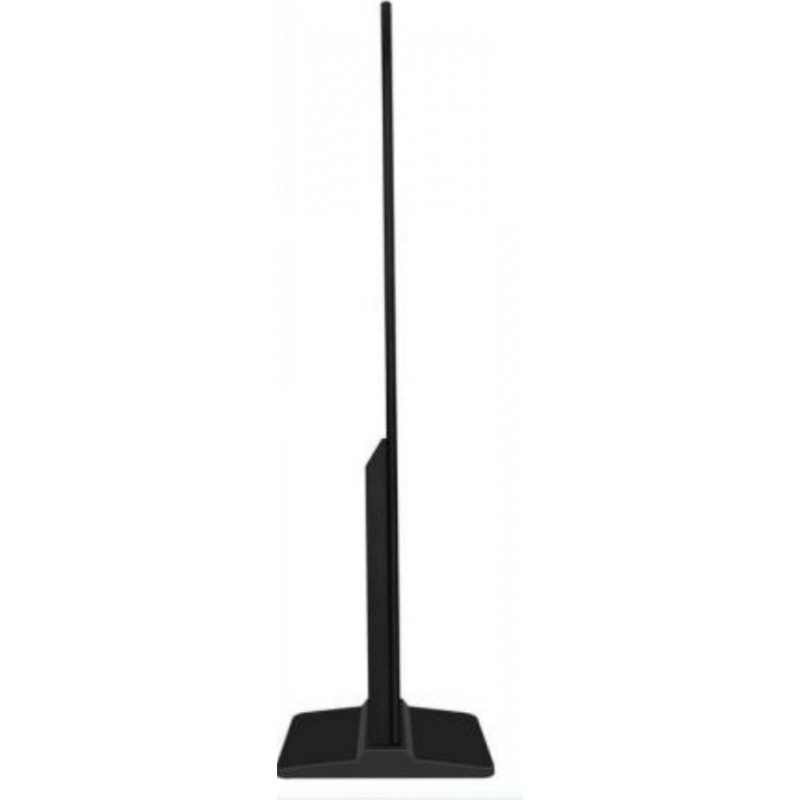

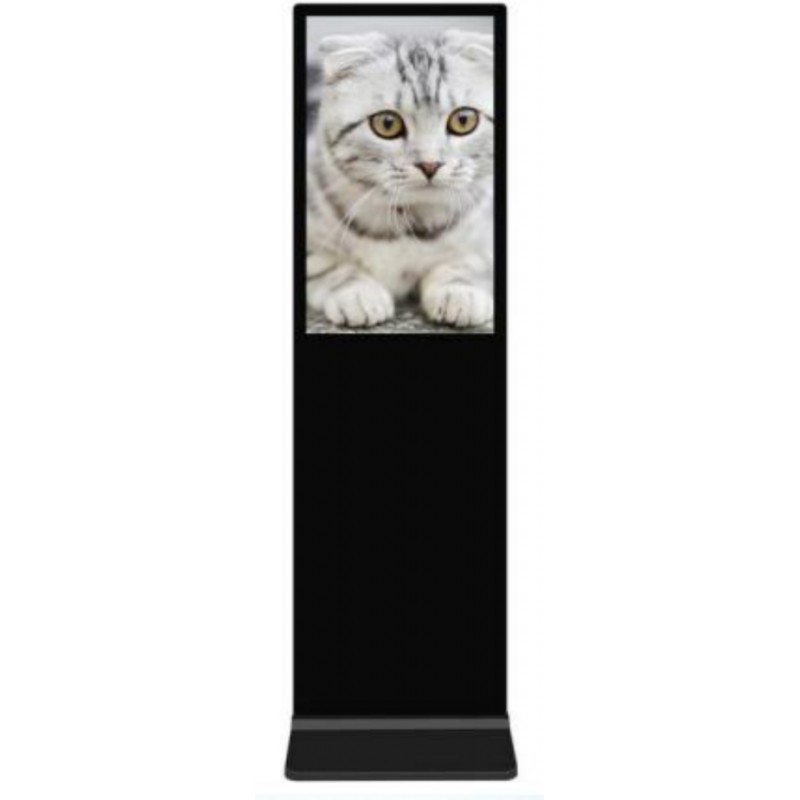

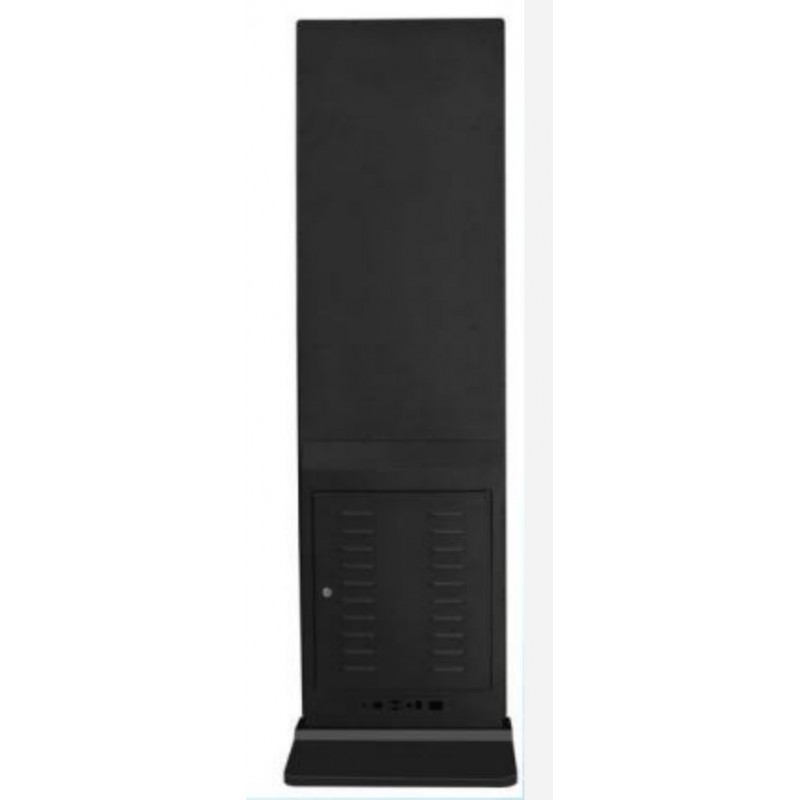

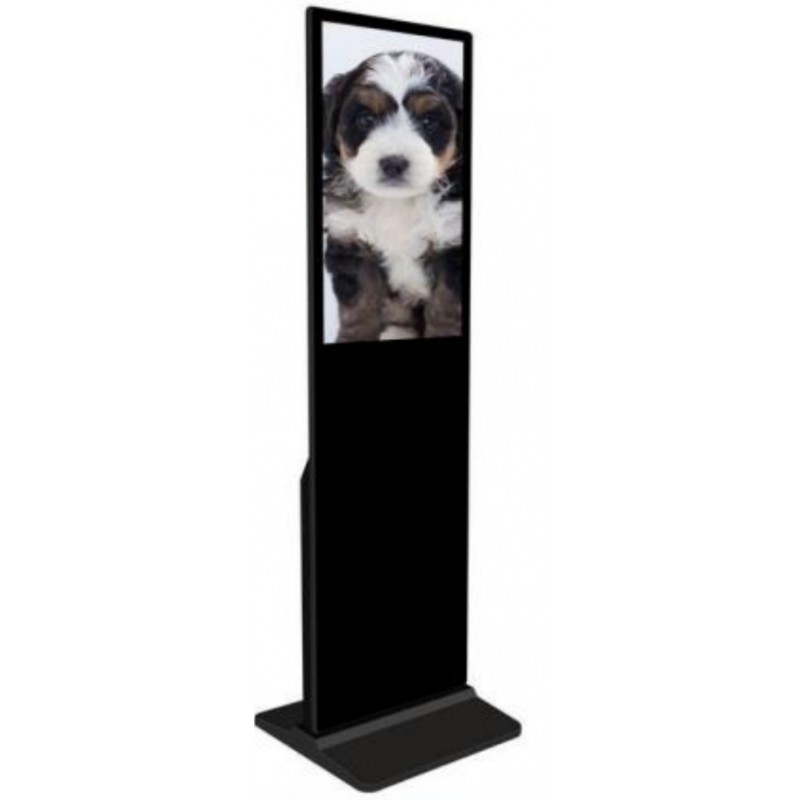

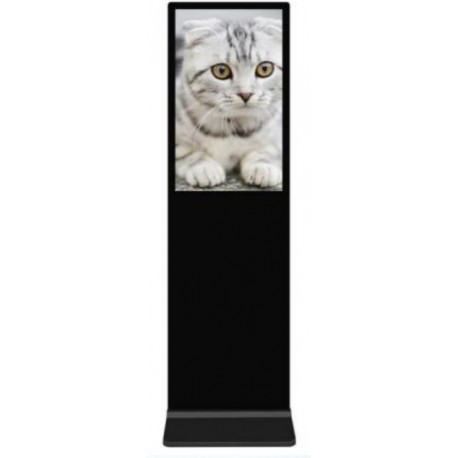

AP-55OPLAN3 is a 55-inch floor standing digital signage display without touchscreen, equipped with an LED-backlit LCD panel with 450 nits brightness. It provides Full HD 1920 × 1080 resolution, 10-bit color depth, 1300:1 contrast ratio, and wide 178° viewing angles, ensuring clear and stable image performance.

The unit integrates the Android RK3568 board, featuring a quad-core Cortex-A55 processor at 2.0 GHz, 4 GB RAM, and 32 GB internal storage. It supports multimedia playback and is compatible with audio, video, and image formats such as MP3, WMA, AAC, MPEG, H.264, JPEG, BMP, and PNG.

The totem offers a wide range of connectivity options, including USB 2.0, USB 3.0, Type-C, RJ45, and HDMI OUT. It is equipped with WiFi 6 and Bluetooth 5.4. The metal enclosure includes two built-in speakers. The device is suitable for indoor use and is designed for digital signage applications in commercial or public spaces.

Technical Specifications

Mode No.: AP-55OPLAN3
Screen size: 55 inch
Aspect ratio: 16:9
Resolution: 1920 × (RGB) × 1080
Display area: 1209.6(H) × 680.4(V) mm
Pixel pitch: 630(H) × 630(V) um
Pixel arrangement: RGB Vertical Stripe
Display colors: 1.07B (10-bit)
Display mode: Transmission mode, Normally Black
Contrast ratio: 1300:1 (typical)
Brightness: 450 nits (typical)
Backlight: LED
Viewing angles: 178° (H) / 178° (V)
Response time: 8 ms
Surface treatment: Haze 1%, 3H, Anti-Glare Layer
Material: Metal case
Speakers: Built-in 2 speakers
Dimensions: Refer to mechanical drawing

CPU: RK3568 Cortex-A55 Quad-core 2.0 GHz
GPU: Mali-G52-2EE, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
CPU frequency: Max 2.0 GHz
RAM: 4 GB
Internal memory: 32 GB
Operating system: Android 11.0 (optional)
WiFi: WiFi 6
Ethernet: 10/100/1000 Mbps, RJ45
Bluetooth: 5.4
Interfaces: 2 × USB 2.0, 1 × USB 3.0, 1 × Type-C, 1 × RJ45, 1 × HDMI OUT, 1 × DC IN
Audio formats: MP3 / WMA / AAC etc.
Video formats: MPEG-1/2/4, H.263, H.264, RV
Photo formats: JPEG / BMP / PNG
Color: Black
Touchscreen: No (PCAP / IR optional)

Power supply: AC 100–220V 50/60Hz
Power consumption: 90W
Standby power: 3W

Operating temperature: 0–50°C
Storage temperature: –20–60°C
Operating humidity: 10–90% RH
Storage humidity: 10–90% RH
