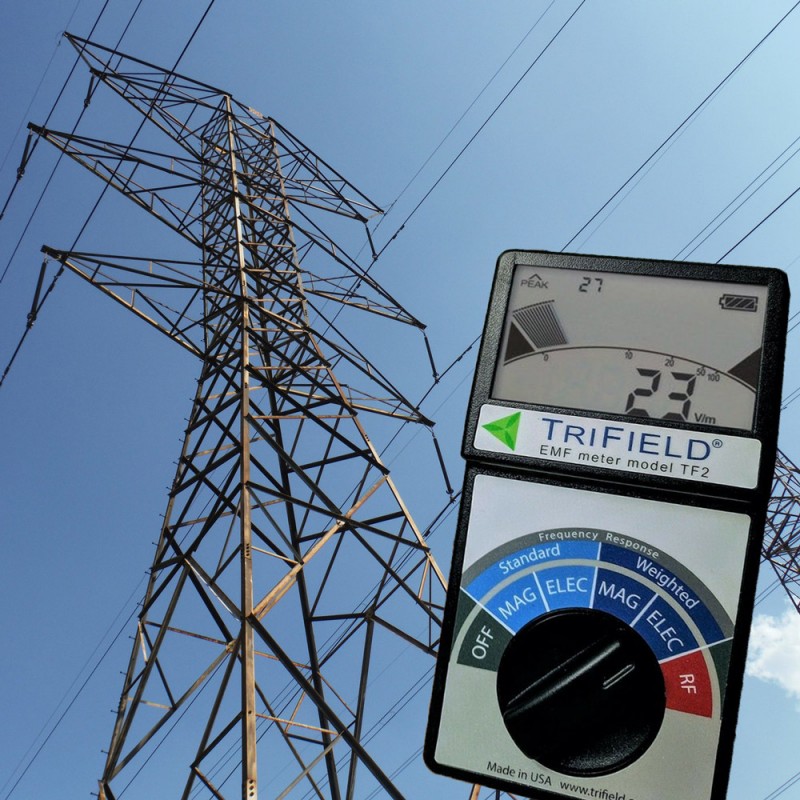

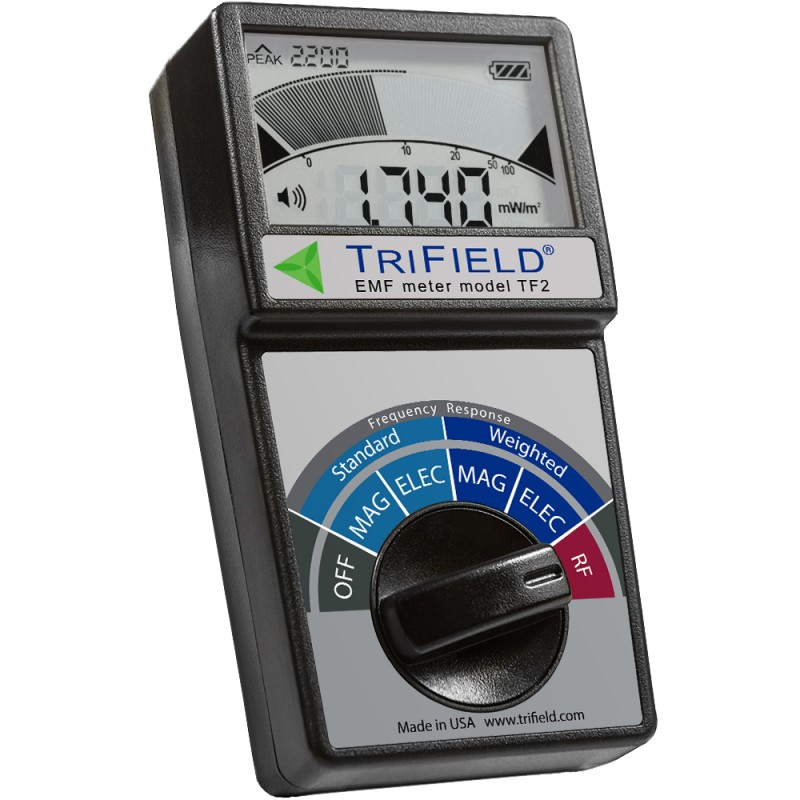

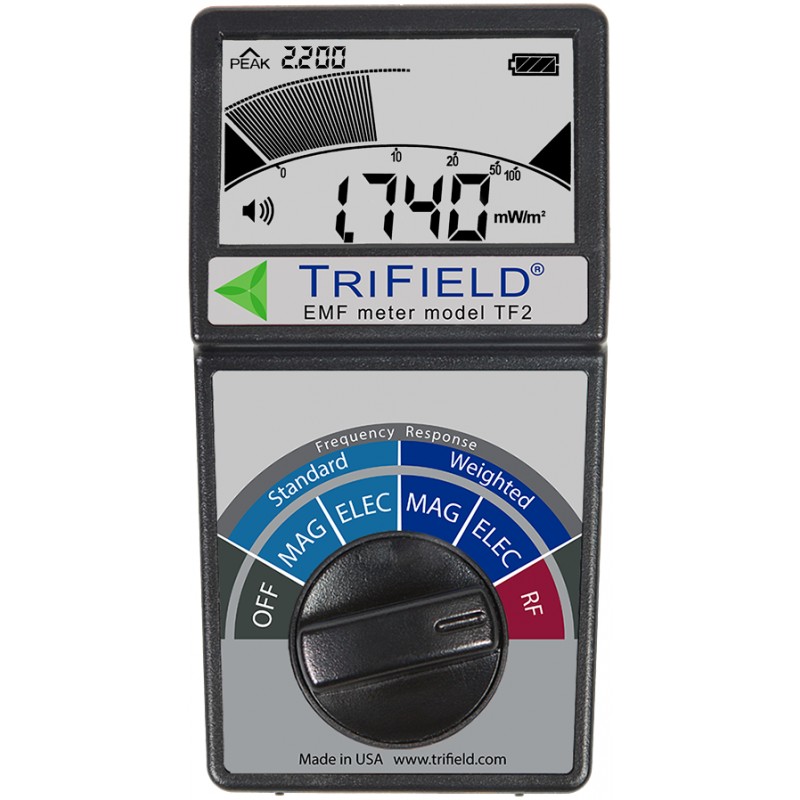

electric, magnetic, radio / microwave / 5G radiation detector - TriField TF2

The TriField EMF Meter Model TF2 is an AC gaussmeter, AC electric field meter, and radio power density meter in a single unit, that combines all the features needed for fast, accurate measurements of electromagnetic fields (EMF).

This meter reads RF and microwaves in the frequency range 20 MHz to 6 GHz. This includes most new 5G installations, but not experimental millimeter wave 5G. Only the total power level from all sources is displayed. No information regarding specific frequencies is displayed.

Features:

• Detects all three types of EMF pollution: AC magnetic, AC electric, and RF/microwave

• Special frequency weighting mode for measuring electric current from EMF in the human body

• AC Magnetic Mode covers 40 Hz – 100 kHz with range of 0.1 – 100.0 milligauss (mG)

• AC Electric Mode covers 40 Hz – 100 kHz with range of 1 – 1000 volts per meter (V/m)

• RF Mode covers 20 MHz – 6 GHz with range of 0.001 – 19.999 milliwatts per square meter (mW/m2)

• AC magnetic measurements are 3-axis, allowing for quick readings, regardless of meter orientation

• Large liquid-crystal display (LCD) for crystal clear, accurate readings

• Adjustable backlight for use in low-light environments

• Audio Indicator emits sound that helps to pinpoint EMF sources

• Peak Hold captures fast pulses, for measuring fast digital signals

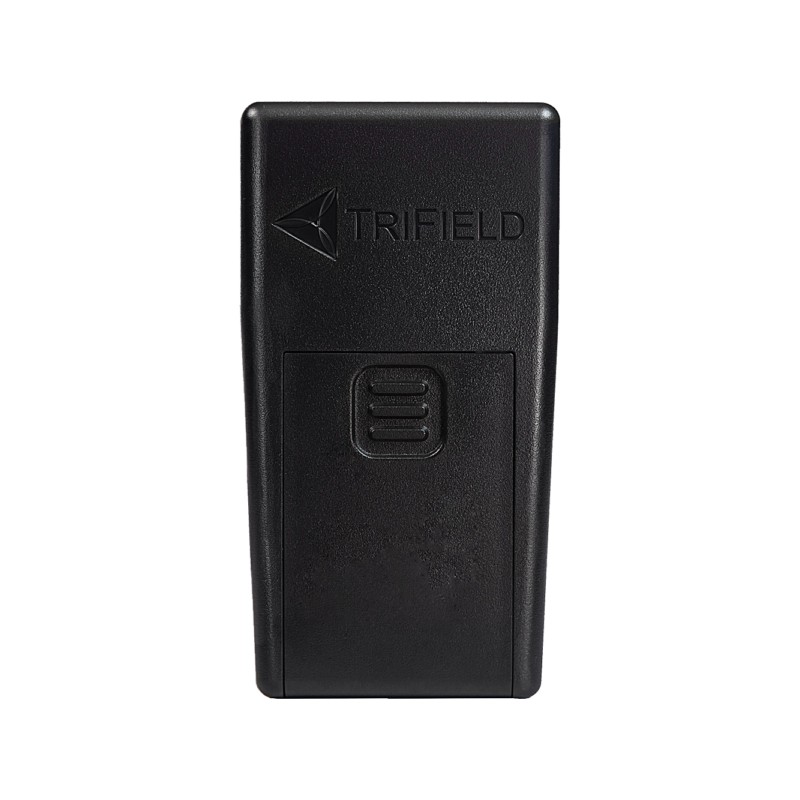

• Operates for more than 20 hours on a 9V battery, with a low battery indicator

Applications:

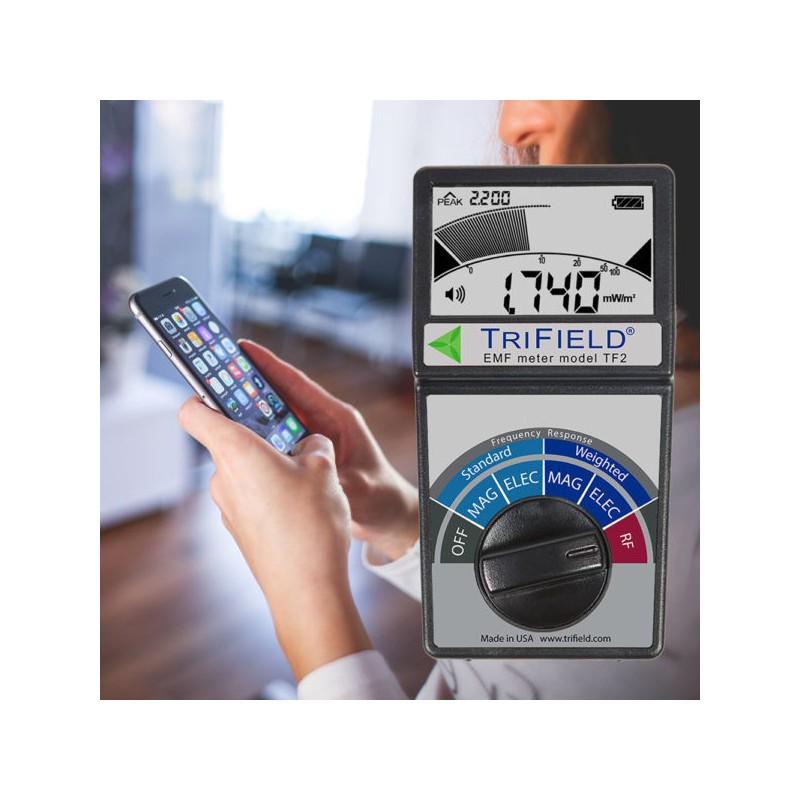

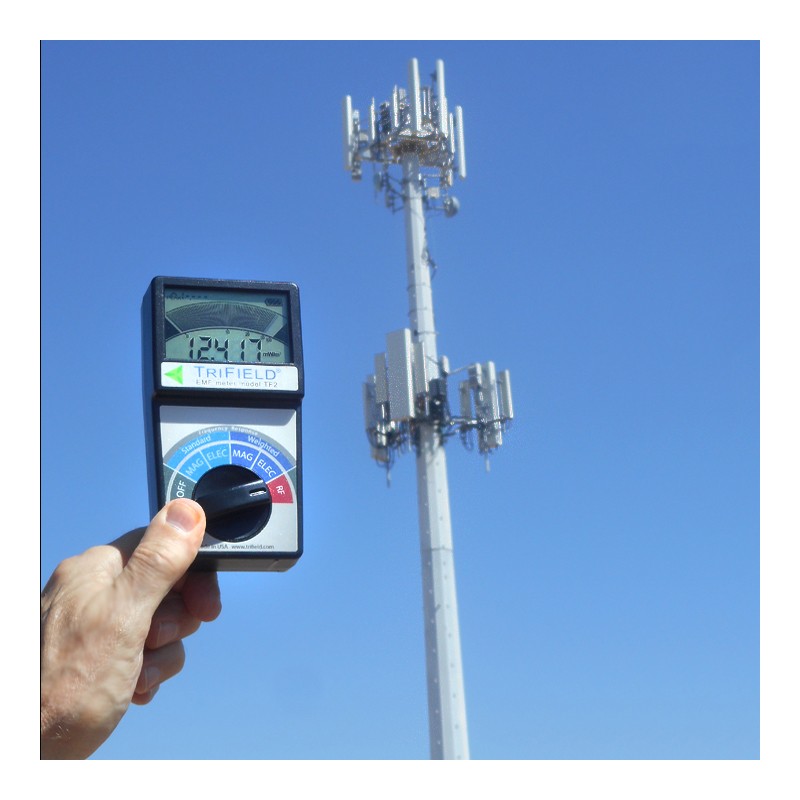

• Mobile phone and cell tower RF radiation

• Smart meter RF radiation

• Wi-Fi router and Bluetooth RF radiation

• Overhead AC power line and transformer EMF emissions

• Laptop, refrigerator, circuit breaker box, etc. appliance EMF emission

• EMF emission inside aircraft and motor vehicles

• Microwave oven leak

• Location and EMF of wiring in walls

• EMF from plumbing pipes used as grounding

Specifications:

AC Magnetic: 3-axis, true magnitude

Frequency Range: 40 Hz – 100 kHz

Accuracy: ±4% @ 50/60 Hz

Maximum Range: 100.0 milligauss

Sensitivity (Resolution): 0.1 milligauss

AC Electric: 1-axis, true magnitude

Frequency Range: 40 Hz – 100 KHz

Accuracy: ±5% @ 50/60 Hz

Maximum Range: 1000 V/m

Sensitivity (Resolution): 1 V/m

RF(Radio)/Microwave: 1-axis

Frequency Range: 20 MHz – 6 GHz

Accuracy: ±20% @ 1 GHz

Maximum Range: 19.999 mW/m2

Sensitivity (Resolution): 0.001 mW/m2

Battery: 9V alkaline battery with indicator

Battery Life Backlight Off: > 20 hrs

Battery Life Backlight On: > 12 hrs
