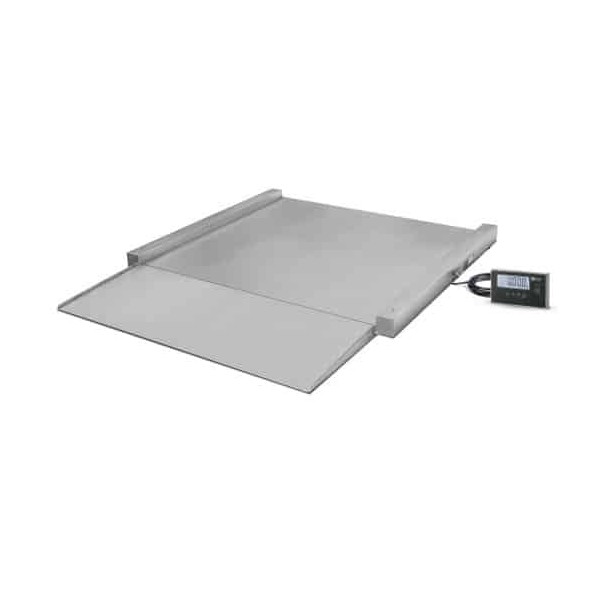

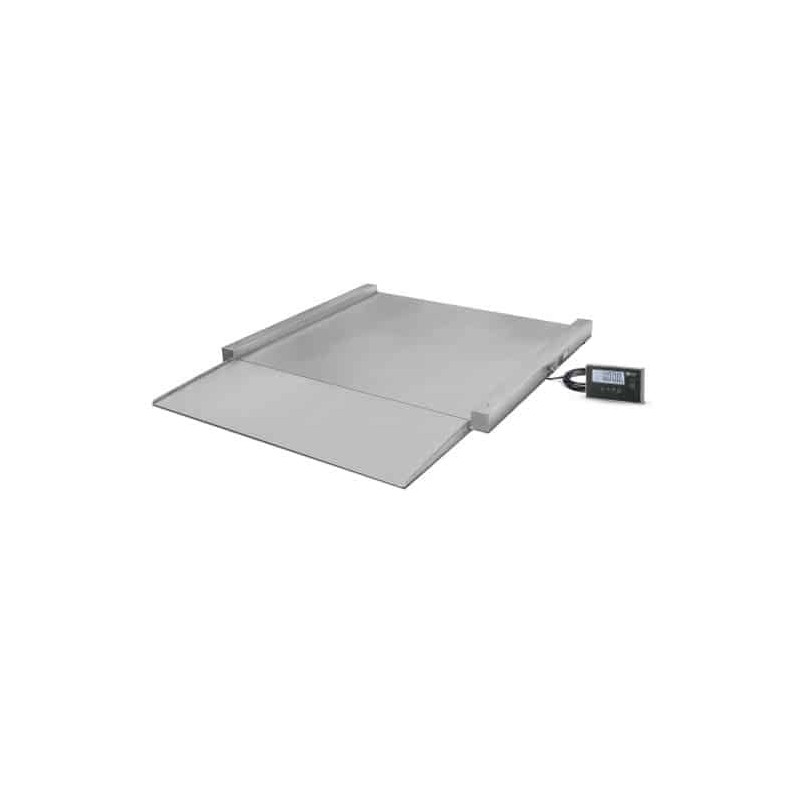

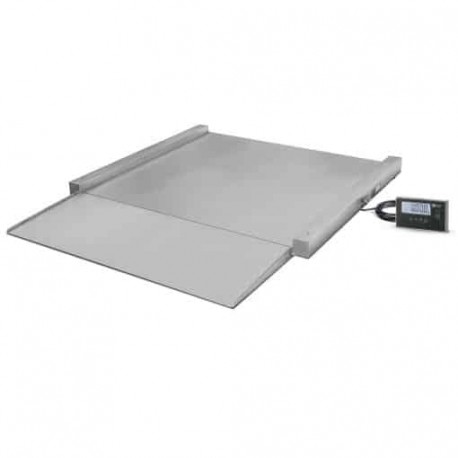

The food-grade stainless steel platform scale, type AISI 304, produced by our company, complies with all legal technical and sanitary standards to operate in hygiene-restricted environments, such as the food industry, chemical industry, or healthcare settings.

Main Features:

• Compact and modular design: The DF Series scale stands out for its low height and modular design, making it suitable for various operational requirements.

• High-quality materials: Fully made of stainless steel, it can be used independently or in combination with stainless steel ramps or stop frames.

• Durability and ease of cleaning: With an IP67 protection class, the platform can be washed with a water jet whenever necessary without affecting functionality.

• Compact size and robustness: Ideal for small spaces, this scale offers high weighing accuracy and operational safety even under demanding conditions.

Use in various fields:
The DF Series stainless steel platform scale is essential in the food industry, used in slaughterhouses, meat, fish, vegetable, fruit, and semi-processed product facilities. It is also commonly used in the chemical industry due to the special properties of the materials used.

Customizable configurations:
Platforms can be equipped with ramps and stop frames for easier handling of goods. In larger spaces, two ramps can be installed for optimal workflow in technological processes.

Advanced functionalities:
DF Series scales come with various communication and automation options, such as:

• 4…20mA modules and Ethernet

• Additional memory

• Real-time clock with independent power

• Receipt and label printers

• Long-lasting autonomous batteries

These scales can also connect to a PC, issue weight receipts, and integrate with various peripherals, making them ideal for complex applications.

Choosing the DF Series stainless steel platform scales ensures a reliable, hygienic, and adaptable product for a wide range of industrial applications.

Technical Specifications:

• Dimensions: 1500x1500 mm

• Accuracy: Class III, EU approval 10,000e, 0.3 µV/d.

• Premium materials: Platform and frame made of stainless steel, IP67 protection class.

• Load cells: 4 stainless steel OIML-certified cells, IP68.

• Safety: Side frames, adjustable anti-slip feet.

• Si10S indicator unit: IP67, multicolor backlight, touch keyboard, 2xRS232 interface, optional Li-ion battery.

• Certifications: CE, OIML R-76 / EN 45501, factory metrological verification.

• Custom configurations: Dimensions, capacity, functions, and accessories tailored to requirements.

• Compatibility: Si10SP, Si30S models, thermal printers.

• Options: Ramps, stop frames, movable stainless steel arm.

Transport not included.
