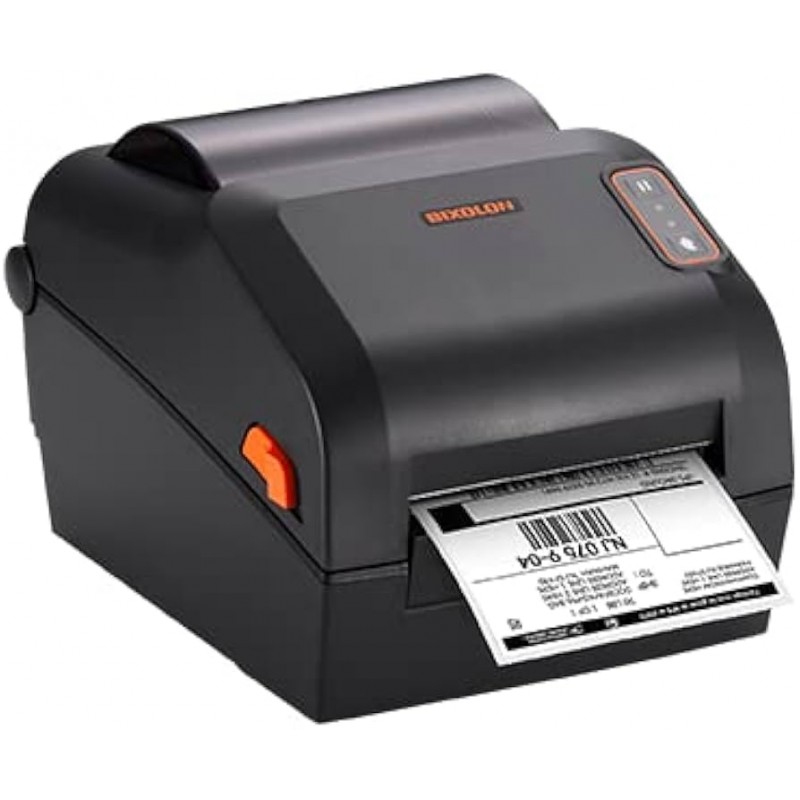

Bixolon XD5-40d is a desktop direct thermal label printer, ideal for retail, logistics, manufacturing and pharmaceutical applications. It offers a resolution of 203 dpi (8 dots/mm) and a print speed of up to 178 mm/s, designed for efficient and reliable operation in dynamic environments. It features extensive connectivity and support for various media types, providing consistent performance at a professional level.

Operator display: None (optional: monochrome LCD)

Printing method: Direct Thermal (TD)

Printing speed (mm/s): Up to 178

Printing resolution (DPI): 203 (8 dots/mm)

Memory: 64 MB RAM, 128 MB Flash

Printable area (mm): 108

Media width (mm): 15 ~ 118

Roll diameter (mm): Max. 127

Media Thickness: 0.06 ~ 0.20 mm

Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold

Feeding Method: Easy Paper Loading

Sensors: Transmissive (fixed), Reflective (adjustable), Open Head

Supported Barcodes:
1D: Codabar, Code 39, Code 128, EAN-13, UPC-A etc.
2D: QR Code, Data Matrix, PDF417, MaxiCode etc.

Programming Language: SLCS™, BPL-Z™, BPL-E™, BPL-D™

Interfaces and Ports: USB Type B, USB Host, RS232 (9-pin), Ethernet 10/100 Mbps

Real Time Clock: Optional

Operating Temperature (°C): 0 ~ 40

Humidity (%RH): 10 ~ 80

Dimensions (mm): 194 x 248 x 169

Weight (kg): 1.89

Color: Black

Included Accessories: Power Cable, Power Supply, USB Cable
