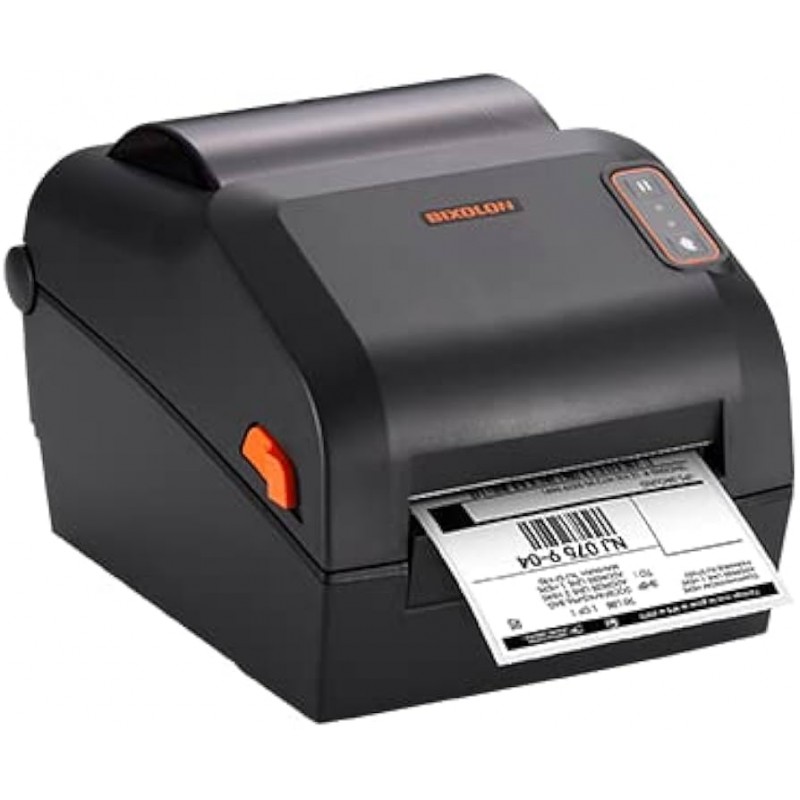

The Bixolon XD5-40t is a versatile desktop printer that offers thermal transfer and direct thermal printing, ideal for applications that require durable labels and superior print quality. With a resolution of 203 dpi and a speed of up to 152 mm/s, this model is built for performance in environments such as retail, manufacturing or logistics, offering extensive compatibility and easy operation.

Operator display: None (optional: monochrome LCD)

Printing method: Thermal Transfer (TT)

Printing speed (mm/s): Up to 152

Printing resolution (DPI): 203 (8 dots/mm)

Memory: 64 MB RAM, 128 MB Flash

Printable area (mm): 108

Media width (mm): 15 ~ 118

Roll diameter (mm): Max. 127

Media Thickness: 0.06 ~ 0.20 mm

Media Types: Gap, Black Mark, Notch, Continua, Fan-Fold

Feeding Method: Easy Paper Loading

Ribbon Features:
Type: Wax, Wax/Resin, Resin (outer)
Width: 33 ~ 110 mm
Length: up to 300 m
Inner Diameter: 25.4 mm / 12.7 mm

Sensors: Transmissive (fixed), Reflective (adjustable), Open Head

Supported Barcodes:
1D: Codabar, Code 39, Code 128, EAN-13, UPC-A etc.
2D: QR Code, Data Matrix, PDF417, MaxiCode etc.

Programming Language: SLCS™, BPL-Z™, BPL-E™, BPL-D™

Interfaces and Ports: USB Type B, USB Host, RS232 (9-pin), Ethernet 10/100 Mbps

Real Time Clock: Optional

Operating Temperature (°C): +5 ~ +40

Humidity (%RH): 10 ~ 80

Dimensions (mm): 210 x 284 x 188

Weight (kg): 2.48

Color: Black

Included Accessories: Power Cable, Power Supply, USB Cable
