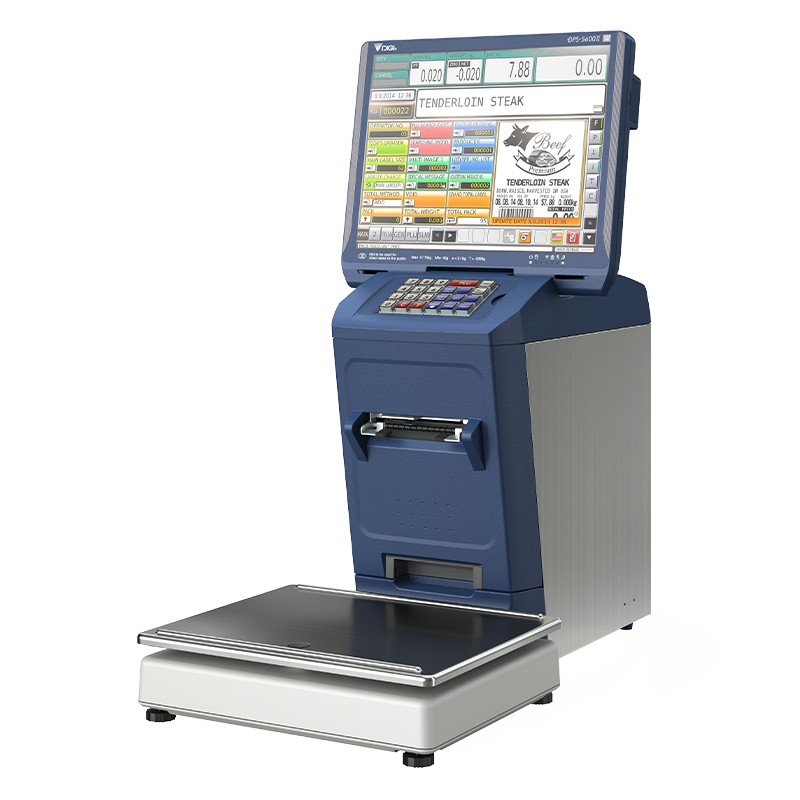

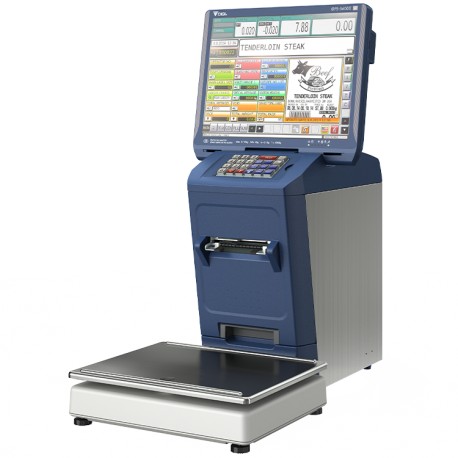

DPS-5600II is a high-performance weighing scale label printer for prepackaged products. It simplifies operations with easy and intuitive use, reducing workload. It uses linerless technology with automatic resizing and cutting of labels, which optimizes consumption and reduces costs, while also contributing to a lower environmental impact. The 15-inch color touch screen and the aggregation of two labels into one increase productivity, while the flexibility of label formats allows efficient and attractive product presentation, including additional information such as recipe tips, for enhanced promotional value.

Available in 3 versions depending on weighing capacity:

• 6 kg

• 15 kg (default delivery version)

• 30 kg

Capacity: Max 3/6 kg Max 6/15 kg Max 15/30 kg
Weighing interval: e = 1/2 g e = 2/5 g e = 5/10 g
Weighing range: 20 g-6 kg 40 g-15 kg 100 g-30 kg

Thermal printer
Label type: Die-cut label Linerless label
Label width: 25-80 mm 44-59 mm
Label length: 20-150 mm 20-500 mm
Maximum print length: 300 mm

Operation console
Display panel: TFT LCD color 15 inch touch panel
Operation keys: Mechanical keys and touch screen
Memory for programmable files: 18 GB

General
Power supply and consumption: AC120 V; 60 Hz; 1.5 A; 125 W AC220-240 V; 50/60 Hz; 1.0 A; 125 W
Net weight – standard configuration (single labeler type): 16.5 kg
Net weight – modular configuration (single labeler type): 19.7 kg
Net weight – modular configuration (twin labeler type): 25.7 kg
Scale platform: 3.8 kg
