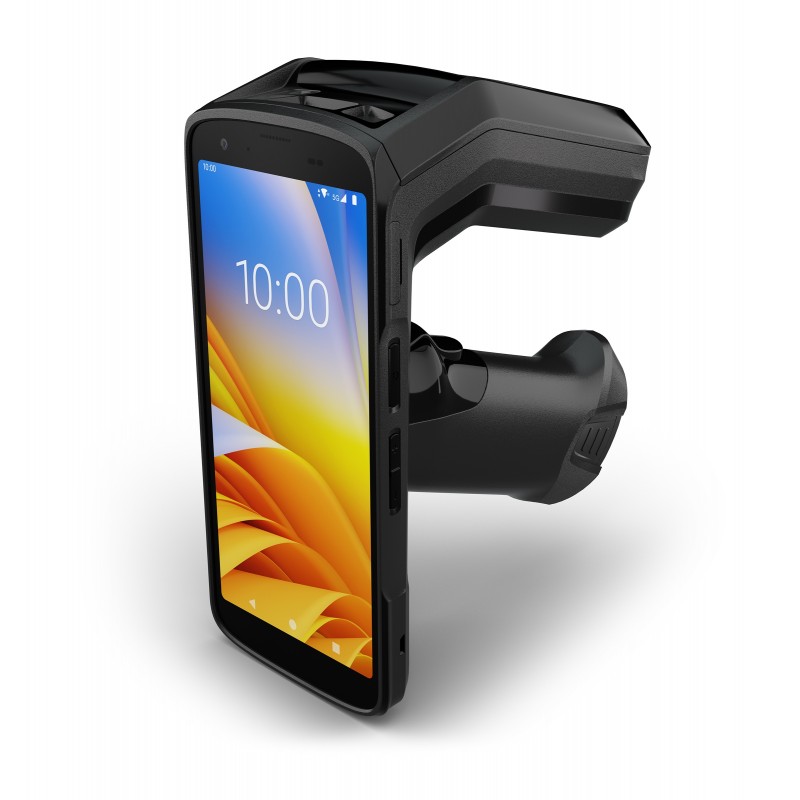

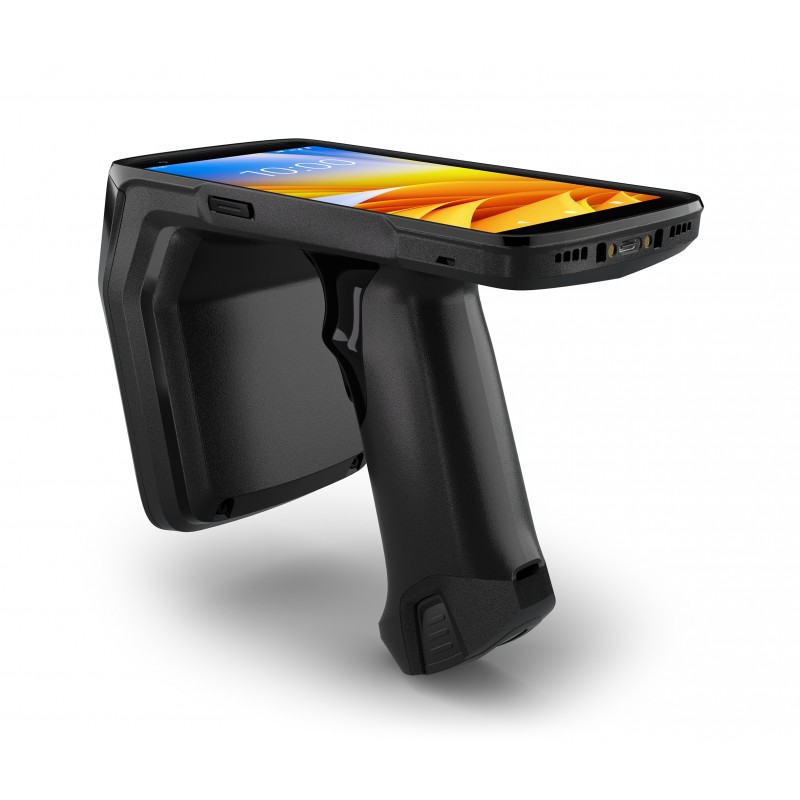

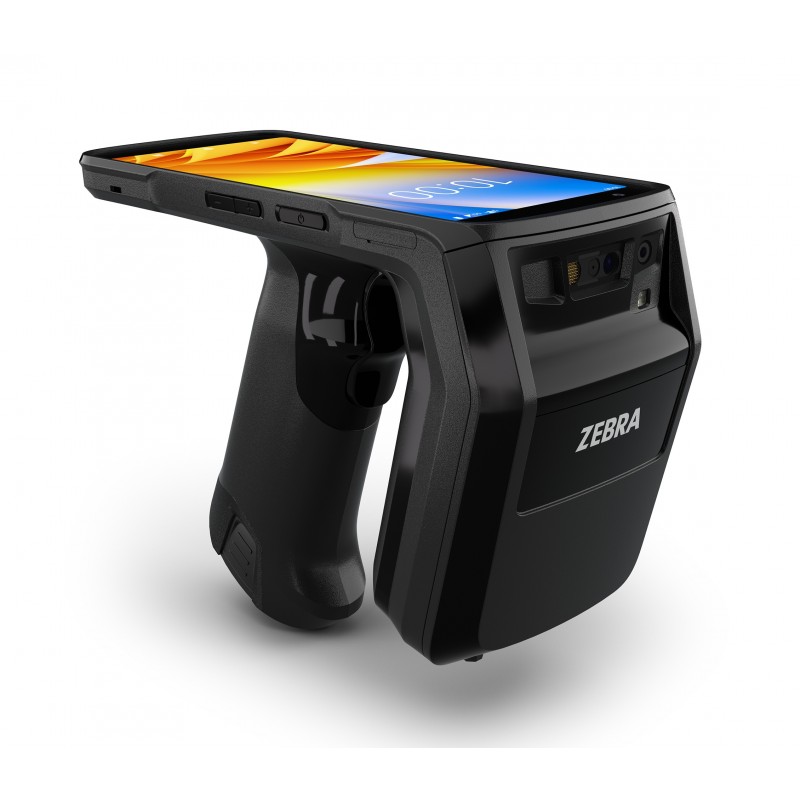

The Zebra TC22R is an integrated handheld RFID reader designed for data collection and management in commercial, logistics or industrial applications. The device combines 1D/2D scanning and UHF RFID reading capabilities in a compact form factor, with a 6-inch touchscreen and Android operating system. The device supports Wi-Fi 6E, Bluetooth 5.2, NFC and USB-C port, providing flexibility in use and integration into various systems.

Technical specifications

Equipment type: integrated RFID handheld reader
Reading method: RFID UHF + 2D scanner (SE4710 imager)
RFID frequency: 865–868 MHz (EU)
RFID reading rate: up to 1300 tags/second
RFID reading distance: up to 12.2 m
RF power: up to 33 dBm (ERP)
Processor: Qualcomm 5430, hexa-core, 2.1 GHz
Memory: RAM 4 GB / Flash 64 GB
Operating system: Android, with Google Mobile Services (GMS)
Display: 6.0” FHD+ (1080 x 2160 px), 450 nits, capacitive multitouch
Cameras: rear 16 MP, front 5 MP
Connectivity: Wi-Fi 6E (802.11ax), Bluetooth 5.2, NFC, USB-C
Battery: Li-Ion 7000 mAh, removable, PowerPrecision+
Dimensions: 145 mm (H) x 84 mm (W) x 177 mm (L)
Weight: 569 g
Rating: IP65, withstands multiple drops from 1.5 m
Operating temperature: -10°C to +50°C
Storage: -40°C to +70°C
Notifications: beep, vibration, status LEDs
User interface: programmable buttons, touch screen, multi-function shutter
Certifications: CE, FCC, ICES, EN 301 489, EN 302 208, ENERGY STAR
Package contents: TC22R device, 7000 mAh battery, USB-C cable, quick documentation.
