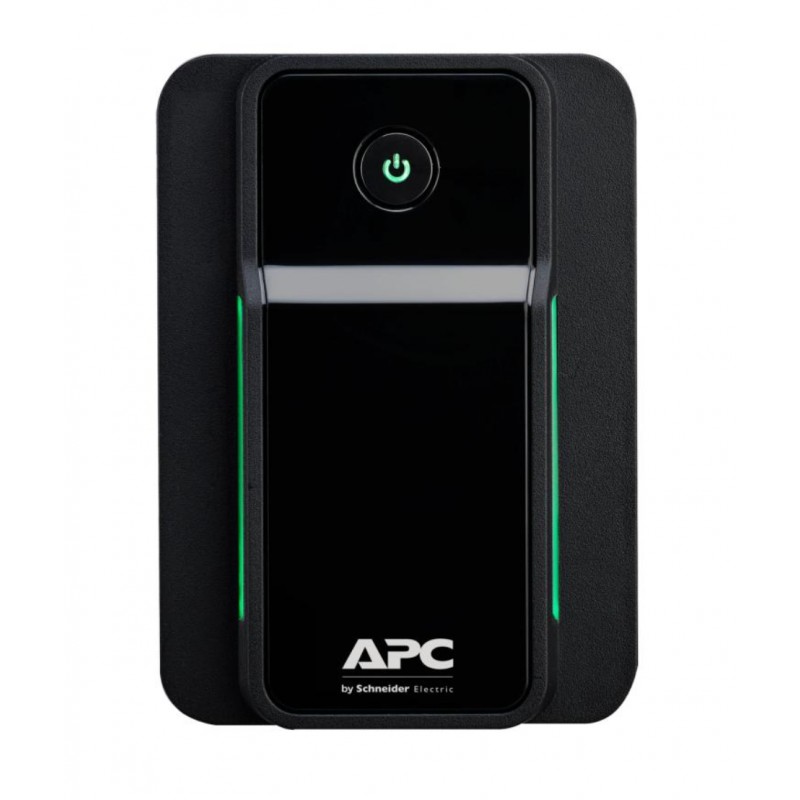

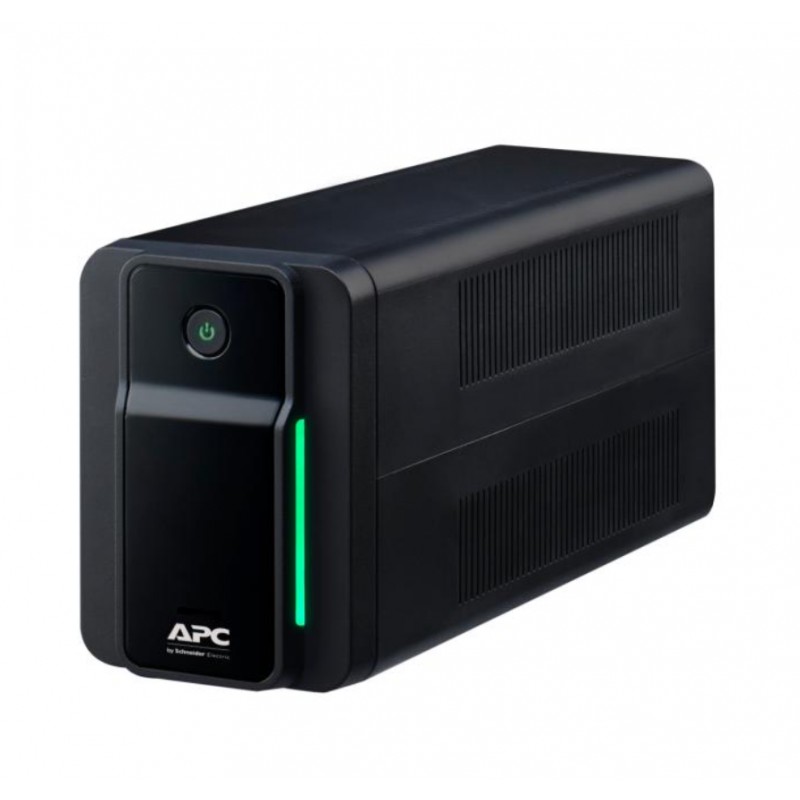

APC Back-UPS 500VA is a UPS designed for use in homes and small offices, providing basic protection against power outages and voltage fluctuations. The model uses Line-Interactive technology with AVR for voltage stabilization and includes IEC outputs for connecting equipment. The device is built for reliable operation in various conditions and notifies the user through audible alarms and LED indicators.

Technical specifications

Output capacity: 0.5 kVA
Output power: 300 W
Battery voltage: 12 V
Battery technology: Sealed Lead Acid (VRLA)
Battery recharge time: 8 h
Battery life: 5 years
Automatic battery test: Yes

UPS topology: Line-Interactive
AVR: Yes
Input frequency: 50 - 60 Hz
Minimum input operating voltage: 140 V
Maximum input operating voltage: 300 V
Input power factor: 0.63
Output frequency: 50/60 Hz
Waveform: Sine
Efficiency: 96.1%

Surge protection: Yes
Surge energy rating: 273 J
Audible alarm: Yes
Alarm modes: Alarm when on battery, Low battery alarm
Noise level: 40 dB

RJ-45 Ethernet ports: 2
Cabling technology: 10/100/1000Base-T(X)

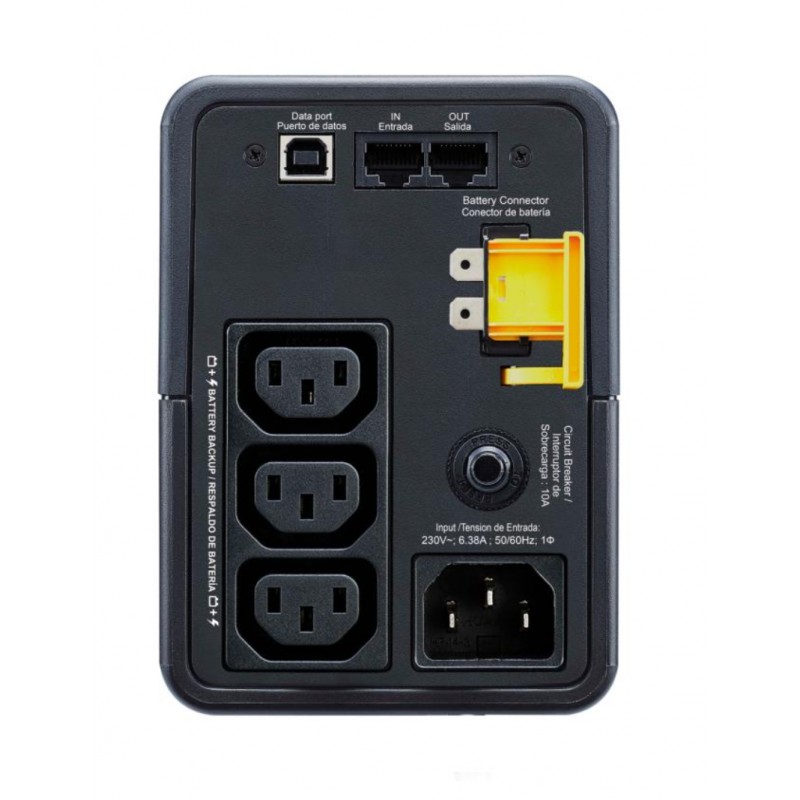

Number of IEC outlets: 3
Output outlet type: C13 coupler
Power plug: C14 coupler
Number of output IEC jumpers: 1

LED indicator: Battery replacement
Cable length: 1.5 m
Form factor: Tower
IP code: IP20
Rackable: No
UPS management: No

Weight: 4.2 kg
Dimensions (W x D x H): 98 mm x 310 mm x 138 mm

Package weight: 4.5 kg
Package dimensions (W x D x H): 142 mm x 346 mm x 222 mm

Operating temperature: 0 - 40 °C
Storage temperature: -15 - 40 °C
Operating humidity: 0 - 95%
Operating altitude: 0 - 3000 m
Storage humidity: 0 - 95%
Non-operating altitude: 0 - 3000 m

Certifications: CE, EAC, EN/IEC 62040-1
