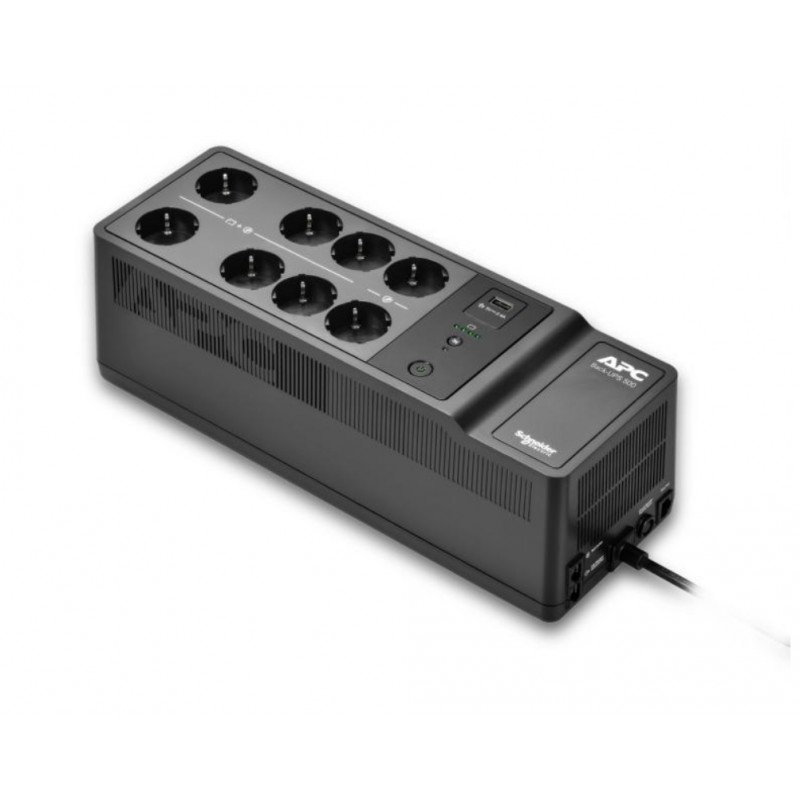

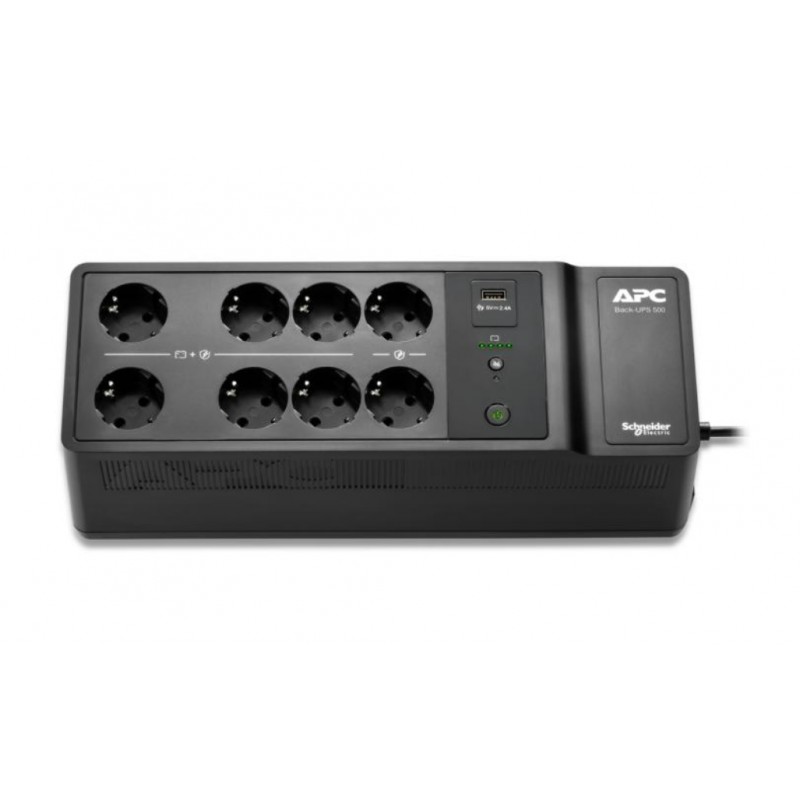

APC Back-UPS 500VA/300W is a UPS designed for floor or wall installation, suitable for home and small office environments. It provides basic protection against power outages and surges and includes 8 Schuko outlets and a USB Type A port for powering connected devices. The unit uses Standby (Offline) topology and features a user-replaceable battery. The product comes with a 3-year equipment warranty and a 2-year battery warranty.

Technical specifications

Output capacity: 0.5 kVA
Output power: 300 W
UPS topology: Standby (Offline)
Output operating voltage (min): 220 V
Output operating voltage (max): 230 V
Input operating voltage (min): 180 V
Input operating voltage (max): 266 V
Input frequency: 47/63 Hz
Waveform: Stepwise
Efficiency: 80%
Response time: 6 ms
Surge protection: Yes
Surge energy rating: 310 J
Maximum current: 10 A
Noise level: 45 dB

Battery technology: Lead-Acid
Battery voltage: 12 V
Battery capacity: 9 Ah
Battery recharge time: 6 h
User replaceable battery: Yes

Number of outlets: 8
Outlet type: CEE 7/3 Schuko
USB port: USB Type A
Rackable: No
UPS management: No

Form factor: Desktop
Dimensions (W x D x H): 130 mm x 365 mm x 120 mm
Package weight: 4.1 kg
Package dimensions (W x D x H): 441 mm x 186 mm x 190 mm

Operating temperature: 0 - 40 °C
Operating humidity: 0 - 90%
Storage temperature: -15 - 45 °C
Storage humidity: 0 - 95%
Non-operating altitude: 0 - 4572 m

Compliance certificates: CE, EAC
Equipment warranty: 3 years
Battery warranty: 2 years
