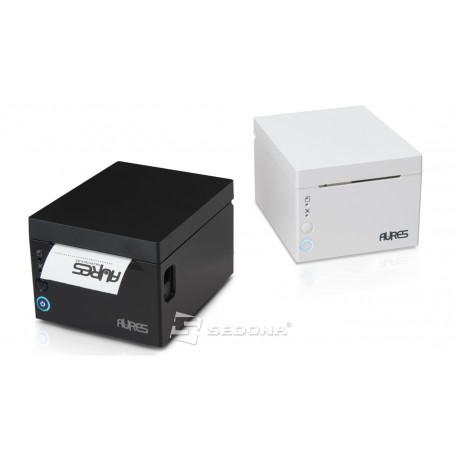

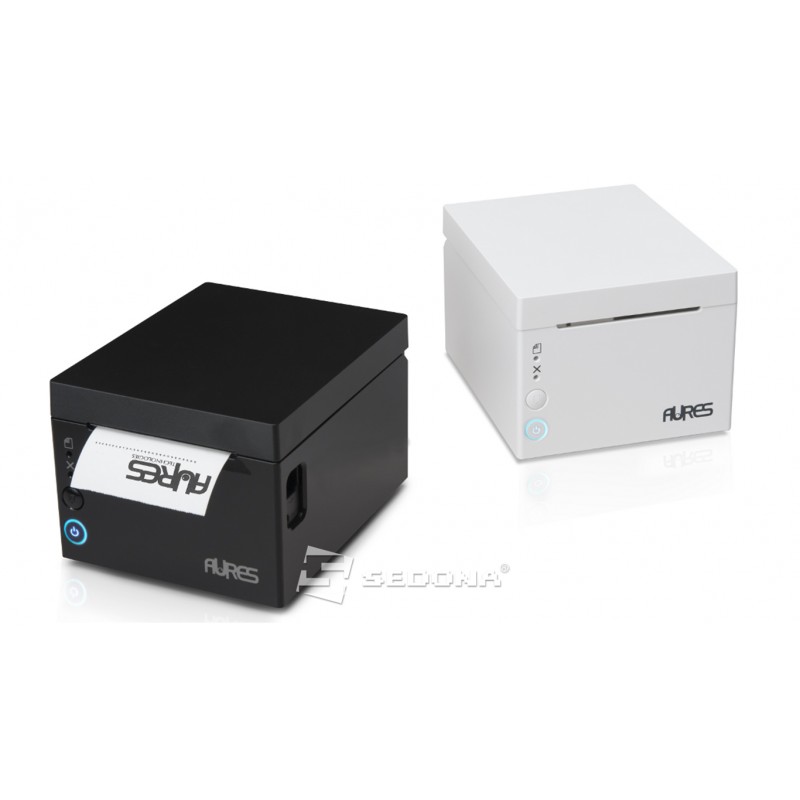

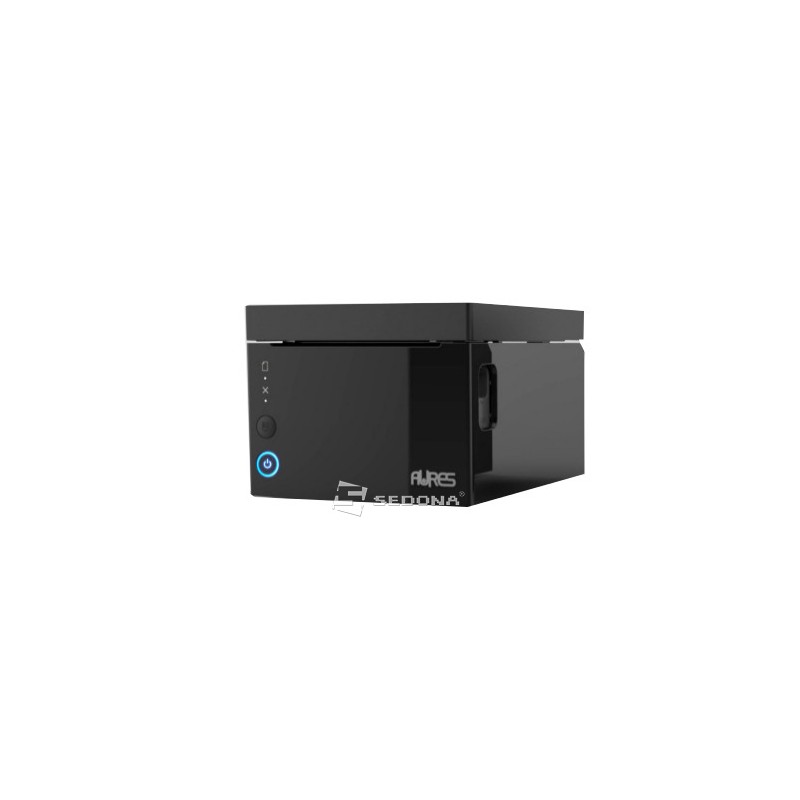

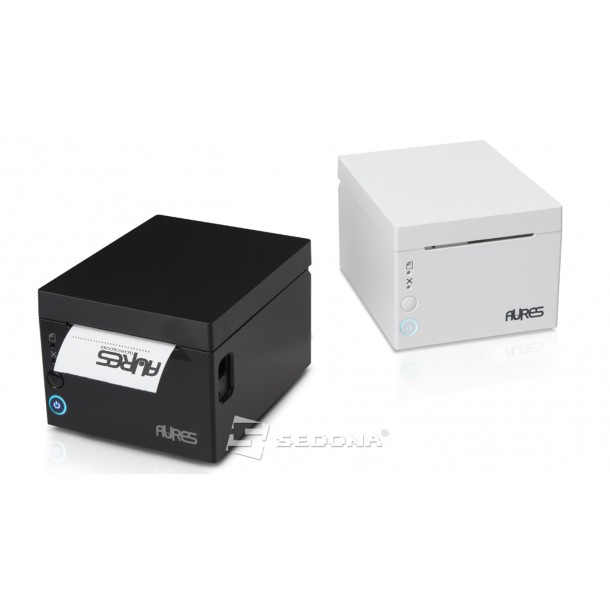

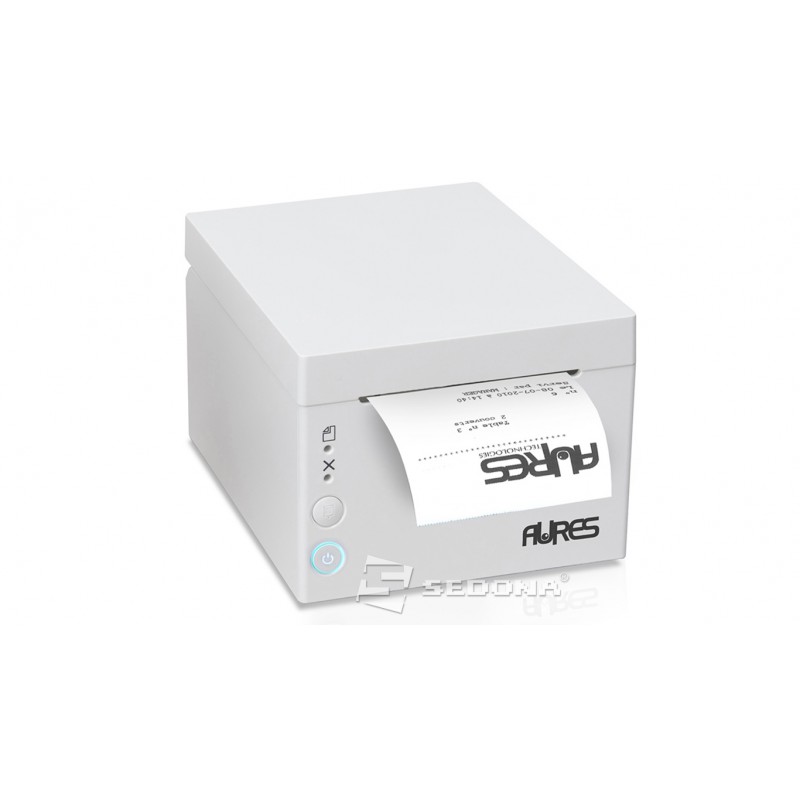

This compact, minimalist printer offers a splash-proof cubic design, a convenient front receipt printout –and a low power motherboard, together with a triple interface. Triple connection interface: USB / SERIAL / ETHERNET

MODEL

Print method direct, thermal

Print speed 160mm/sec

Effective Print Width 72mm / 512 dots/line

Characters per line Font A: 42 columns, 180dpi Font B : 56 columns, 180dpi / 64 columns, 203dpi

Internal memory 64MB

Motherboard low power consumption – automatic standby mode enables 30% less power use on average.

Paper loading automatic

THERMAL PRINTER

Width: 79.5 mm +/- 0.5 mm

Thickness 0.065 - 0.1mm

Max. roll diameter 83mm

CHARACTERS

Alphanumeric 95

Extended graphic 128 x 18 page

International characters 14

Barcodes UPC - A, UPC-E, EAN-8, Code 39, Code 93, Code 128, ITF, Codabar, 2D PDF417, QR Code

Emulation ESC/POS compatible

Drivers Windows (XP, 2000, 2003, Vista, WEPOS) /OPOS / Linux / Java POS

Sensor end-of-roll, near end-of-roll, cover open

Till output port(s) 1 dual port (for 2 drawers) - RJ11 6-pin connector

Interfaces Triple interface RS232 Serial - USB & Ethernet dual (non-modifiable)

Power supply External 24V - 2.5A

Buzzer

PAPER CUTTER

Auto cutter guillotine type Max. 30 cuts/minute

Cut type total or partial

OTHER FEATURES

MCBF 35-50 million lines depending on type of use and paper thickness Printer head lifespan: 160km Paper cutter lifespan: Approx. 1.5 million cuts

Operating temperature -20 to +60°C

Operating humidity 10% to 90% (without condensation)

Dimensions (depth x width x height) 165 x 135 x 105.02mm

Weight 1kg approximately Colour Black or whit
