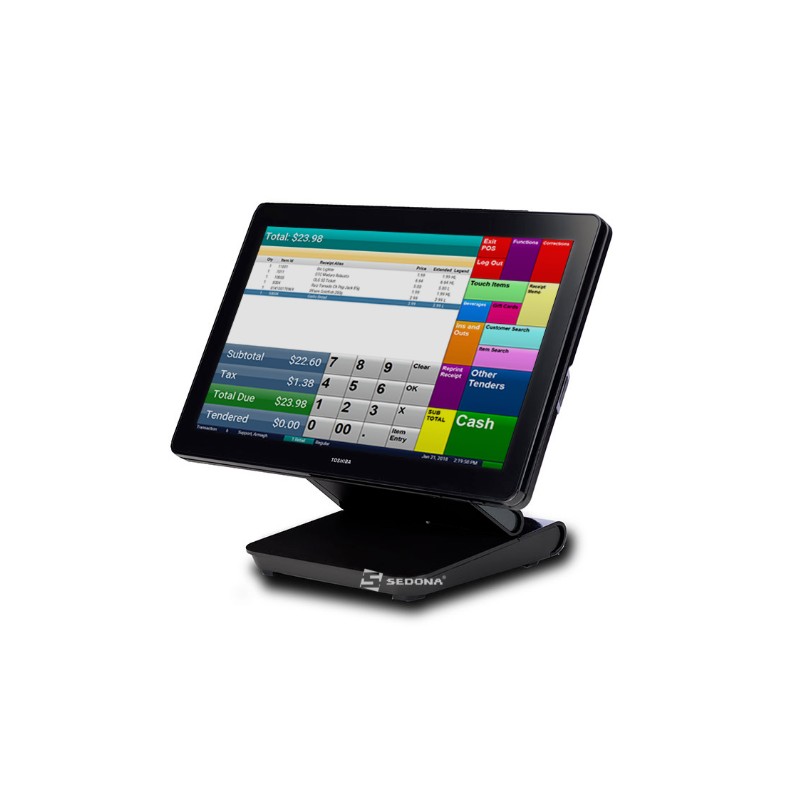

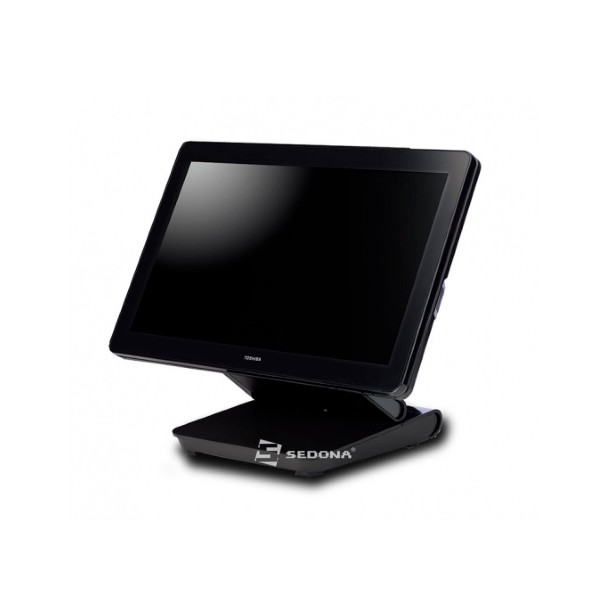

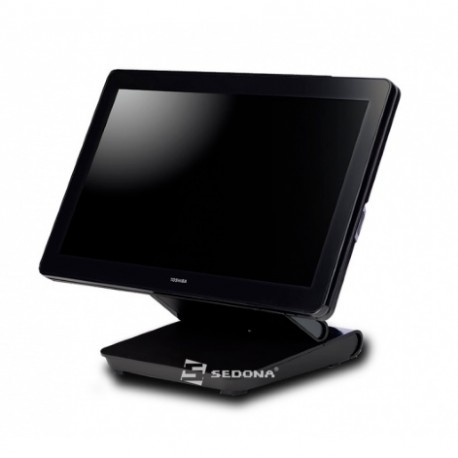

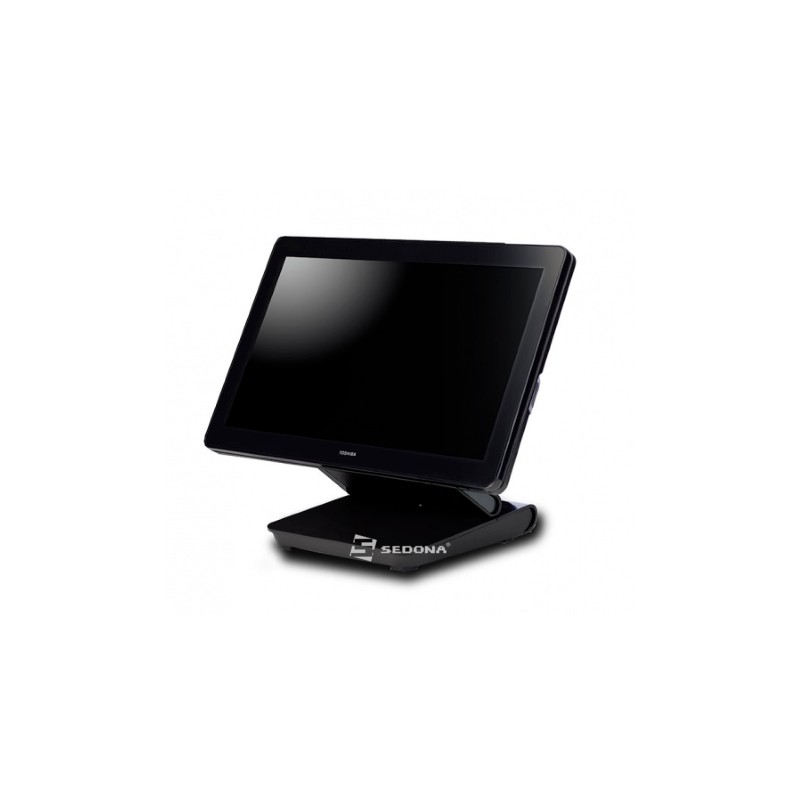

The TCx™ 800 all-in-one POS platform is the latest retail innovation from Toshiba that enables associates to more easily deliver quicker, enjoyable experiences for shoppers. As a fully functional point-of-sale system, kiosk, or self-service unit, the TCx 800 POS platform combines both robust performance and exceptional reliability.

CPU Support Intel 7th Generation uSeries processors: - Core i5-7300U

Memory 16GB DDR4 options

Max System Memory Supported 32GB

Sockets 2 SO-DIMM

NVRAM Support 128GB SATA M.2 SSD serves as NVRAM when used with TCx Sky V1.1.01

Audio Bottom access headphone/mic port

Speaker Standard

Ethernet Intel

Fixed Connectors (system) - 1x Display Port

- 1x 10/100/1000MB (Gigabit) Ethernet LAN

- 2x USB 3.0

- 1x USB-C

- 1x Headphone/Mic

- 2x USB 2.0

- Together Ports choice (See powered connector options below. Choose at least 1 row; max 1 on system,

1 in stand/hub)

Primary Display - 15” 4:3 or 15.6” 16:9 or 18.5” 16:9 (Raven Black version)

 15” 4:3 or 15.6” 16:9 (Brilliant White version)

- Back-lit LCD

- Bezel-less 10 point PCAP

Accelerometer Yes

Video Memory 32MB allocated, up to 256MB shared

Controls / Indicators - Power SW/LED

- Brightness +/-

- Activity LED

- Dump switch

BIOS AMI
