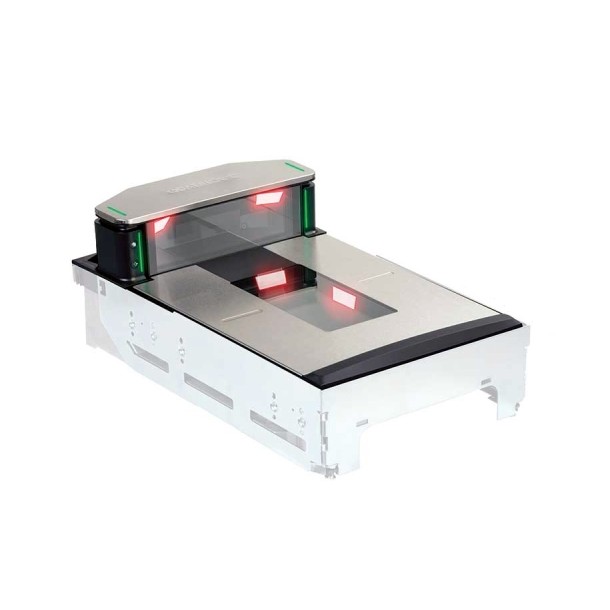

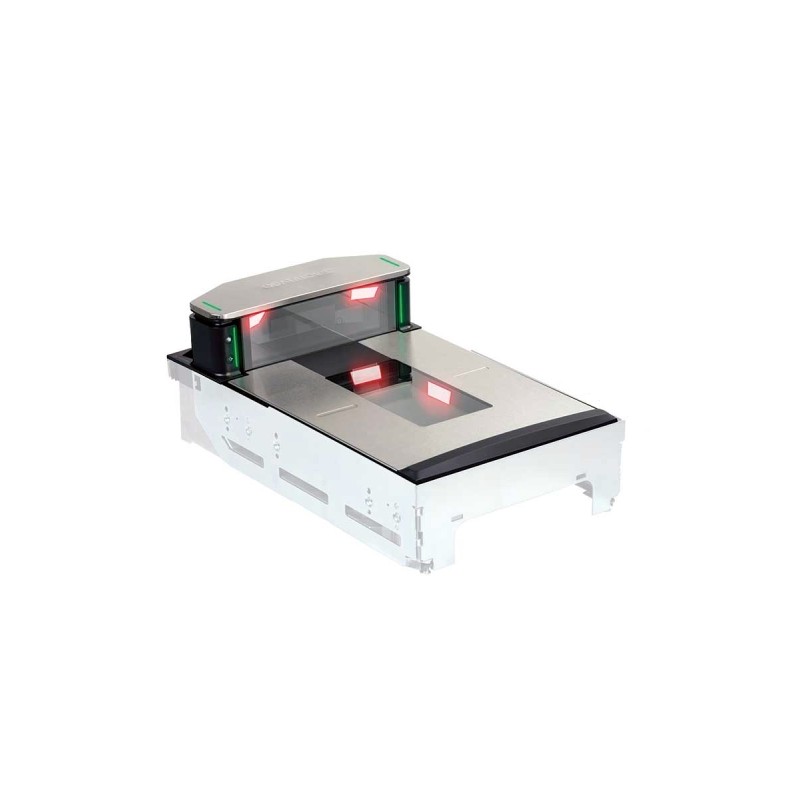

The Magellan 9600i uses QuadVision™ technology and a powerful IMX8 multi-core processor, which operates with four cameras (two horizontal and two vertical) to generate high-resolution images with every scan. The combination of processing power, five-sided image capture and advanced Datalogic software ensures high performance in decoding barcodes, including damaged or difficult-to-read ones. In addition, two optional color cameras can be used to capture images for machine learning applications and for simultaneous video transmission via Ethernet or USB 3.0, facilitating future loss prevention and analysis solutions.

Features:

Supported barcodes: EAN/JAN/UPC, Code 128, EAN/JAN composites; GS1 DataBar composites; GS1 DataBar stacked extended; GS1 DataBar stacked; GS1 DataBar stacked omnidirectional; MicroPDF417; PDF417; UPC A/E composites; Aztec Code; Data Matrix; QR Code, Micro QR, Digimarc barcodes, and all future GS1 codes

Illumination: Multiple diffuse LEDs: orientation and wavelength optimized for eye comfort

Scan indicators: Visual: confirmation of correct read for all scanning planes

Audio: 85 dB speaker – adjustable tone and volume, plus support for WAV file formats

Dimensions: Depth (under counter): 10.2 cm / 4 in

Short length - 35.2 cm / 13.9 in

Medium length - 39.9 cm / 15.7 in

Long length - 43.7 cm / 17.2 in

Width: 29.2 cm / 11.5 in

Height 9600i (above counter): 13.4 cm / 5.3 in

Power requirements:

Scanner power consumption: 12 VDC

Operating (nominal): 9.3 W; Sleep: 7.3 W

Optional DC power supply for scanner: AC Input: 100 - 240 VAC, 50-60 Hz

Optional 48 VDC Ethernet power supply: AC Input: 100 - 240 VAC, 50-60 Hz

Host Multi-Interface: RS-232 / USB

Multi-Interface: OEM (IBM) USB Plus Power (Scanner / Scale);

RS-232 (Scanner) / RS-232 (Scale);

RS-232 (Scanner) or Single RS-232 Cable (Scanner / Scale);

Auxiliary ports: USB Powered Host (Type A) (x2);

Powered RS-232;

Remote Scale Display;

EAS Controller Ports;

Sensormatic, Interlock;

Ethernet ports: 1 x standard Ethernet;

Optional 7-port Ethernet Switch (IEEE1588);

NOTE: Switch requires an external 48V power source.

Ambient light: 0-86,080 lux

ESD protection: 25 kV air discharge

Humidity (Non-condensing): 5 - 95%

Temperature: Operating: 10 to 40 °C / 50 to 104 °F;

Storage/Transport: -40 to 70 °C / -40 to 158 °F

Agency approvals: The product meets safety and regulatory approvals required for its intended use

Environmental compliance: Compliant with China RoHS;

Compliant with EU RoHS;

Compliant with R.E.A.C.H. - EC1907/2006
