Magellan 9900i is powered by QuadVision™, a multi-core processor and a multi-camera system with built-in Linux operating system, ensuring long-term platform viability. ScanSentry™ color camera options and neural processors enable a fully capable POS system to support Artificial Intelligence (AI) solutions, which will enhance customer satisfaction and significantly improve loss prevention.

Features:

Supported barcodes: EAN/JAN/UPC, Code 128, EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Stacked Extended; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; UPC A/E Composites. Aztec Code; Data Matrix; QR Code, Micro QR, Digimarc barcode, and all future GS1 codes;

Illumination: Multiple diffuse LEDs: orientation and wavelength optimized for eye comfort;

Scan indicators: Visual: Correct read confirmation for all reading planes;

Audio: 85 dB speaker - Adjustable tone and volume, plus support for WAV file formats;

Dimensions: Depth (under counter): 10.6 cm / 4.0 in
Short length - 35.2 cm / 13.9 in
Medium length - 39.9 cm / 15.7 in
Long length - 43.7 cm / 17.2 in
Width: 29.2 cm / 11.5 in
Height 9900i (above counter): 6.8 cm / 2.7 in

Power requirements:

Scanner power consumption: 12 VDC;

Operating (nominal): 9.3 W; Sleep: 7.3 W;

Optional DC power supply for scanner: AC Input: 100 - 240 VAC, 50-60 Hz;

Optional 48 VDC Ethernet power supply: AC Input: 100 - 240 VAC, 50-60 Hz;

Host Multi-Interface: RS-232 / USB

Multi-Interface: OEM (IBM) USB Plus Power (Scanner / Scale);

RS-232 (Scanner) / RS-232 (Scale);

RS-232 (Scanner) or Single RS-232 Cable (Scanner / Scale);

Auxiliary Ports: Powered USB Host (Type A) (x2);
Powered RS-232;
Remote Scale Display;
EAS Controller Ports;
Sensormatic, Interlock;

Ethernet Ports: 1 x Standard Ethernet;
Optional 7-port Ethernet Switch (IEEE1588);

NOTE: Switch requires an external 48V power source.

Agency approvals: The product meets the necessary safety and regulatory approvals for its intended use;

Environmental compliance: Compliant with China RoHS;
Compliant with EU RoHS;
Compliant with R.E.A.C.H. - EC1907/2006;

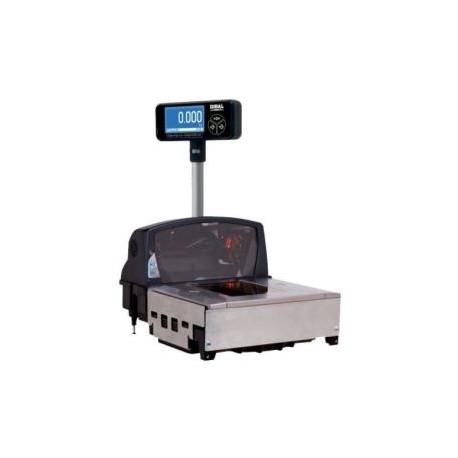

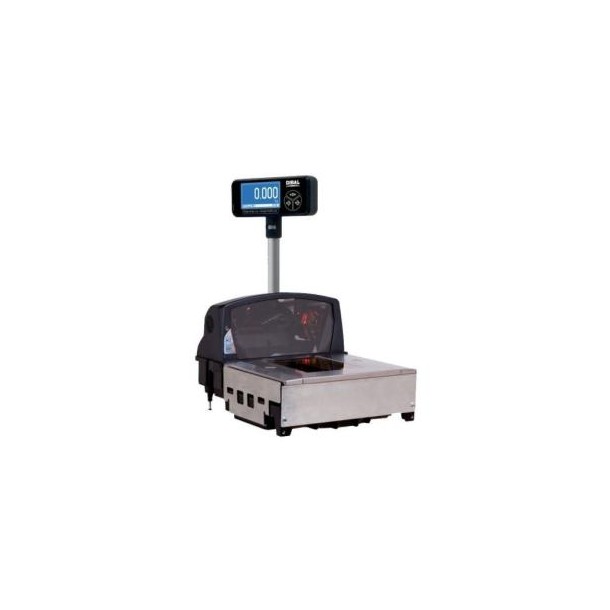

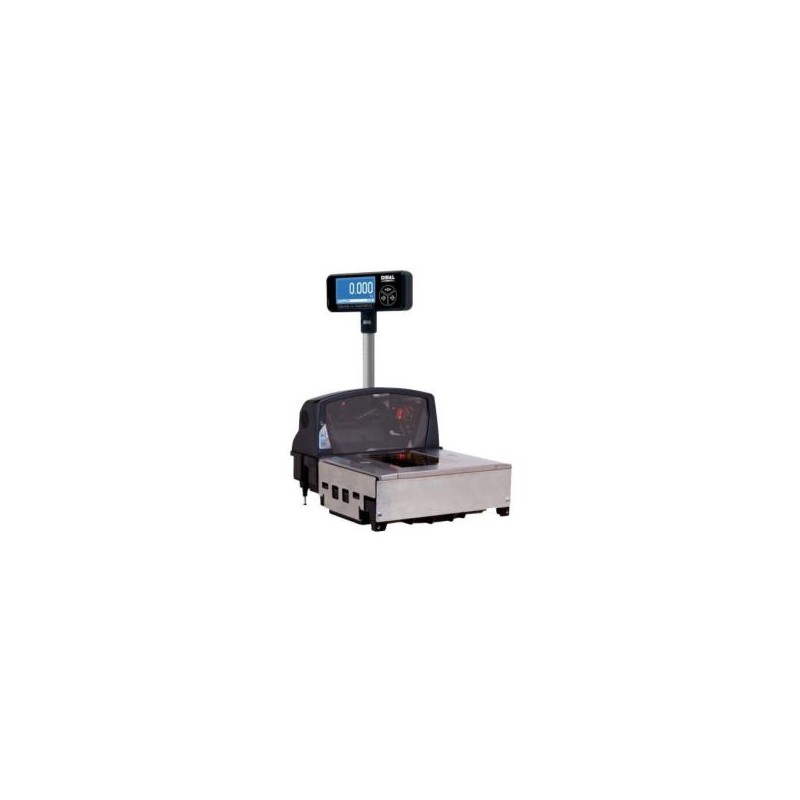

Dibal KS-400 M is a kit consisting of the weighing cell, a support frame compatible with the Datalogic Magellan 9400i scanner, and two LCD displays mounted on a stand.

Modular and modern design;

Two graphic LCD displays that can show the price in a secondary currency;

Serial interface (RS232);

Tare function, automatic zeroing function;

Number of verification divisions – 3000;

Power – through scanner;

Multiple communication protocols – you can add new communication protocols by downloading them from a PC;

Dibal KS-400 M has a maximum weighing capacity of 6/15 kg, precision of 2/5 g, features two LCD displays, and comes with two communication cables;

Operating temperature: 10°C – 40°C;

Power: AC Input: 100-250 VAC, 50-60 Hz;

Others: Sapphire Glass;

Auxiliary serial port;

Dimensions: 40.1 x 29.2 x 13 cm;

Weight: 8 kg;

Color: Gray;
