The Magellan 9600i features QuadVision™ technology, a powerful IMX8 multi-core processor that uses 4 cameras (2 horizontal and 2 vertical) to deliver multiple high-resolution images for each scan. Combine the powerful processors, 5-sided image capture, and Datalogic’s software, and the result is unmatched performance for decoding the most difficult and damaged barcodes. Additionally, two optional color cameras can be used for image capture for machine learning and simultaneous video transmission via Ethernet or USB 3.0 for loss prevention in future versions.

Features:

Supported barcodes: EAN/JAN/UPC, Code 128, EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; UPC A/E Composites; Aztec Code; Data Matrix; QR Code; Micro QR; Digimarc Barcode and all future GS1 codes

Illumination: Multiple diffuse LEDs, optimized orientation and wavelength for eye comfort

Scan indicators:
Visual: confirmation of correct reading for all scanning planes
Audio: 85 dB speaker – adjustable tone and volume, supports WAV file formats

Dimensions:
Depth (under counter): 10.2 cm / 4 in
Short length: 35.2 cm / 13.9 in
Medium length: 39.9 cm / 15.7 in
Long length: 43.7 cm / 17.2 in
Width: 29.2 cm / 11.5 in
Height 9600i (above counter): 13.4 cm / 5.3 in

Power requirements:
Scanner power consumption: 12 VDC
Operating (nominal): 9.3 W; Sleep: 7.3 W
Optional DC power supply for scanner: AC input: 100-240 VAC, 50-60 Hz
Optional 48 VDC Ethernet power supply: AC input: 100-240 VAC, 50-60 Hz

Host Multi-Interface: RS-232 / USB
Multi-Interface: OEM (IBM) USB Plus Power (Scanner / Scale)
RS-232 (Scanner) / RS-232 (Scale)
RS-232 (Scanner) or single RS-232 cable (Scanner / Scale)

Auxiliary Ports:
Powered USB Host (Type A) x2
Powered RS-232
Remote Scale Display
EAS Controller Ports
Sensormatic, Interlock

Ethernet Ports:
1 x standard Ethernet
Optional 7-port Ethernet switch (IEEE1588)
NOTE: switch requires an external 48V power source

Ambient light: 0–86,080 lux
ESD protection: 25 kV air discharge
Humidity (non-condensing): 5–95%
Temperature:
Operating: 10 to 40 °C / 50 to 104 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F

Agency approvals: the product meets required safety and regulatory approvals for intended use
Environmental compliance: China RoHS, EU RoHS, R.E.A.C.H. - EC1907/2006

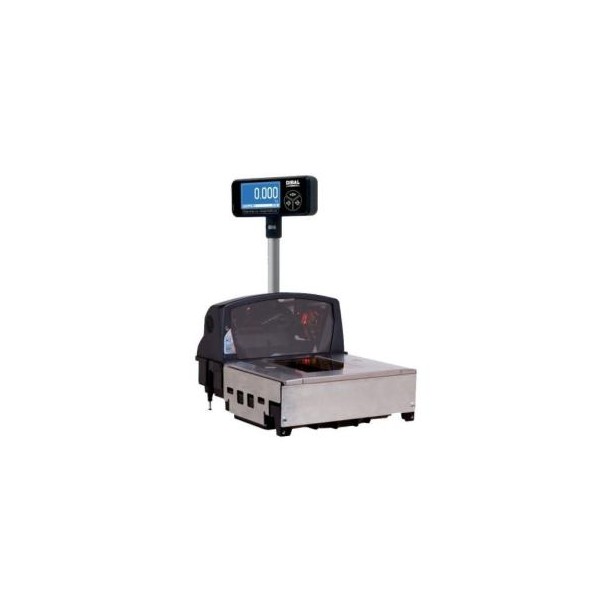

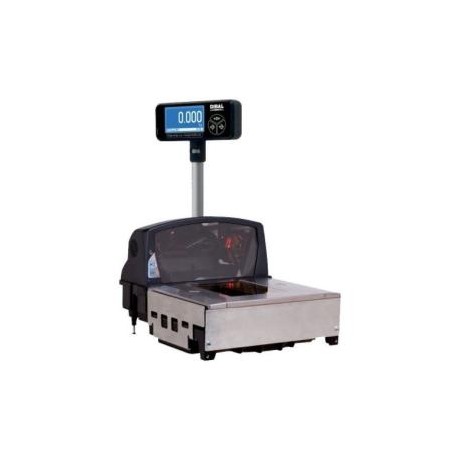

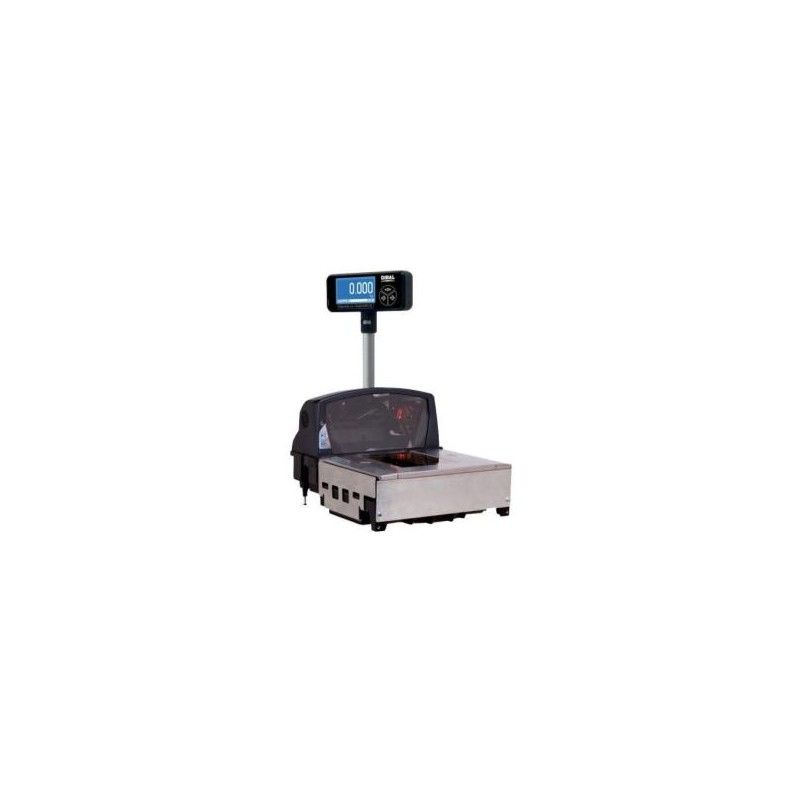

Dibal KS-400 M is a kit consisting of a weighing cell, support frame compatible with the Datalogic Magellan 9400i scanner, and two mounted LCD displays

Modular and modern design
Two graphical LCD displays capable of showing price in a secondary currency
Serial interface (RS232)
Tare setting function, auto-zero function
Number of verification divisions: 3000
Powered via scanner
Multiple communication protocols – new protocols can be added via PC download

Dibal KS-400 M:
Maximum weighing capacity: 6/15 kg, accuracy 2/5 g
Two LCD displays included
Two communication cables included
Operating temperature: 10°C – 40°C
Power: AC Input: 100-250 VAC, 50-60 Hz
Other: Sapphire Glass, Auxiliary serial port
Dimensions: 40.1 x 29.2 x 13 cm
Weight: 8 kg
Color: gray
