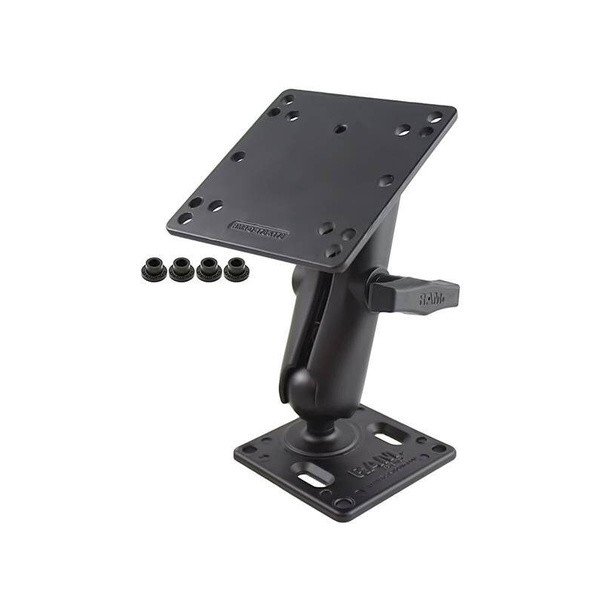

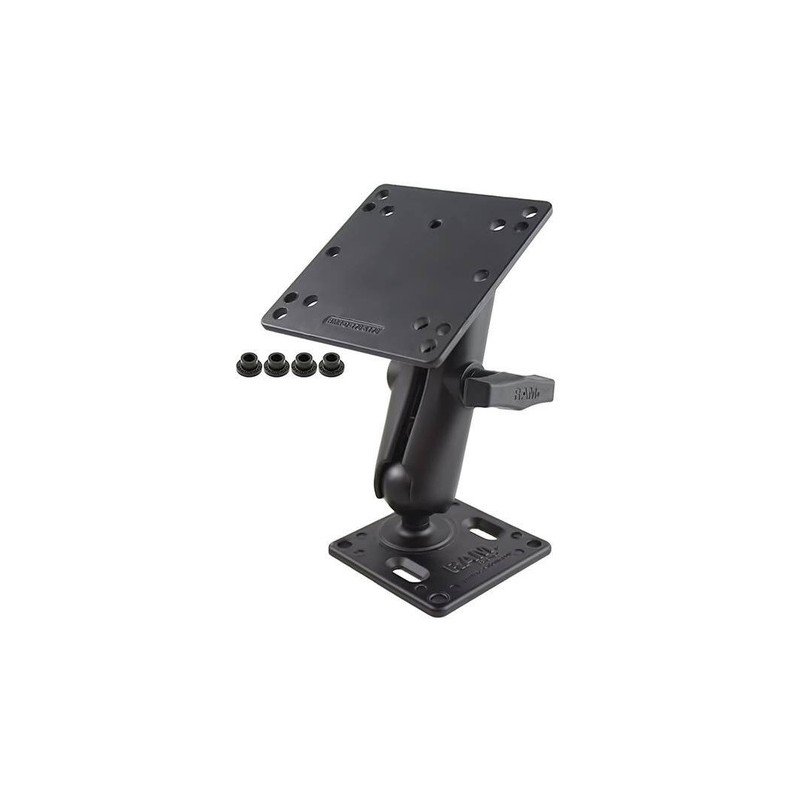

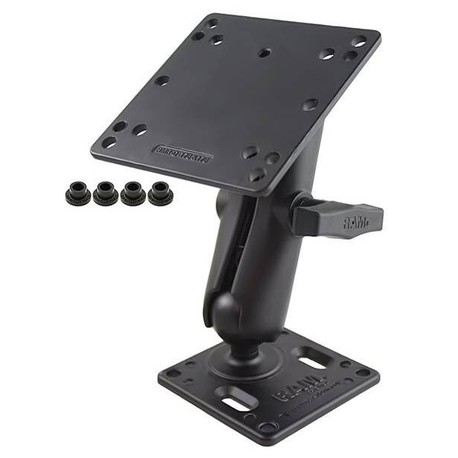

The mount consists of a dual-grip arm, a 3.625" square plate, and a 4.75" square plate. The 3.625" square plate contains a 75mm X 75mm VESA hole pattern. The 4.75" square plate contains a 4x100mm and 4x75mm hole pattern. The mount features a patented 1.5" diameter ball and socket rubber system with adjustment points at both ends of the arm.

Product Weight: 757g
Included Hardware: (4) .312" x .187" shoulder washers
Product Dimensions: Overall Height: 7.35"
Length from Socket to Socket: 4.66"
Hole Pattern: See Drawings
100 x 100 VESA
75 x 75 VESA
100 x 50 Half VESA
Plate Size: Large Plate: 4.75" x 4.75"|Small Plate: 3.625" x 3.625"
Weight Capacity: Standard Use: 1814.37 grams|Heavy Duty: 1360.78 grams
Materials: Marine Aluminum
Packaging Type: Pouch Poly
Mount Type: Drill Down
Ball & Socket Size: C Size 1.5" (Contains 1814.37 grams)
Socket Arm Length: Medium Arm
Device or Accessory Type: Monitor
Component Parts
RAM-201U
RAM-2461U
RAM-246U
Length from Socket to Socket: 4.66"
Ball Size: C Size (1.5")
