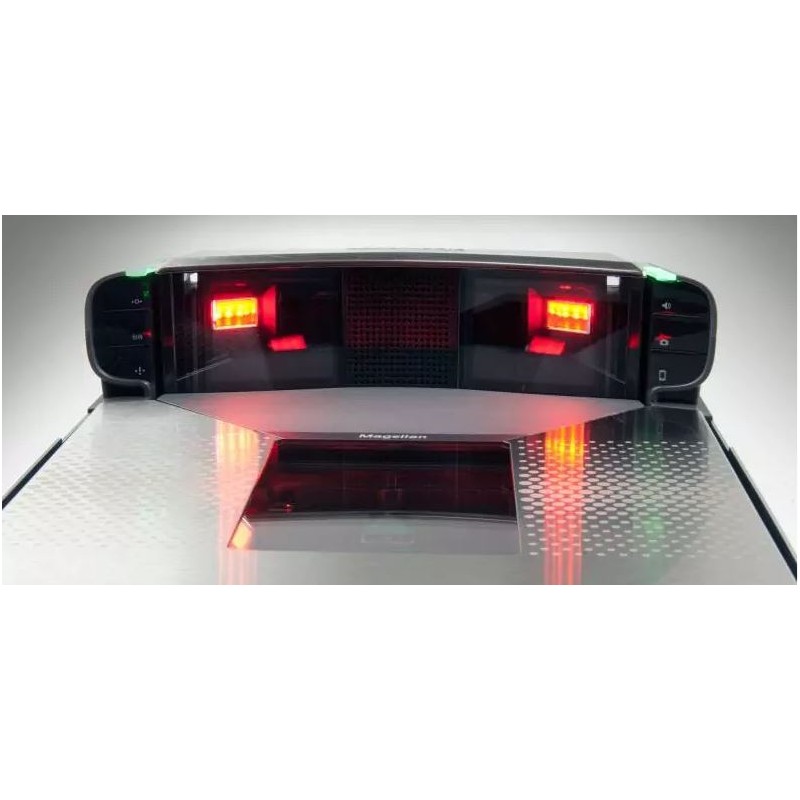

It has optional ability to read Digimarc codes. Datalogic Magellan 9800i reads 1D and 2D barcodes from labels, packaging, boarding passes or from the screens of mobile devices. It is an omnidirectional table scanner, with compact and ergonomic design and USB interface.

The Magellan 9800i model has a smaller vertical reader, raised 68mm above the platen, compared to the Magellan 9300i/9400i models which are raised 130mm above the platen, maintaining the same reading performance.

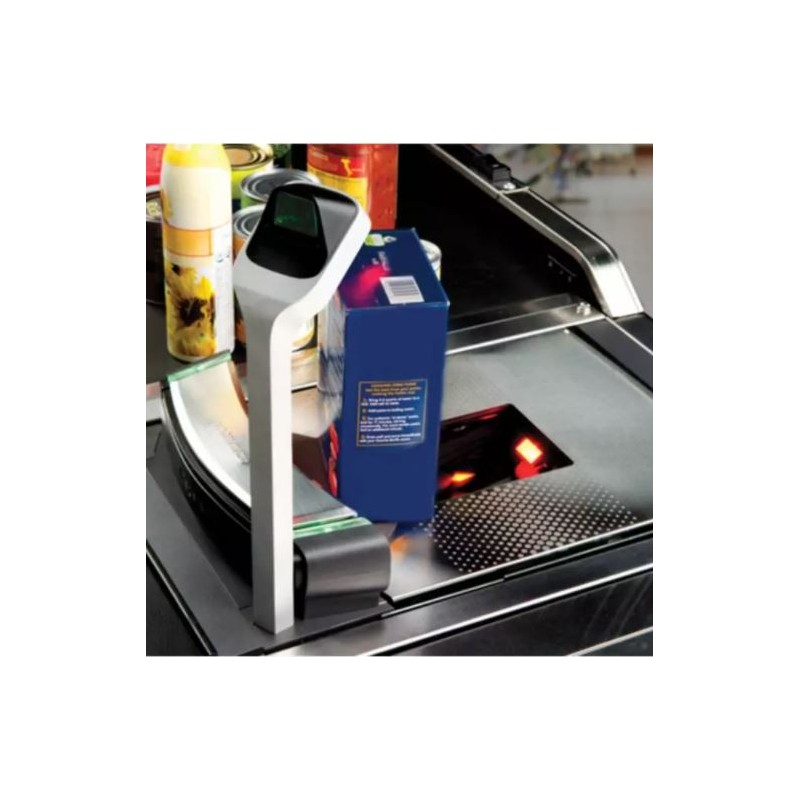

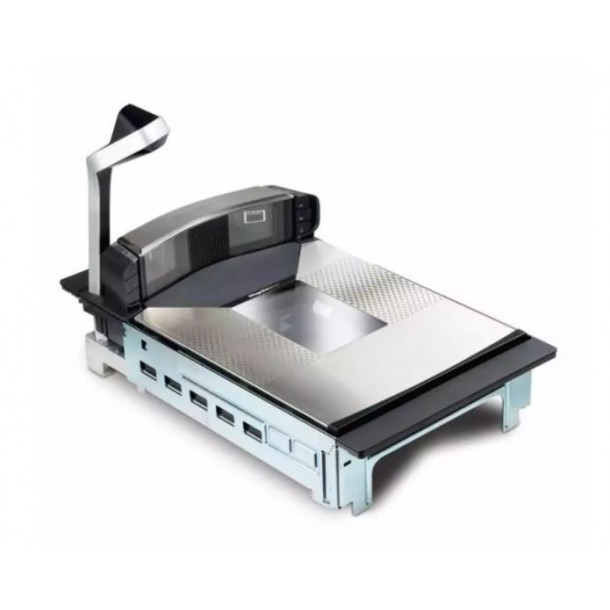

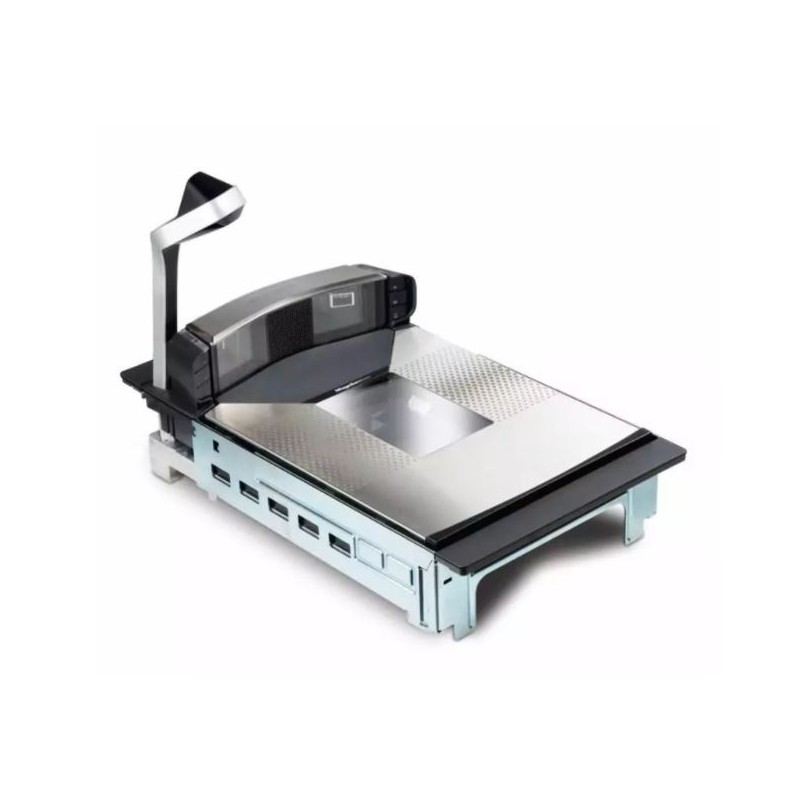

The Magellan 9800i model can be optionally equipped with a third scanner mounted on an arm, called TDR, which maximizes scanning speed by adding new angles for reading barcodes.

It is delivered in the Medium Platter version.

It is available in 3 sizes: Short, Medium, Long. The Medium and Long variants can be equipped with a weighing cell; the Short version cannot have a scale.

Short version: length 35.2 cm / width 29.2 cm / depth under the counter 10.6 cm / height above the counter 6.8 cm

Medium variant: length 39.9 cm / width 29.2 cm / depth under the counter 10.6 cm / height above the counter 6.8 cm

Long variant: length 50.7 cm / width 29.2 cm / depth under the counter 10.6 cm / height above the counter 6.8 cm

Medium Platter

Scan type: 2D

Shape: recessed

Connectivity: wired

Scanning technology: imager

Connection interface: USB

1D barcodes: Autodiscriminates all standard 1D codes including GS1 Databar ™ linear codes .;

Stacked Codes: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional;

2D: Aztec Code; Data Matrix; QR Code, Micro QR Code;

Operating temperature: 10 ° C - at 40 ° C

Power supply: AC Input: 100-250 VAC, 50-60 Hz

Others: Sapphire Glass;

audio signaling (beeper) adjustable in tone and volume;

LED reading signal successful.

Dimensions: 39.9 x 29.2 x 6.8 + 10.6 cm

Weight: 8 kg

Color: gray
