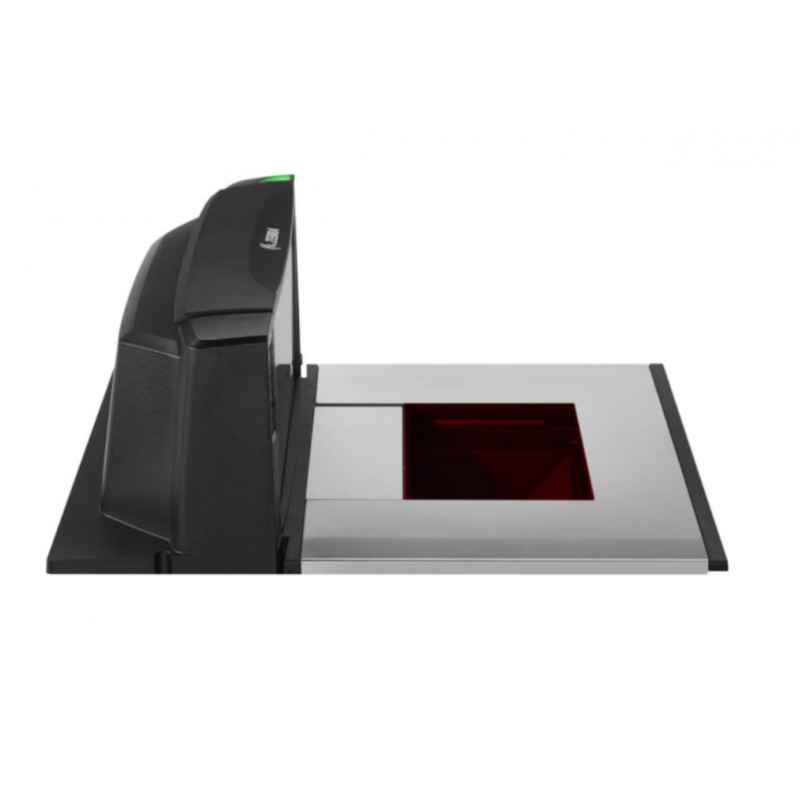

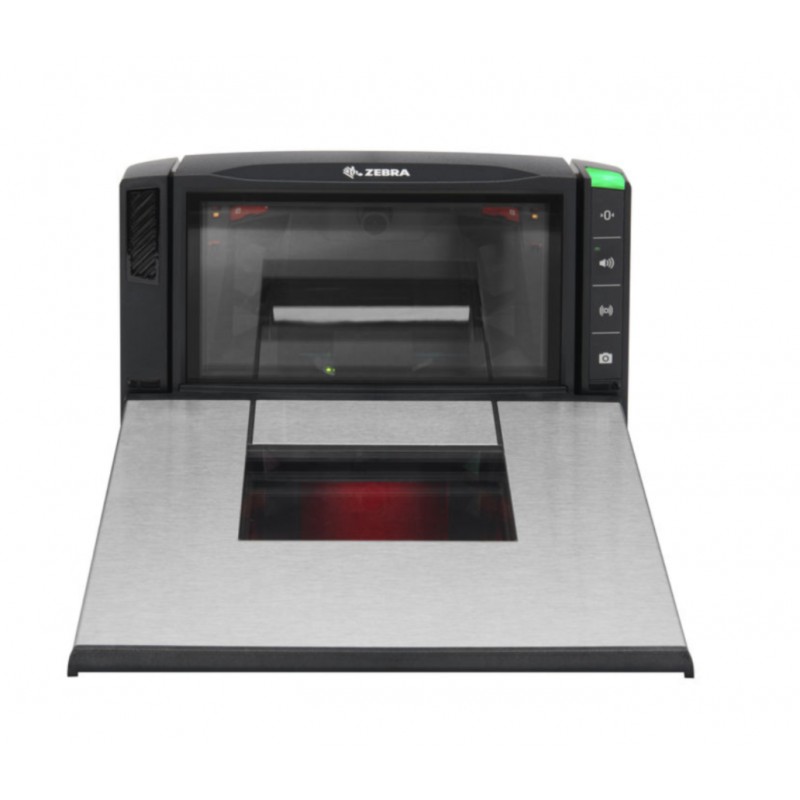

The Zebra MP7200 is a modern bioptic barcode scanner, specifically designed for high-traffic point-of-sale environments. It features a medium-sized scanning surface and a Sapphire glass window, providing high scratch resistance. The device supports Digimarc technology and is scale-ready, allowing both barcode scanning and automatic capture of product weight, helping to streamline checkout processes.

Scan Type: 2D, Digimarc
Form Factor: Embedded, medium platter
Scanning Technology: Multi-plane bioptic imager, CMOS Array Imager

Connection Interface:
1x port supporting multiple communication protocols (USB, RS-232, and IBM RS-485), providing flexibility for connecting to various POS devices
3x USB ports for peripheral connections (e.g., keyboards, card readers, other accessories)
2x RS-232 ports capable of powering connected devices, useful for peripherals requiring port power
Dedicated port for connecting a Checkpoint security system (used in retail for theft prevention)
Port for connecting an external scale display, making the weight visible to both the customer and the operator
Port for connecting a color camera via USB 3 Type-C

Barcodes:
1D: All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D: All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, and future GS1 Digital Link barcodes
Digimarc

Operating Temperature: 0°C – 40°C

Other Features: Sapphire Glass

Indicators:
Touch surface, no physical buttons, wear-resistant
Visible LEDs on front and top for successful scan confirmation
Speaker with adjustable tone and volume for audio alerts
Four programmable buttons for custom functions

Scale Ready:
Maximum static weight allowed on the scale is approximately 136 kg, with an accuracy of approximately 4.5 grams
In metric system, it can measure up to 15 kg, with a precision of 5 grams per increment
Supports two types of cable configuration for POS connectivity and communication:
– Single-cable protocol, where power and data are transmitted through the same cable
– Dual-cable protocol, where power and data cables are separate
Compatible with Mettler scales that include price-computing functions based on weight

Dimensions: 398 x 292 x 101 x 128 mm (L x W x D x H)
Weight: 7.22 kg
Color: Black
