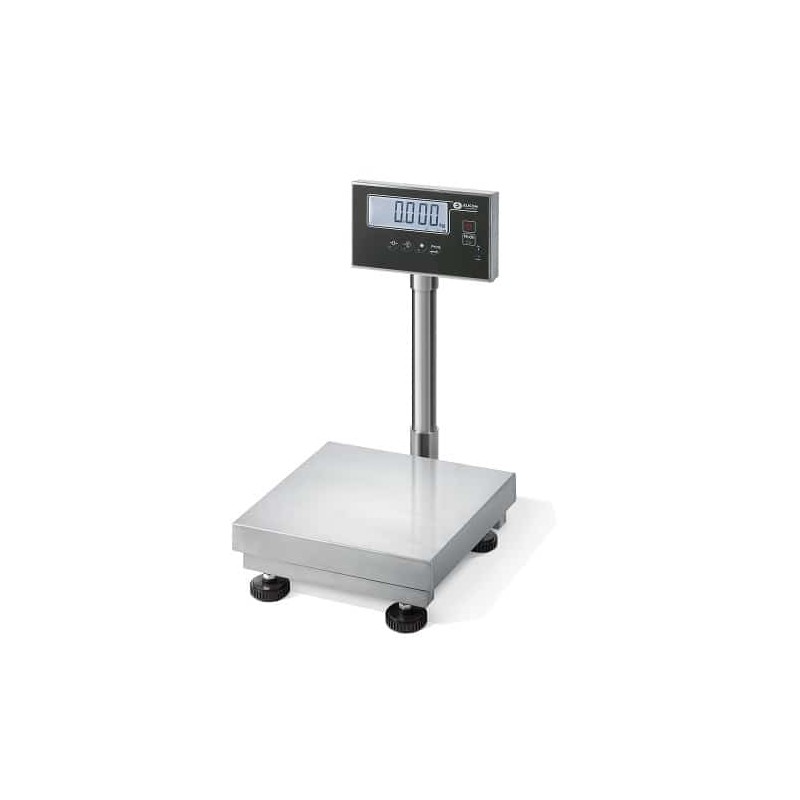

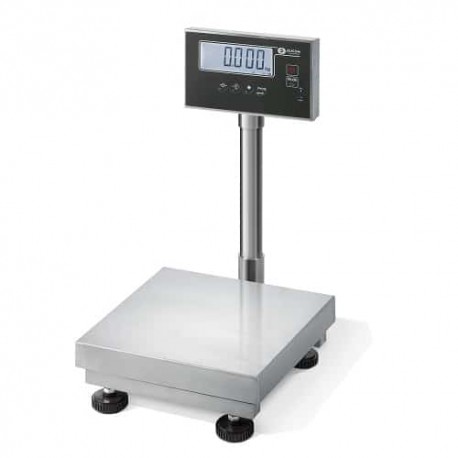

This stainless steel platform scale with column from the E-SS Series has been specially designed for use in the chemical and food industries.

It is ideal for demanding conditions, whether on workbenches, at floor level, or inside vehicles.

The column can be removed, allowing the indicator unit to be mounted elsewhere, such as on a wall, counter, or other support.

The stainless steel platform scale with column can be equipped with various communication options, tailored to the environment or application requirements. Examples include 4…20mA automation modules, Ethernet modules, additional memory, real-time clock with independent power supply, or rechargeable battery for extended autonomous use.

E Series platform scales benefit from the advanced features of their indicator units, enabling use in complex applications, receipt printing, and much more.

Technical Specifications

• Dimensions: 300 x 300 mm

• Division: 5/10 g depending on weighing capacity

• Accuracy class: III

• Material: entirely stainless steel AISI 304

• Structure: robust welded stainless steel

• Load cell: single-point stainless steel, IP68 protection, OIML certified

• EU type approval: 10,000e, 0.3 µV/d

Indicator unit:

• Standard model: Si10S

• Stainless steel housing

• Protection class: IP68

• Multicolor backlight, multifunctional and programmable

• Tactile keyboard with 6 capacitive keys

• Flexible mounting: on column, wall, desk, with adjustable orientation

• Power supply: 100–240 V AC with automatic regulation

• Interface: 2 x RS232

• Junction box: stainless steel

• Optional Li-ion battery: quick replacement access, no service visit required

Additional features:

• Adjustable non-slip feet

• Factory-performed metrological verification

• Certifications: CE certified, compliant with OIML R-76 / EN 45501
