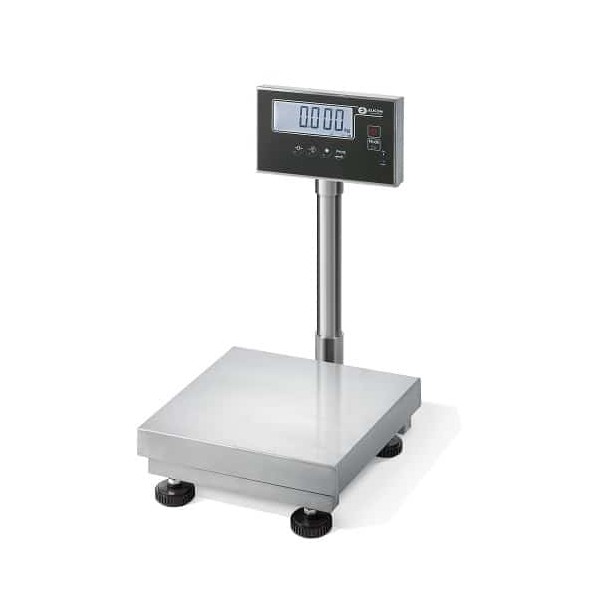

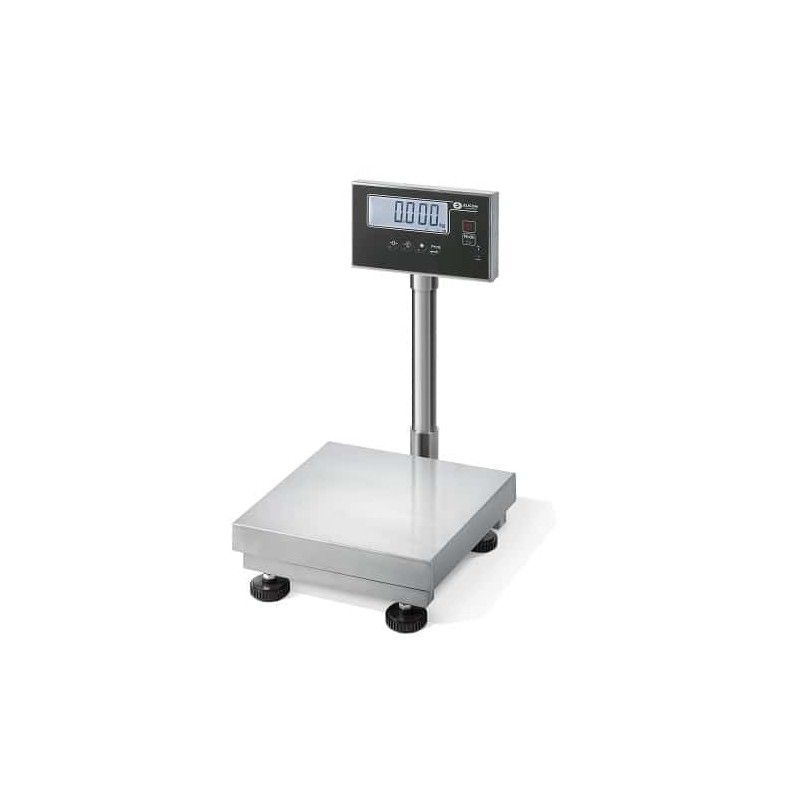

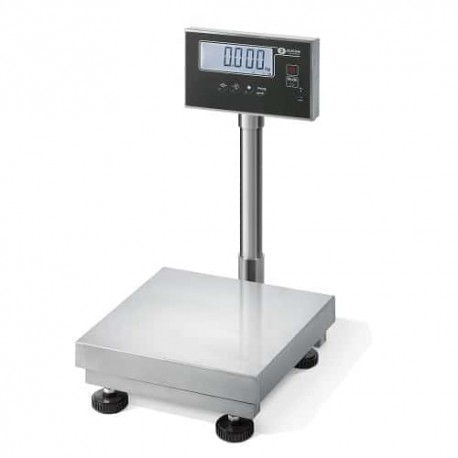

This stainless steel platform scale with column from the E-SS Series has been specially designed for use in the chemical and food industries.

These scales are ideal for demanding conditions, whether used on workbenches, at floor level, or inside vehicles.

The column can be removed, allowing the indicator block to be mounted elsewhere, such as on a wall, counter, or other support.

The stainless steel platform scale with column can be equipped with various communication modules, adapted to environmental or application requirements. Examples include 4…20mA automation modules, Ethernet modules, additional memory, real-time clock with independent power supply, or battery for long-term autonomous use.

The E Series platform scales inherit the advanced features of their indicator blocks, enabling use in complex applications, ticket printing, and more.

Technical Specifications:

• Dimensions: 400 x 500 mm

• Division: 20/50 g depending on capacity

• Accuracy class: III

• Material: fully made of stainless steel AISI 304

• Structure: reinforced, welded stainless steel

• Load cell: single-point, stainless steel, OIML-certified, IP68 protection

• EU type approval: 10,000e, 0.3 µV/d

Indicator block:

• Standard model: Si10S

• Stainless steel housing

• Protection class: IP68

• Multicolor, multifunctional, programmable backlight

• Touch keyboard with 6 capacitive keys

• Flexible mounting: on column, wall, or desk with adjustable orientation

• Power supply: 100–240V AC with automatic regulation

• Interface: 2 x RS232

• Junction box: stainless steel

• Optional Li-ion battery: separate access for quick replacement, no service required

Additional features:

• Adjustable, non-slip feet

• Metrological verification: factory performed

• Certifications: CE certified, compliant with OIML R-76 / EN 45501
