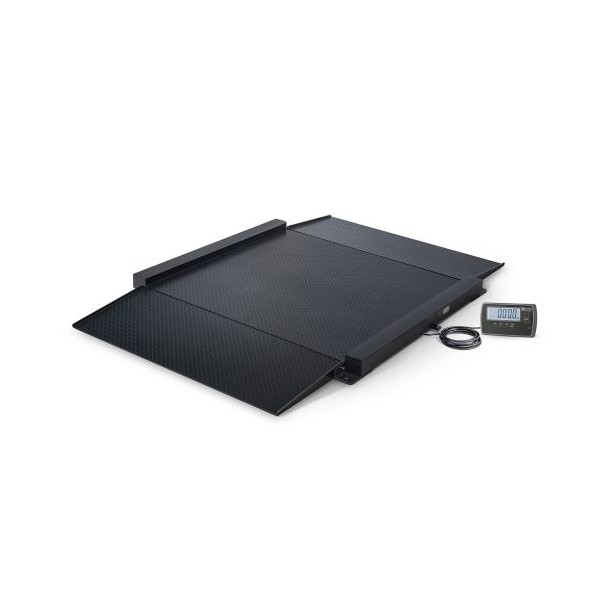

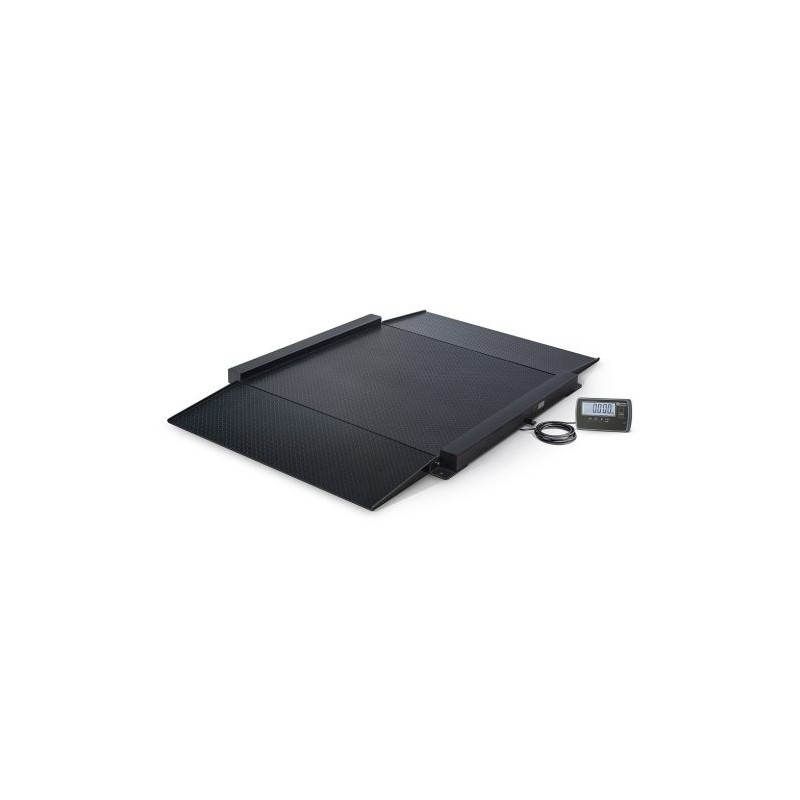

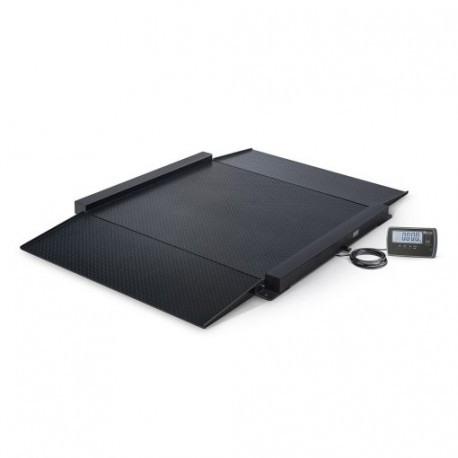

DF Series Platform Scales have a very low profile and a modular design, making them suitable for a wide range of requirements. These platforms are built from 4 mm checkered steel and can be used individually or combined with ramps and stopper frames, depending on operational needs.

They are ideal for confined spaces or situations where the platform needs to be frequently relocated. The compact size and mobility are achieved without compromising robustness and operational safety.

Designed for both industrial and commercial use, DF Series scales are also successfully applied in vehicles or logistics centers where quick weighing of goods is needed and space does not allow for larger installations.

The DF platforms are highly versatile and can be configured with a ramp and stopper frame, requiring minimal space – the optional ramps being only 500 mm long – while ensuring safe use. When space allows, the platform can be fitted with two ramps for easier handling of goods, such as in production processes.

These scales can also be equipped with various communication modules tailored to specific industry requirements, including 4–20mA automation modules, Ethernet modules, extra memory, real-time clock with independent power supply, printers for tickets and labels, or rechargeable batteries for long-term autonomous use.

Thanks to the advanced features of the indicator units, DF Series platform scales can be used in complex applications, such as ticket printing, PC connectivity, and integration with other peripherals, ensuring flexibility and efficiency in daily operations.

Technical Specifications:

• Accuracy Class: III

• Platform size: 750 x 750 mm

• Reinforced platform made of 4 mm checkered steel plate

• Structure: rectangular welded steel tubing

• Side frames for load safety

• Finish: electrostatic powder coating

• Four load cells type EP-4A, OIML certified

• Adjustable anti-slip feet system

• EU type approval: 10,000e, 0.3 µV/d

• Standard indicator: Si10 Intelligent Indicator

• Protection class: IP30

• Multicolor programmable backlight

• Keypad: touch-sensitive with 6 capacitive keys

• Mounting options: column, wall, or desk (with adjustable orientation)

• Power supply: 100–240 V AC, auto-ranging

• Interfaces: 2 x RS232

• Junction box: ABS

• Optional Li-ion battery with quick replacement (no need for service)

• Metrological verification performed at factory

• Certified: CE, OIML R-76 / EN 45501 compliant

• Compatible with all current indicator models and thermal printers

Accessories & Options:

• Optional access ramps

• Optional stopper frames

• Optional mobile indicator stand

⚠️ Note: Transport not included.
