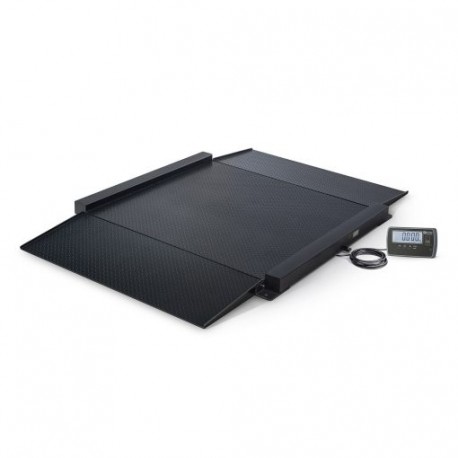

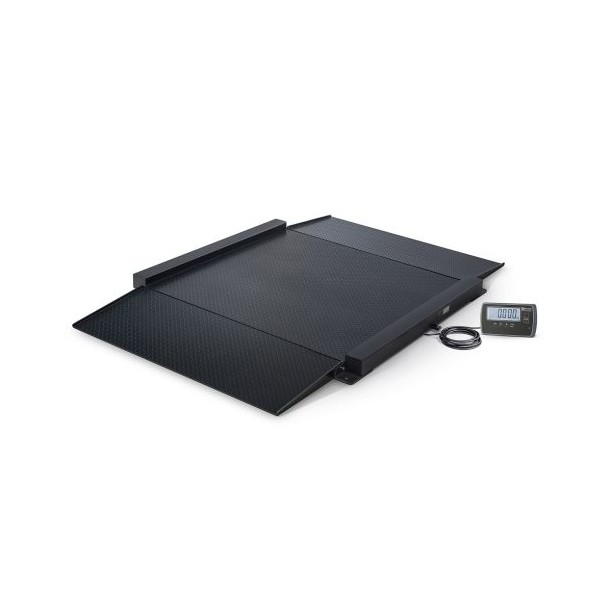

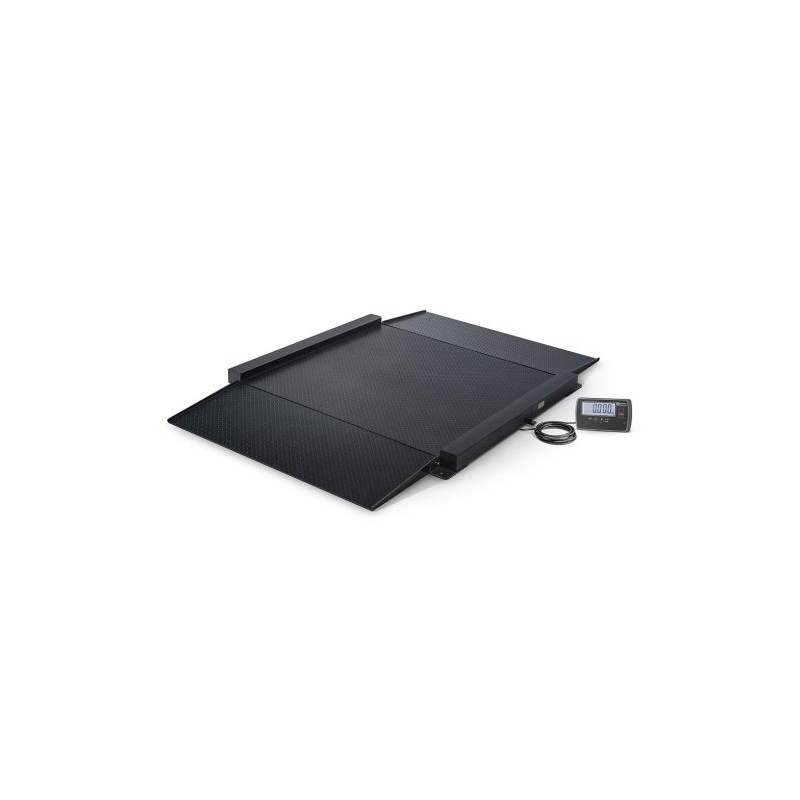

DF Series pallet scales have a very low profile and are modularly designed to meet a wide range of requirements. These platforms are made from 4 mm checkered steel and can be used individually or in combination with ramps and stop frames, depending on needs.

Scales from this series are ideal for confined spaces or situations requiring frequent movement of the platform to different locations. The main advantages of this type of scale are its compact size and mobility, without compromising robustness and safety in use.

Designed for industrial and commercial use, these scales are also successfully used in vehicles or logistics centers, where fast weighing of goods is required and space does not allow the installation of larger systems.

DF Series scales are extremely versatile. They can be used with a ramp and stop frame configuration, occupying minimal space—the optional ramps are only 500 mm long—and provide operational safety. If space allows, the platform can be equipped with two ramps, facilitating goods handling, for example, within a production process.

These platforms can be equipped with various communication options adapted to the specific requirements of the application. Examples include 4...20 mA automation modules, Ethernet modules, additional memory, real-time clock with its own power supply, receipt and label printers, or batteries for long-term autonomous operation.

DF Series pallet scales benefit from the advanced features of the indicator units with which they are equipped, allowing use in complex applications. They can issue weighing receipts, connect to a PC or other peripherals, offering flexibility and increased efficiency in various operational processes.

Technical specifications:

• Accuracy Class: III

• Platform size: 1000 x 1000 mm

• Reinforced platform made from 4 mm checkered steel

• Structure made from welded rectangular steel tube

• Side frames for load safety

• Finish: electrostatic powder coating

• Four EP-4A load cells, OIML certified

• Adjustable anti-slip feet

• EU Type Approval: 10,000e, 0.3 µV/d

• Standard configuration includes Si10 intelligent indicator unit

• Protection class: IP30

• Programmable multicolor backlight

• Touch keypad with 6 capacitive keys

• Mounting: column, wall, desk, with adjustable orientation

• Power supply: 100–240 V AC with automatic adjustment

• Interface: 2 x RS232

• Junction box: ABS

• Optional Li-ion battery with separate access (battery replacement does not require service visit)

• Factory metrological verification

• CE certified and compliant with OIML R-76 / EN 45501 standards

• Compatible with all current indicator units and thermal printers

Accessories and options:

• Optional access ramps

• Optional stop frames

• Optional movable indicator arm

Transport not included.
