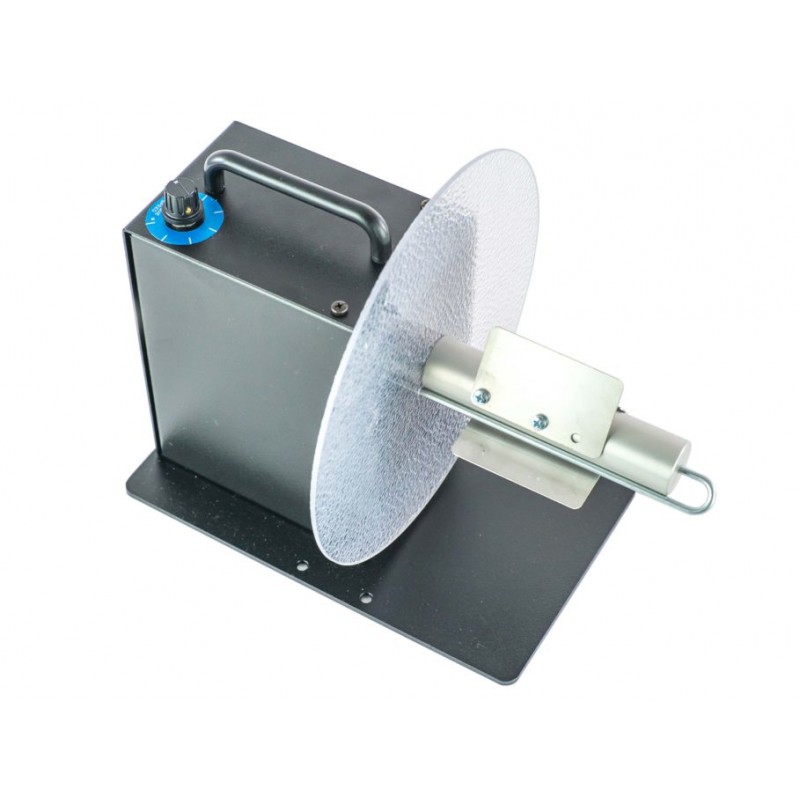

The LabelMate MC-10 label rewinder is a compact and reliable device designed to rewind label rolls up to 125 mm wide and 220 mm in diameter. With a speed of up to 500 mm/second and an integrated potentiometer for torque control, it delivers both performance and flexibility. Thanks to its constant torque technology, no belts, clutches, or tensioning arms are required, ensuring smooth and maintenance-free operation. The MC-10 is a bidirectional unit, which means it can be used both as a rewinder and an unwinder, making it the perfect choice for small desktop or portable label printers. Its solid construction and specially designed motor ensure long-term durability and ease of use, backed by one of the longest warranties in the industry.

Product type: label rewinder
Model: LabelMate MC-10 (Mini-CAT)
Maximum label width: 125 mm
Maximum roll diameter: 220 mm
Core diameter: 38, 40, 44, 70, 76 and 100 mm
Standard roll diameter: 76 mm (compatible)
Working speed: up to 500 mm/second (50 cm/s)
Functions: bidirectional (rewinder/unwinder)
Speed/torque adjustment: integrated potentiometer
Label alignment: internal flange for accurate guiding
Power supply: 15V DC
Warranty: 5 years (1 year for power supply)
