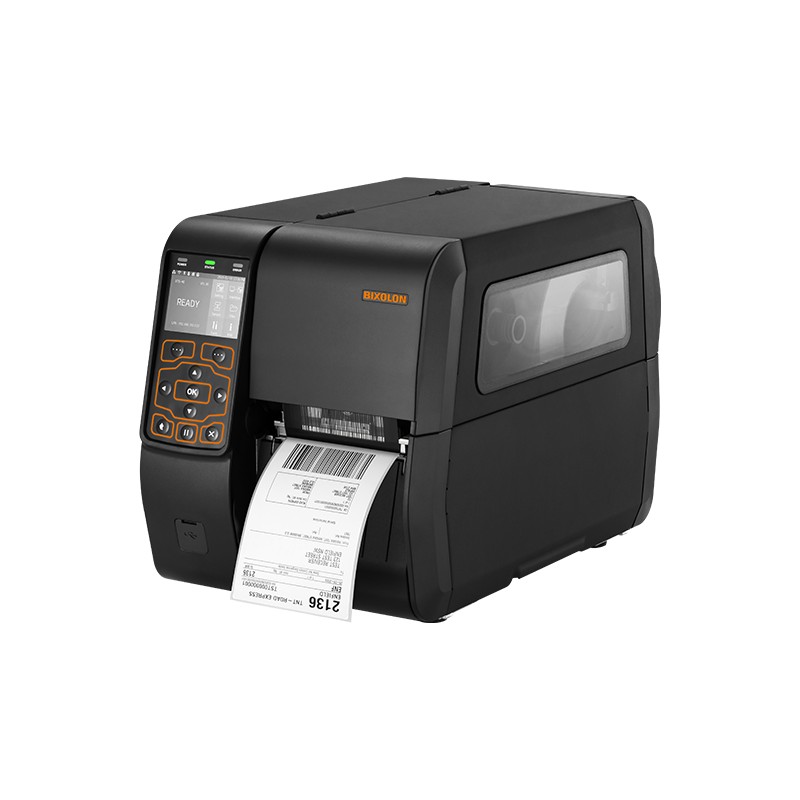

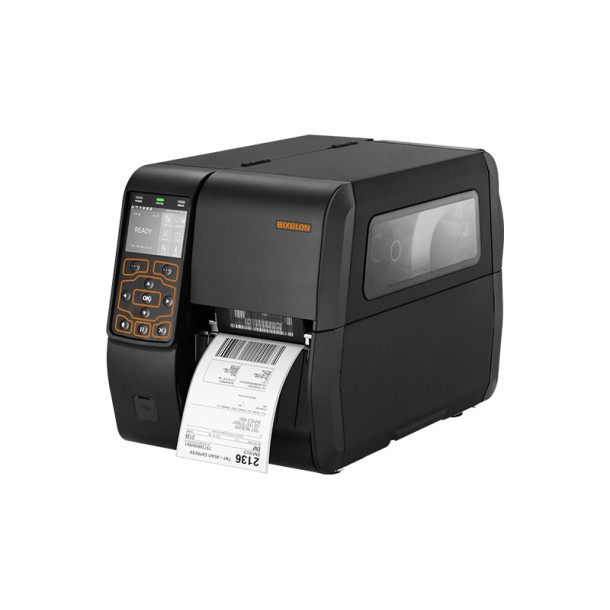

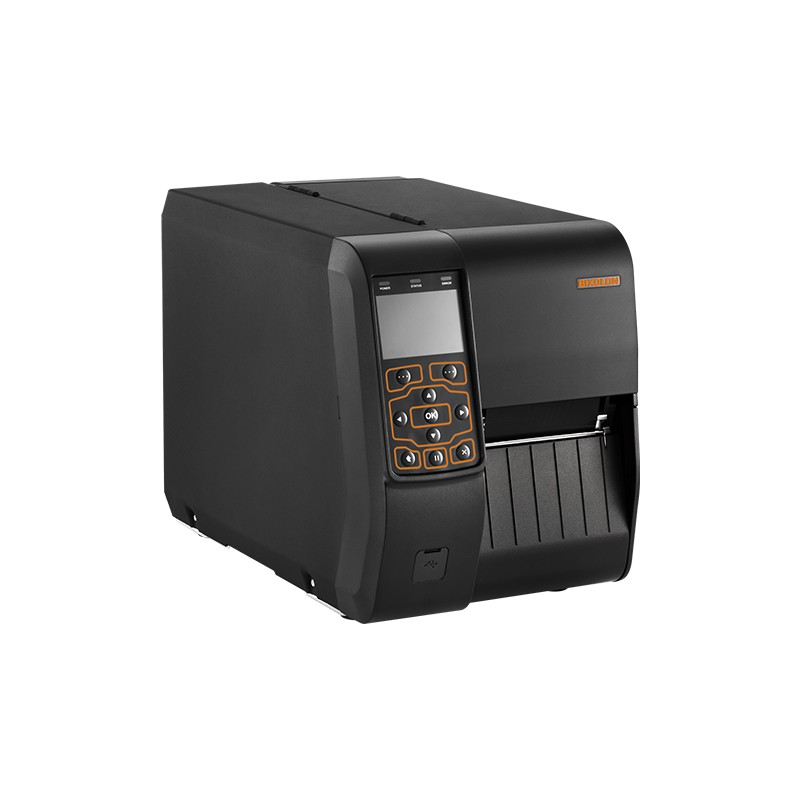

The Bixolon XT5-40 is a high-performance industrial label printer with a resolution of 203 dpi (8 dots/mm), which allows thermal transfer and direct thermal printing, with a maximum speed of 356 mm/s. Equipped with a 3.5-inch color touchscreen, the printer is ideal for demanding applications in manufacturing, logistics, healthcare and retail.

Operator Display: 3.5" Color Touch Screen

Printing Method: Direct Thermal (TD), Thermal Transfer (TT)

Printing Speed ​​(mm/s): Up to 356

Printing Resolution (DPI): 203

Memory: 512 MB Flash, 512 MB RAM

Printable Area (mm): 104

Media Width (mm): 25 ~ 114

Roll Diameter (mm): Max. 203

Media Thickness: 0.06 ~ 0.30 mm

Media Types: Gap, Black Mark, Notch, Continuous, Fan-Fold

Feeding Method: Easy Paper Loading

Ribbon Features:

Type: Wax, Wax/Resin, Resin (Inner/Outer)

Width: 50 ~ 110 mm

Length: Up to 450 m

Inner Diameter: 25.4 mm

Sensors: Transmissive and reflective (adjustable), open head, ribbon end

Supported barcodes: 1D: Codabar, Code 39, Code 128, EAN-13, UPC-A etc.

2D: QR Code, Data Matrix, PDF417, MaxiCode etc.

Programming language: SLCS™, BPL-Z™, BPL-E™, BPL-D™

Interfaces and ports: USB type B, USB Host, RS232 (9-pin), Ethernet 10/100/1000 Mbps

Real-time clock: Included

Operating temperature (°C): +5 ~ +40

Humidity (%): 10 ~ 80% RH

Dimensions (mm): 269 x 490 x 324

Weight (kg): 13.98

Color: Black

Included accessories: Power cable, power supply
