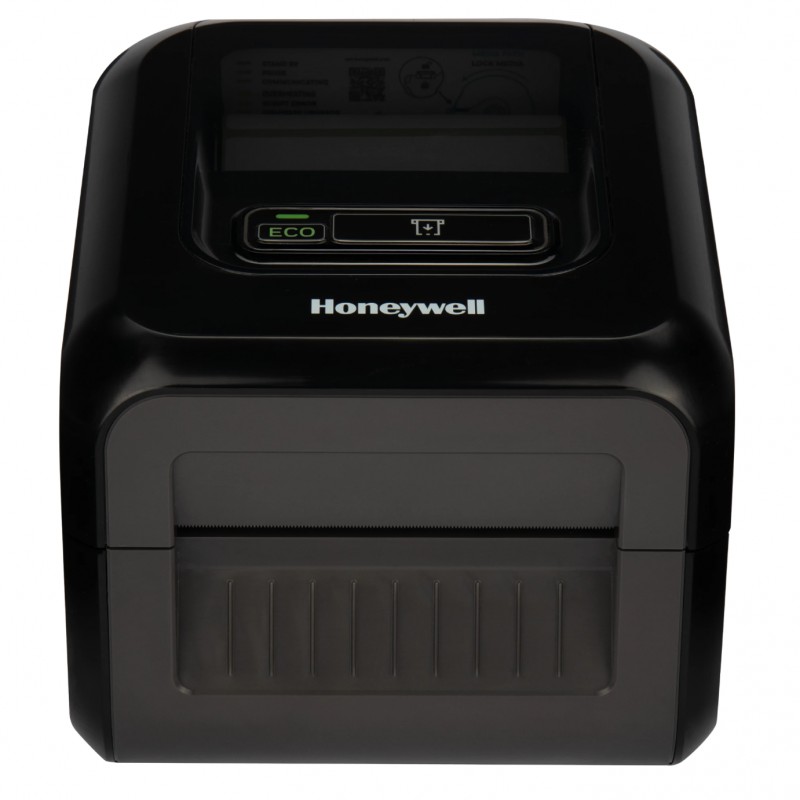

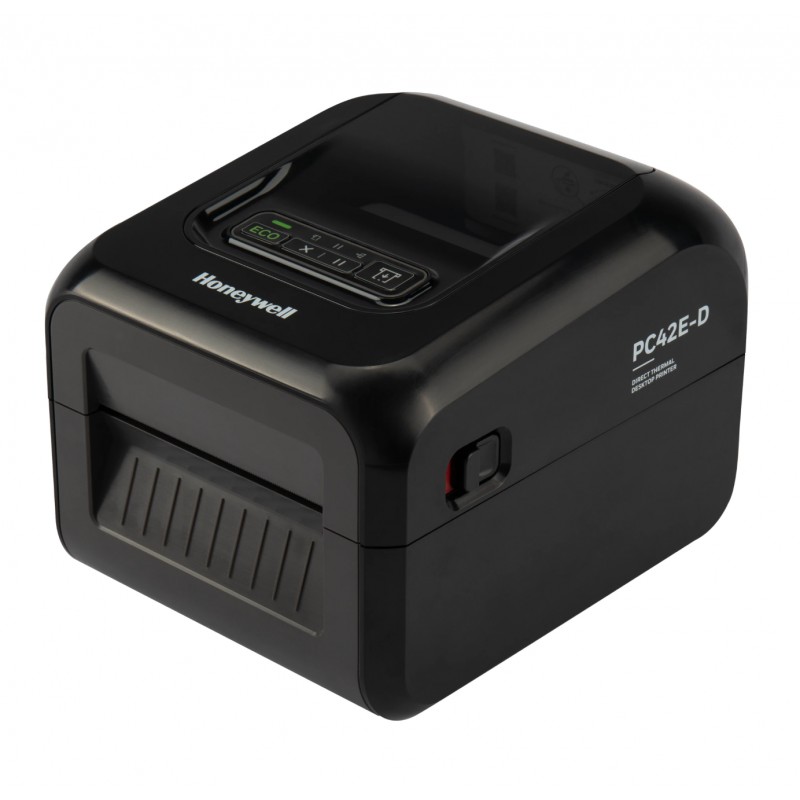

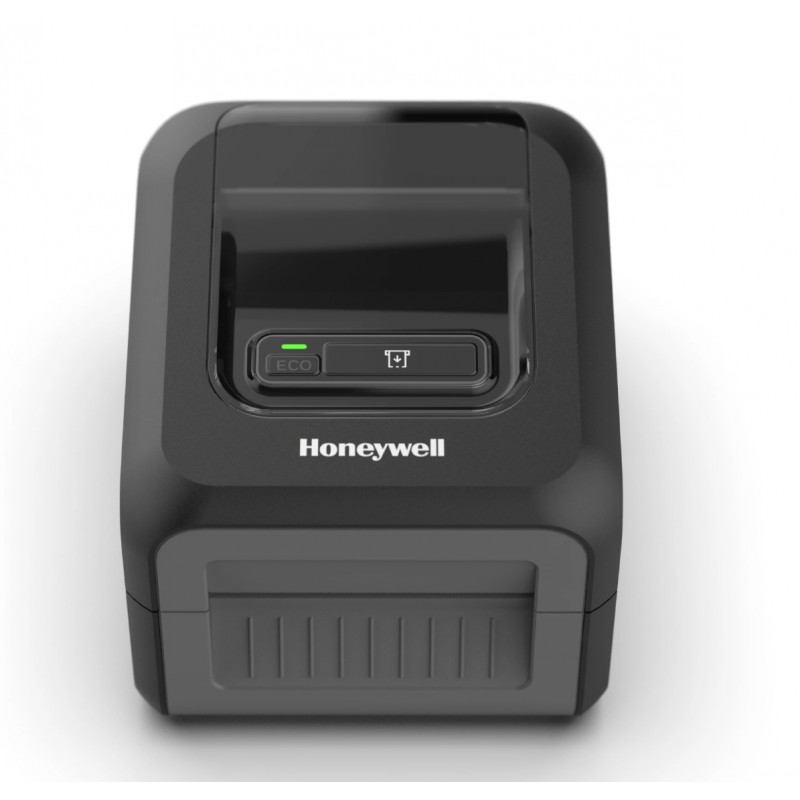

The Honeywell PC42E-D is a direct thermal desktop printer designed for labeling tasks in logistics, retail, and warehouse operations. It provides extended connectivity for integration into various systems and supports stable daily operation. The compact design fits into limited spaces, and the built-in gap and black mark sensors help maintain accurate label alignment during printing.

Technical specifications

Print technology: Direct thermal
Resolution: 300 dpi (12 dots/mm)
Maximum media width: 114 mm
Maximum print width: 108 mm
Maximum roll diameter: 127 mm
Maximum print speed: 152 mm/s (6 ips)
Media sensors: Gap, Black Mark
Minimum media length: 9.6 mm
Maximum print length: 2159 mm
Media thickness: 0.06 mm to 0.19 mm
Media types: Linered labels, tags, continuous media, media with black mark
Memory: 256 MB SDRAM / 256 MB Flash
Standard interfaces: USB Device (Type B), USB Host, RS232, Ethernet
Optional connectivity: Wi-Fi 5 and Bluetooth 5.2 (field installable module)
Dimensions: 222 x 184 x 174 mm
Weight: 1.5 kg
Operating temperature: 5°C to 40°C
Storage temperature: -40°C to 60°C
Humidity: 10% to 90% non-condensing
Power input: 24V DC, 2.5A
Included: power supply unit (power cable C13 ordered separately)
Color: Black
Supported command languages: DP, DPL, ZSim2 (ZPL II), ESim (EPL), XML for SAP, IPL, TPCL
Drivers: Windows, CUPS Linux, Honeywell Device Types for SAP
Optional accessories: Platen roller, printhead, peeler, cutter, Wi-Fi/Bluetooth module, low media sensor
