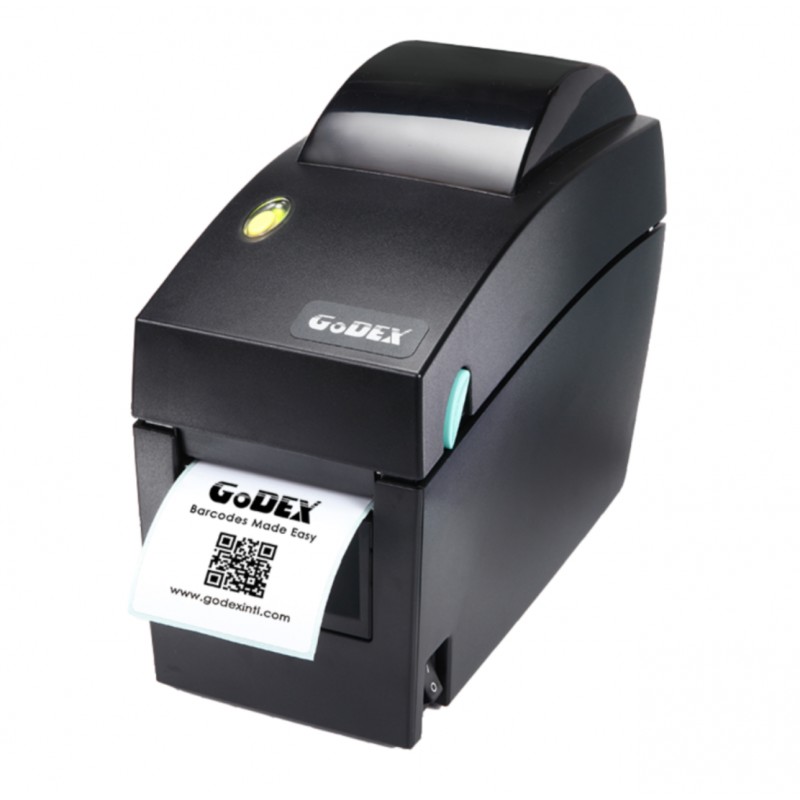

This direct thermal label printer is designed for barcode and label printing applications in retail, logistics, warehousing, and production environments. With a print resolution of 203 DPI and print speeds of up to 177 mm/s, it supports the creation of labels for product identification, inventory management, and shipping operations.

The printer features USB, Serial, and Ethernet connectivity options, allowing integration into different workflows and systems. Equipped with a 32-bit RISC processor, LED status indicator, transmissive and reflective sensors, and Real Time Clock (RTC) functionality, it supports a wide range of barcode formats and printing requirements.

Technical Specifications

Printer Type: Industrial Label Printer

Print Method: Direct Thermal

Interface:
USB 2.0
Serial: RS-232 (DB-9)
IEEE 802.3 10/100Base-Tx Ethernet (RJ-45)

Print Speed: 177 mm/s

Print Resolution: 203 DPI

Memory: 4 MB Flash, 16 MB RAM

Display: LED Indicator

Printable Width: 54 mm

Supported Barcodes:
1D: Code 39, Code 93, EAN 8 / 13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49 and Cadablock

2D: PDF417, DataMatrix, MaxiCode, QR Code, Micro PDF417, Micro QR Code, Aztec Code

Included Software:
Label Design Software: GoLabel (EZPL only)
Drivers: macOS, Linux, Windows 2000 / XP / Vista / Windows 7 / Windows 8.1
DLL: Win CE, .NET, Android, Windows Mobile, Windows 2000 / XP / Vista / Windows 7 / Windows 8.1

Power Supply: External Power Supply
Auto Switching 100-240VAC, 50-60Hz

Other Features:
Processor: 32 Bit RISC CPU
Sensors: Fixed transmissive sensor, reflective sensor, center alignment
Printer Languages: EZPL, GEPL, GZPL auto switch
Real Time Clock (RTC) standard
Approvals: CE (EMC), FCC Class A, CB, CCC, cUL

Dimensions: 218 x 172 x 100 mm

Color: Black

Weight: 1.2 kg

Operating Temperature: 5°C - 40°C

Humidity: 30-85%, non-condensing
