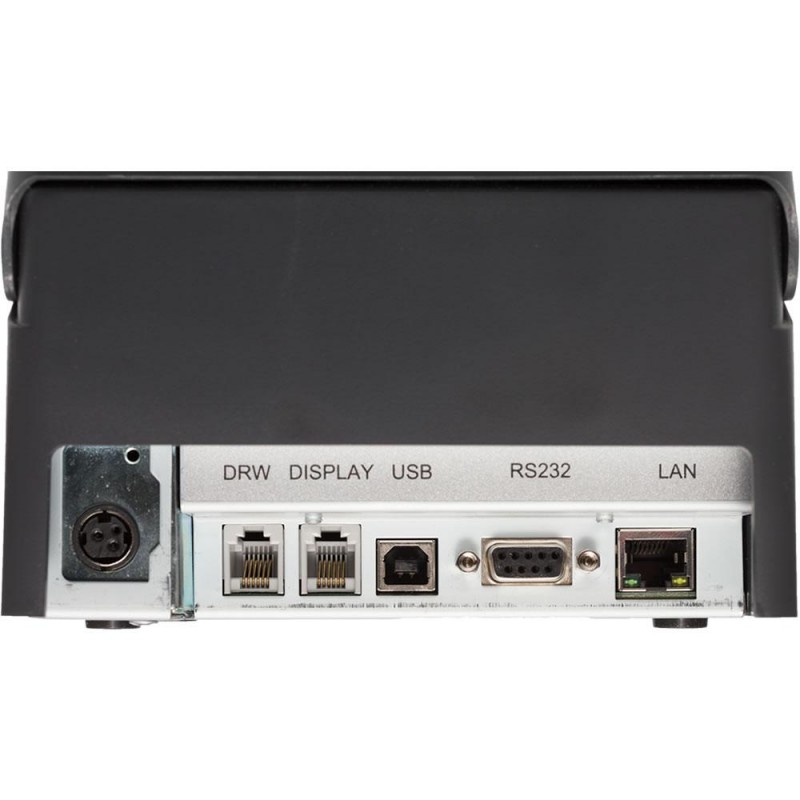

Printer technical details:
- 1 x LAN (RJ45)
- 1 x USB
- 1 x RS232C
- 1 x cash drawer (RJ11)
- 1 x customer display (RJ11)
- Built-in GSM / GPRS modem;

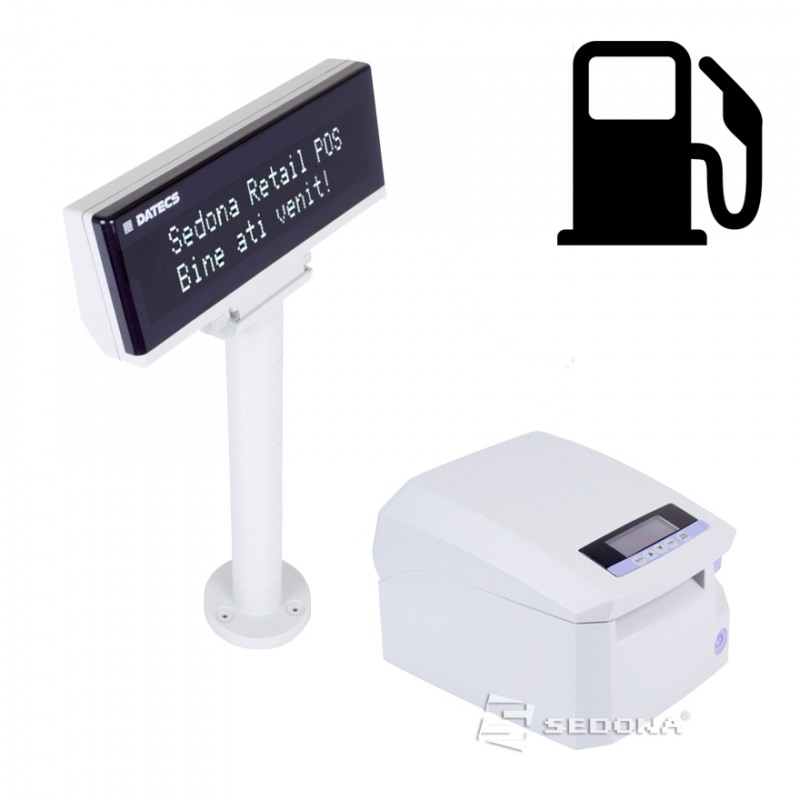

Client display: Compact DPD501 - standard
It allows the printing of fiscal and non-fiscal receipts (such as invoices).
Two types of compatible thermal paper rolls:
- Width 57 mm, thickness from 60 to 72 µm, diameter of the roller up to 86 mm (usual 60m length).
- Width 79 mm, thickness from 60 to 72 µm, roll diameter up to 86 mm (usual 60m length).
PLU article names up to 72 characters. Characters per line: 42.
Graphic printing: graphic logo or barcodes, size 576 х 96 dots (max. 576 x 336 dots).
Memory of articles: 200,000
Tax types: 5 programmable VAT rates; 1 x VAT exempt; 1 x Other Taxes
Nr. operators: 30
Electronic logbook: Yes - 16GB micro SD card (microSD card capacity supported up to 32GB).
Cryptographic Module - EAL 5+
Electronic signature - X.509.V3, RSA 2048 bits
Fiscal memory: Non-volatile, 2500 daily closing reports.
Print Speed: 200 mm / second.

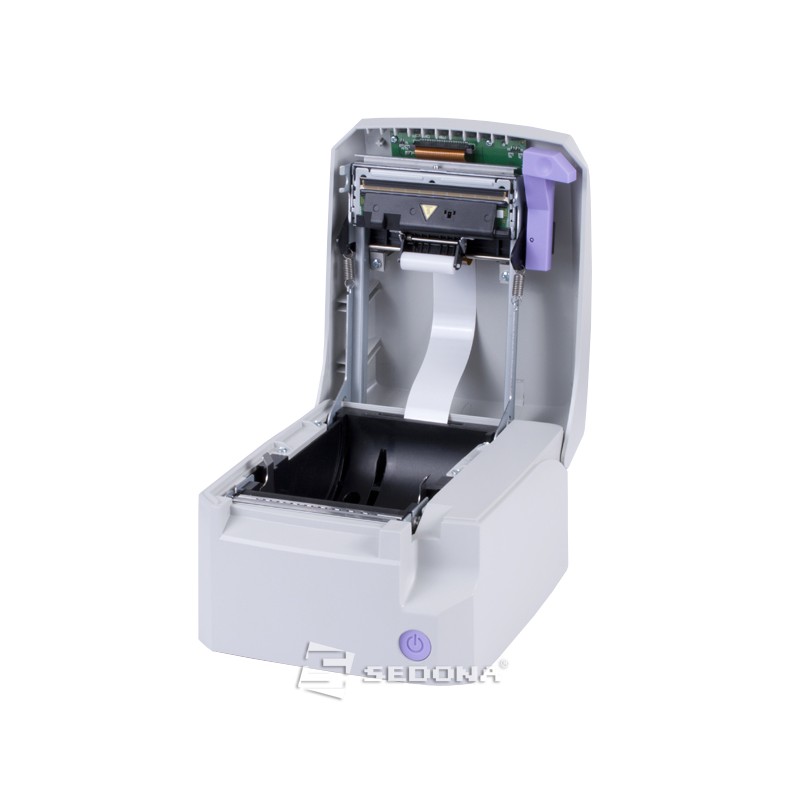

Thermal printer: SE1-33 (SK133)

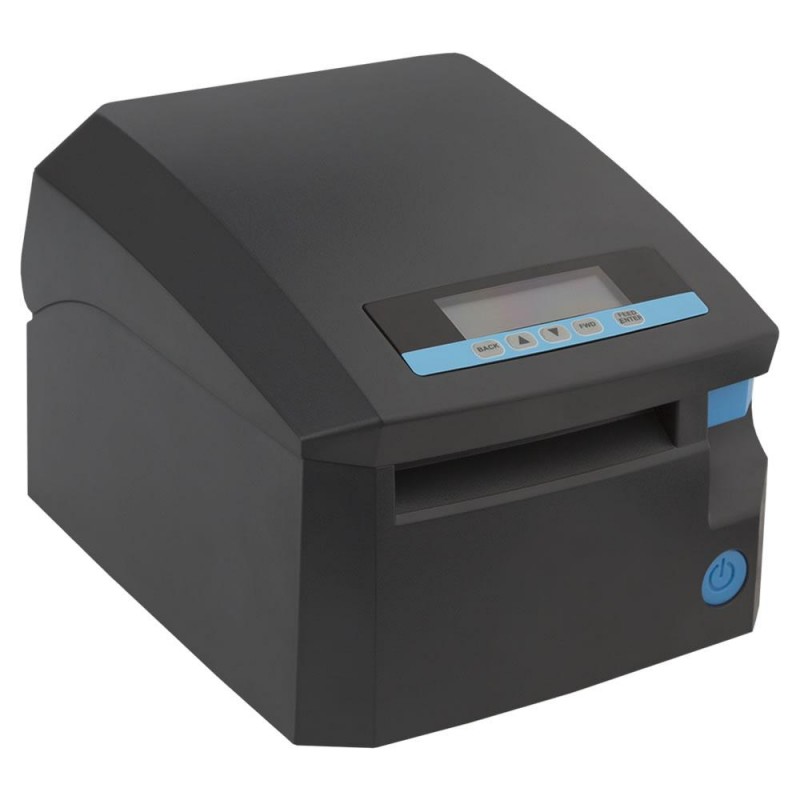

Housing color: black or white. Pt. to check the color variant available in stock please contact us.
Dimensions: 145 (l) x 186 (L) x 141 (H) mm
Weight: 1.7 kg (with paper roll included; no customer display)
Made in Bulgaria.
Technical details compact DP501 client display:
2 lines x 16 characters (128x32 points)
Display type: LCD graphic
Power supply via serial cable
Dimensions: 130 (l) x 65 (L) x 270 (H)
Weight: 366 g
1 year warranty.
The price includes: Intervention book, Special register, power supply, RS232 connection cable.
Optional accessories: USB connection cable; Ethernet connection cable; miniUSB memory stick (for electronic logbook).
The obligatory placards "Keep the receipt" and "Consumer protection" are delivered free of charge if requested.
