Integrated with Sedona software solutions and other POS programs.

Compatible with two types of rolls: 79 mm or 57 mm width, 86 mm diameter.

Front receipt output. Equipped with auto-cutter.

5 connection ports. Black or white casing. Printing speed: 200 mm/sec.

Compatible with compact DPD501 display and large DP201 display.

Printer Technical Details:

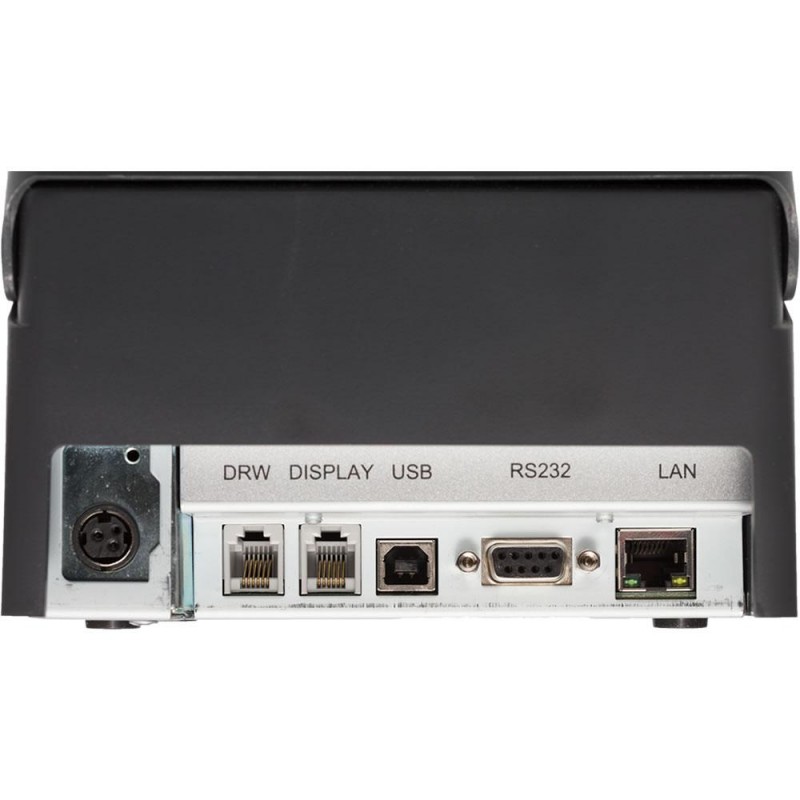

Connectivity interfaces:

• 1 x LAN (RJ45)

• 1 x USB

• 1 x RS232C

• 1 x cash drawer (RJ11)

• 1 x customer display (RJ11)

• Built-in GSM / GPRS modem

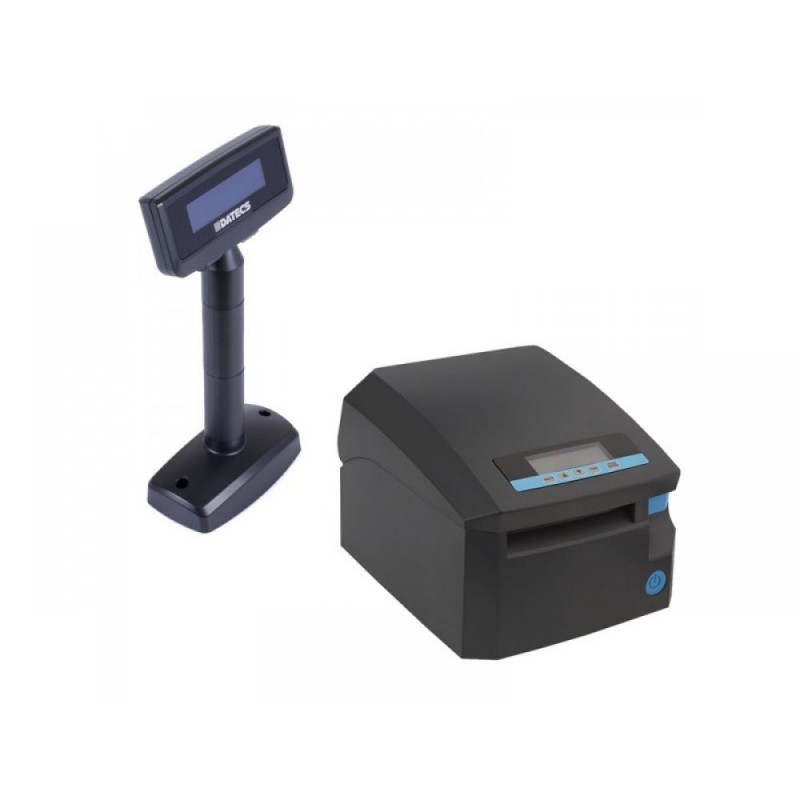

Customer display options:

• Compact DPD501 – standard

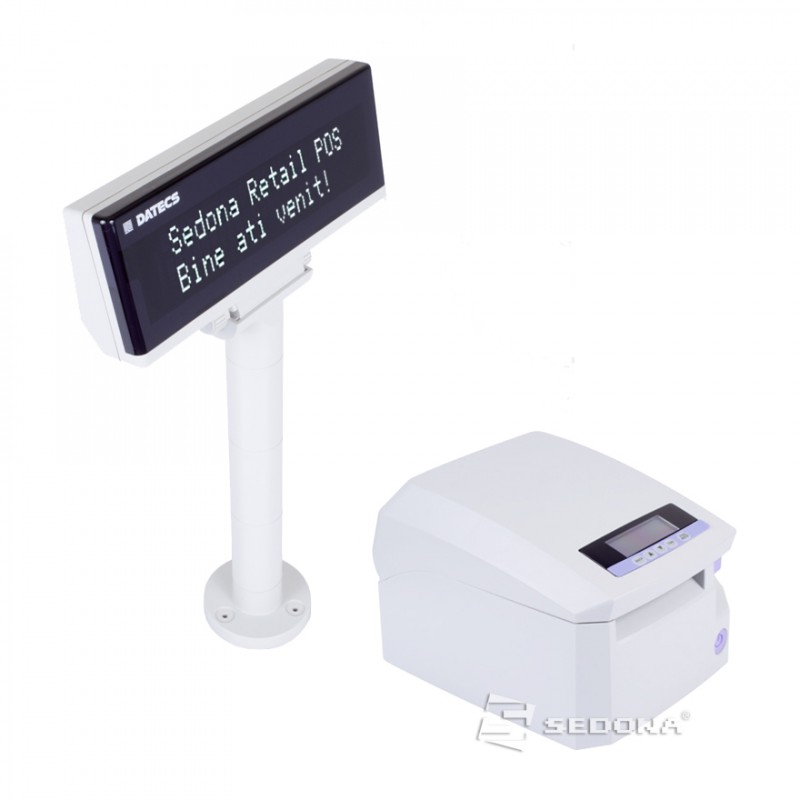

• Large DPD102 – optional (shown in image)

• Without display – with a compatible customer display. The printer is designed not to function without a connected display.

Supports printing of fiscal and non-fiscal receipts (such as invoices).

Compatible thermal paper rolls:

• Width 57 mm, thickness 60–72 µm, roll diameter up to 86 mm (typically 60 m length)

• Width 79 mm, thickness 60–72 µm, roll diameter up to 86 mm (typically 60 m length)

PLU item names up to 72 characters. Characters per line: 42.

Graphic printing: graphic logo or barcodes, size 576 х 96 dots (max. 576 x 336 dots).

PLU memory: 200,000 items.

Tax types: 5 programmable VAT rates; 1 x VAT exempt; 1 x Other Taxes.

Number of operators: 30.

Multiple programmable payment methods.

Electronic journal: Yes – 16GB microSD card (supports microSD cards up to 32GB).

Cryptographic module: EAL 5+.

Electronic signature: X.509.V3, RSA 2048-bit.

Fiscal memory: Non-volatile, 2,500 daily closure reports.

Supported barcodes: EAN8, EAN13, Code128, interleaved 2of5, QR code.

Printing speed: 200 mm/sec.

Thermal printer: SE1-33 (SK133).

Keyboard: 5 keys.

Internal clock and calendar battery: ensures operation for 90 days after disconnection from power source.

Operating temperature and humidity: -10°C to +40°C / relative humidity without condensation 40–80%.

Casing color: black or white. To check available stock colors, please contact us.

Power supply: DC 24V / 2A, input: 100-240V 50-60Hz.

Dimensions: 145 (W) x 186 (D) x 141 (H) mm.

Weight: 1.7 kg (with paper roll included; without customer display).

Made in Bulgaria.

Compact Customer Display DP501 – Technical Details:

• 2 lines x 16 characters (128x32 dots)

• Display type: Graphic LCD

• Connectivity: RS-232C

• Power supply via serial cable

• Dimensions: 130 (W) x 65 (D) x 270 (H) mm

• Weight: 366 g

Customer Display DP201 – Technical Details:

• 2 lines x 20 characters

• Display type: Vacuum Fluorescent

• Connectivity: RS-232C

• Power supply via serial cable

• Dimensions: 240 (W) x 50 (D) x 420 (H) mm

• Weight: 715 g

Warranty: 1 year.

Price includes: Service logbook, special register, power adapter, RS232 connection cable.

Optional accessories: USB connection cable; Ethernet connection cable; miniUSB memory stick (for electronic journal).

Mandatory plates “Keep the receipt” and “Consumer Protection” are provided free of charge upon request.
