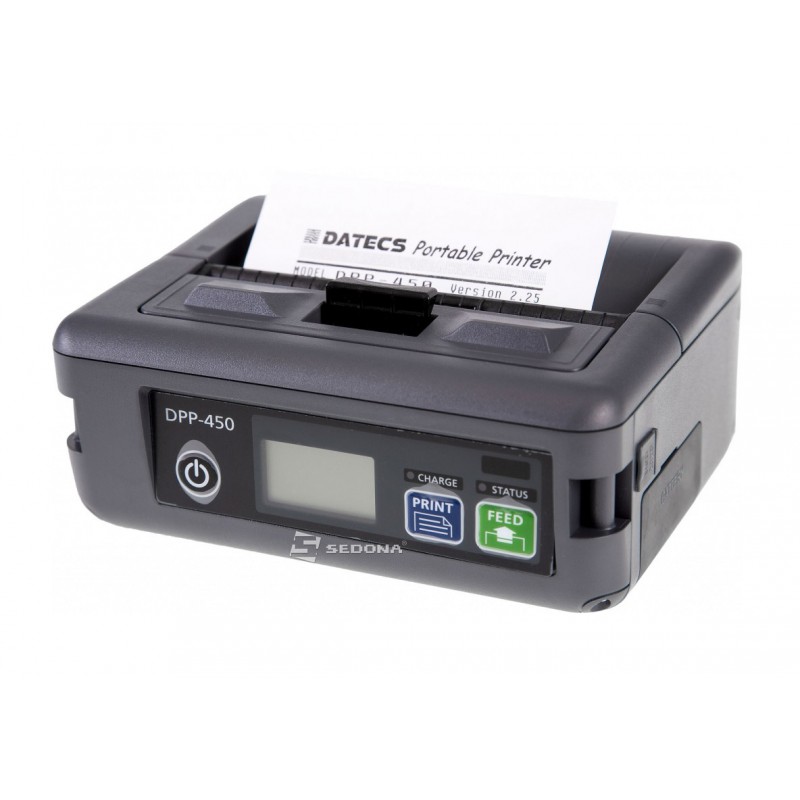

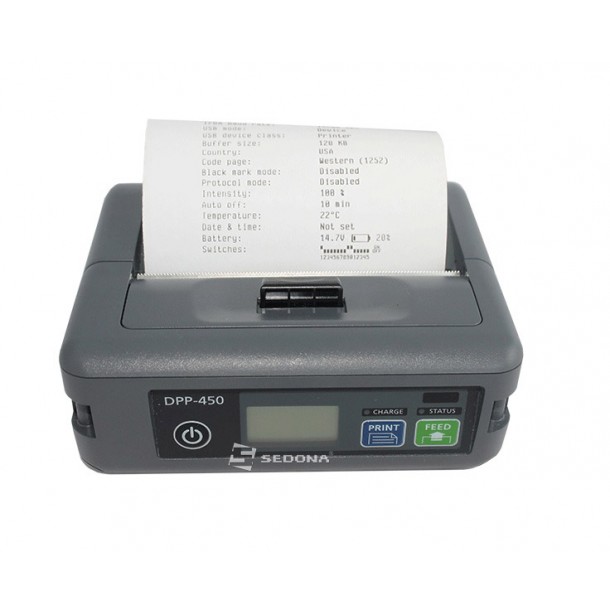

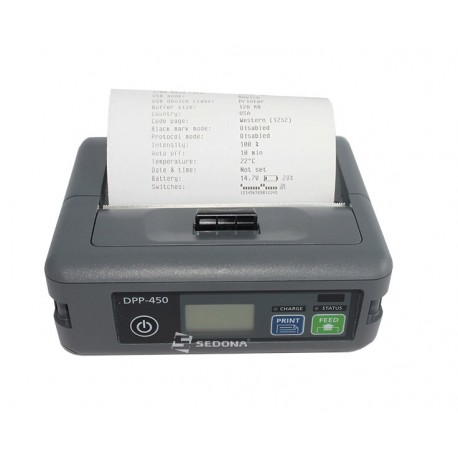

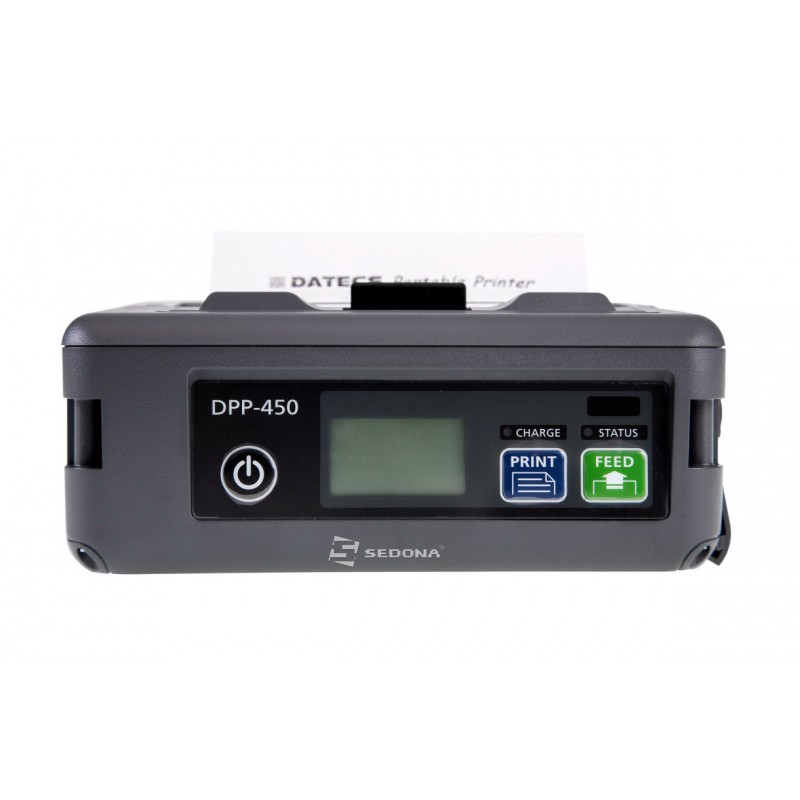

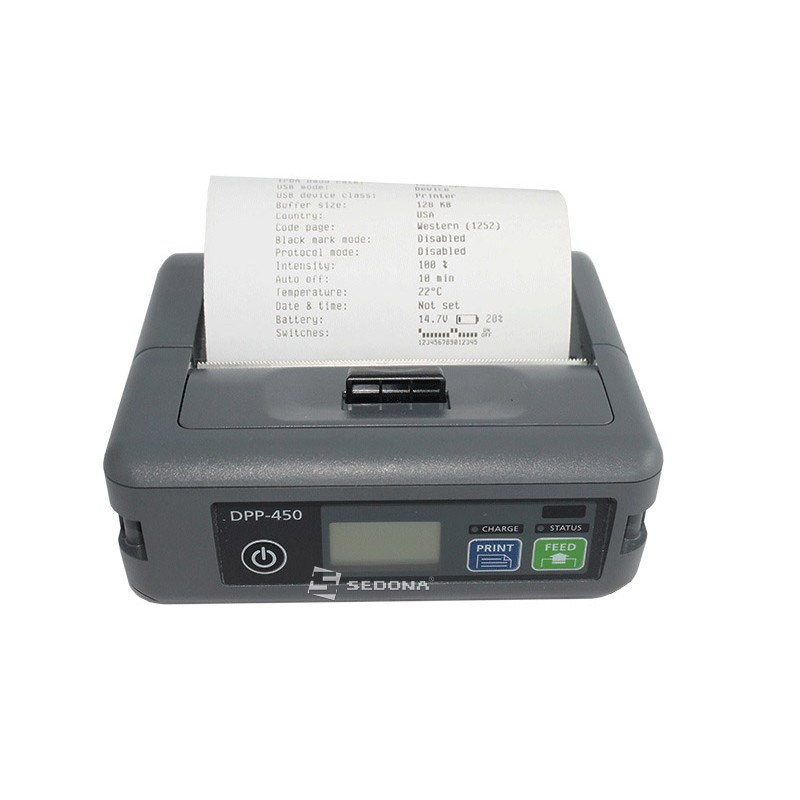

DATECS DPP-450 is a mobile ESC/POS and LABEL thermal printer. It can be used in dynamic working conditions and its abundant built-in features allow it to be widely used for different applications.

Printing Mechanism: Direct line thermal printer

Printing Width: 104 mm (832 dots)

Printing Resolution: 203 x 203 dpi (8 x 8 dpmm)

Printing Speed Max: 150 mm per second

Printable Font Sizes: Font A - 12 x 24 dots (48 characters per line)

Font B - 9 x 16 dots (64 characters per line)

Printable Barcode Types 1D: EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, Interleaved 2 of 5, Codabar, Code 93

2D: PDF417, QR Code

Paper Type: Thermal paper rolls

Paper Width: 50 to 115 mm

Paper Thickness: 59 to 154 μm

Roll Max Diameter: 58 mm

Paper Loading: Easy paper loading

Post Printing Features: Cutter

Operator Display: 128 x 64 px Monochrome LCD

Connectivity Bluetooth 2.0 class 2 (Serial Port Profile)

OS Compatibility Windows, Android, iOS

LED Indication Battery low

Battery charging

Paper end

Cover open

Overheating

Power Supply AC 100 to 240 V, 50 to 60 Hz, DC 19 V, 5.2 A

Battery Rechargeable Li-Ion battery 14.4 V, 2200 mAh

2.5 hours charging time

20 000 lines with one charge

Reliability 15 million lines (Mechanism)

50 km (Thermal head)

Certificates CE

Dimensions (W x D x H) 157 x 138 x 67 mm

Weight 785 g

Operational temperature range -15 to 50 °C, 30 to 85 % RH

Storage temperature range -20 to 60 °C, 10 to 90 % RH

Drop Tested 1 m, 3 times, all sides on concrete
