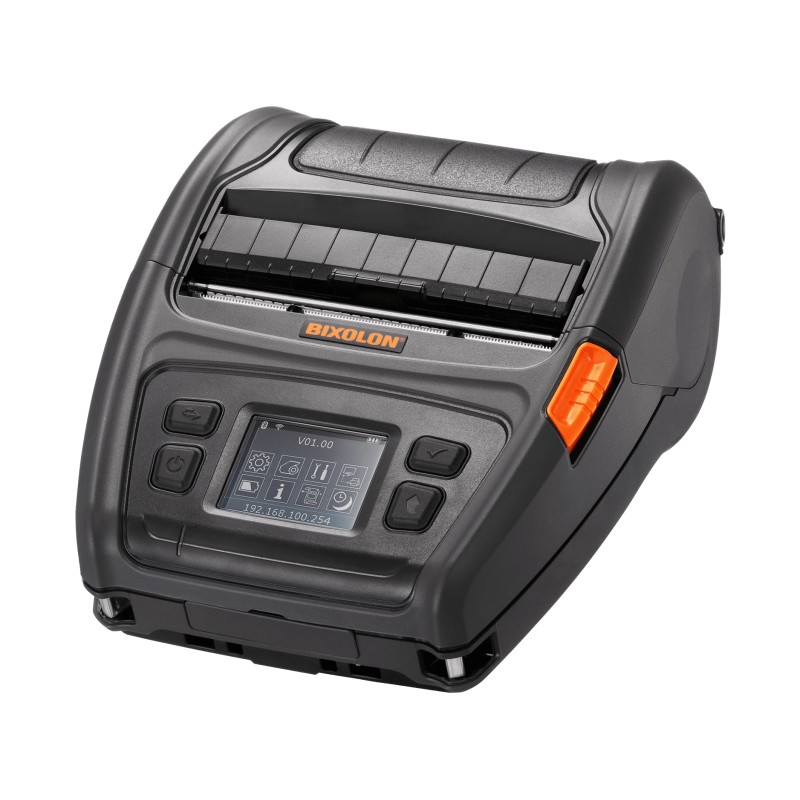

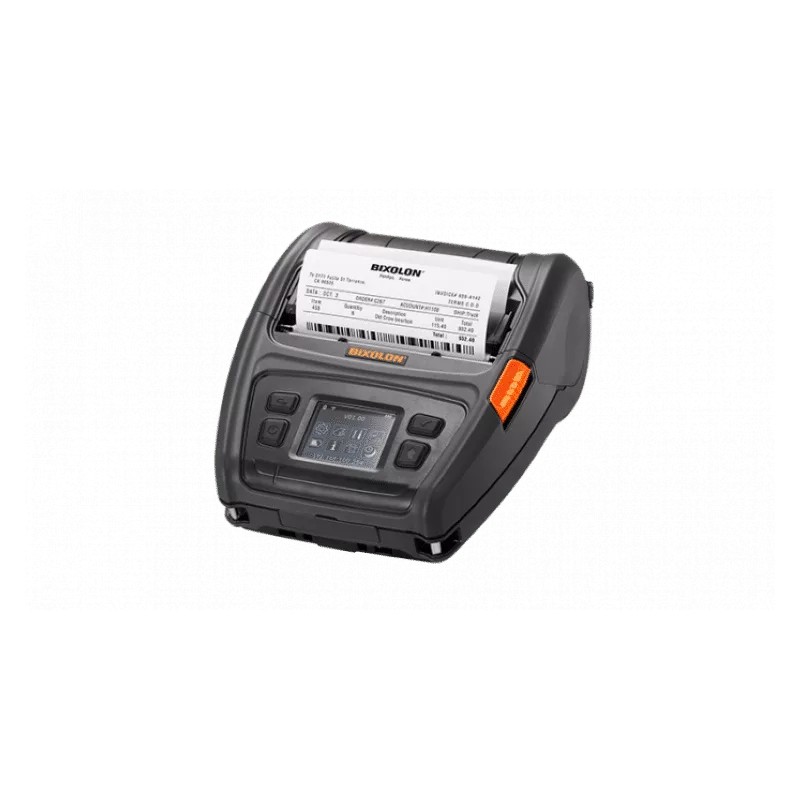

The Bixolon XM7-40 is a 4" (104 mm) industrial mobile printer with direct thermal printing technology, ideal for standard and linerless labels in demanding environments such as logistics, manufacturing, transportation and distribution. With a resolution of 203 dpi and a speed of up to 127 mm/s, the XM7-40 offers excellent performance and is equipped with a TFT color display, IP54 protection and shock resistance up to 1.8 meters.

Operator display: TFT LCD color display (240 x 320 pixels)

Printing method: Direct thermal (TD)

Printing speed (mm/s): Up to 127

Printing resolution (DPI): 203

Memory: 256 MB Flash, 128 MB RAM (optional: 512 MB Flash, 256 MB RAM)

Printable area (mm): 104

Media width (mm): 50 ~ 112

Roll Diameter (mm): Max. 66

Media Thickness: 0.07 ~ 0.19 mm

Media Types: Liner, Notch, Receipt, Optional: Linerless, RFID (XM7-40R only)

Power Supply Method: Easy Paper Loading

Battery Features:

Type: Li-ion, Rechargeable (Smart Battery)

Capacity: 7.2 V, 6800 mAh (nominal)

Protection: IP54, Drop Resistant up to 1.8 m

Sensors: Paper End, Gap, Black Mark, Cover Open, Peeler

Supported Barcodes:
1D: Codabar, Code 39, Code 128, EAN-13, UPC-A etc.
2D: QR Code, Data Matrix, PDF417, MaxiCode etc.

Programming Language: SLCS™, BPL-Z™, BPL-C™, BXL/POS
(RFID Model: SLCS, BPL-Z™)

Interfaces and Ports: USB 2.0, RS232, Bluetooth V5.0 (MFi certified), NFC, optional WLAN

OS Compatibility: Android, iOS, Windows

Operating Temperature (°C): -15 ~ +50

Humidity (%RH): 10 ~ 80%

Dimensions (mm): 158 x 186 x 82

Weight (kg): 1,090 (with battery)

Color: Black

Included Accessories: 6800 mAh Li-ion Battery
