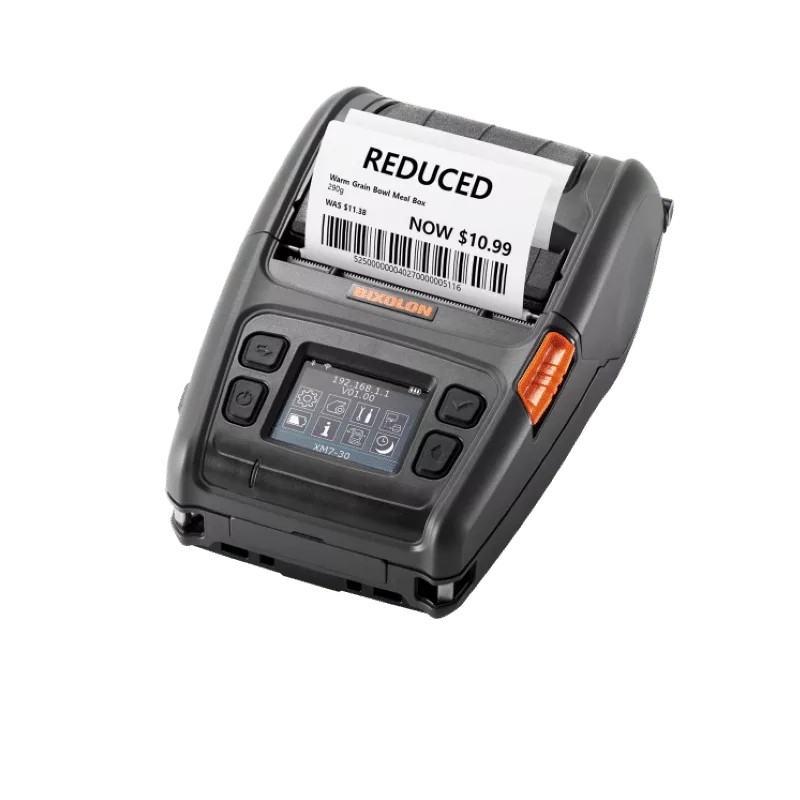

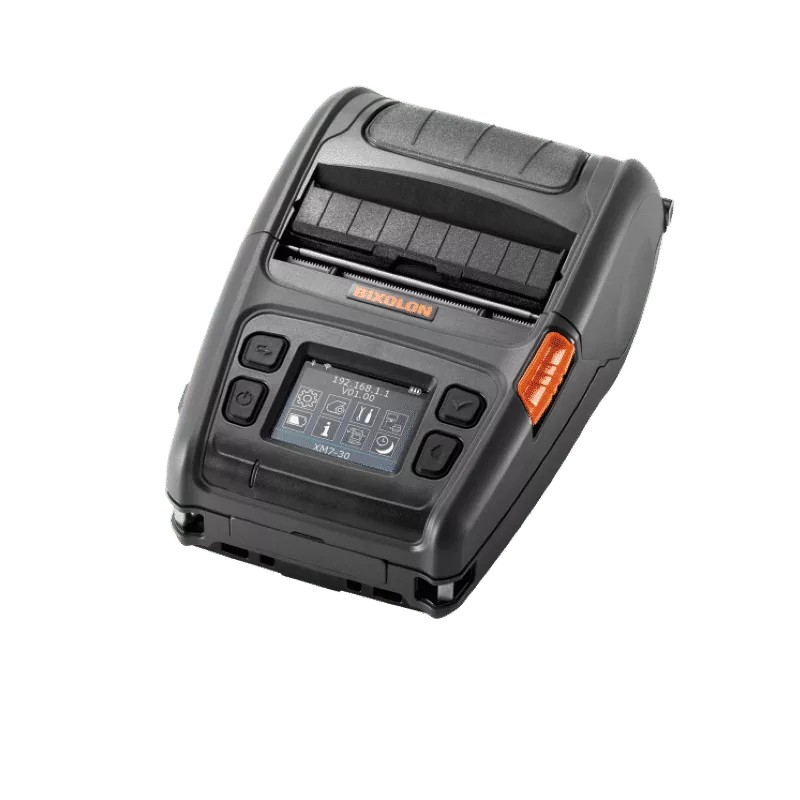

The Bixolon XM7-30 is a high-performance mobile industrial label printer with a resolution of 203 dpi (8 dots/mm), ideal for direct thermal printing of both standard labels. With a maximum print speed of 127 mm/s and a compact design, the XM7-30 is shockproof (up to 2.1 m), IP54 certified and equipped with a TFT color display, making it ideal for applications in logistics, production, transport and retail.

Operator Display: TFT LCD Color Screen (240 x 320 pixels)

Printing Method: Direct Thermal (TD)

Printing Speed ​​(mm/s): Up to 127

Printing Resolution (DPI): 203

Memory: 256 MB Flash, 128 MB RAM (optional: 512 MB Flash, 256 MB RAM)

Printable Area (mm): 72

Media Width (mm): 25 ~ 80

Roll Diameter (mm): Max. 66

Media Thickness: 0.07 ~ 0.19 mm

Media Types: Liner, Notch, Receipt

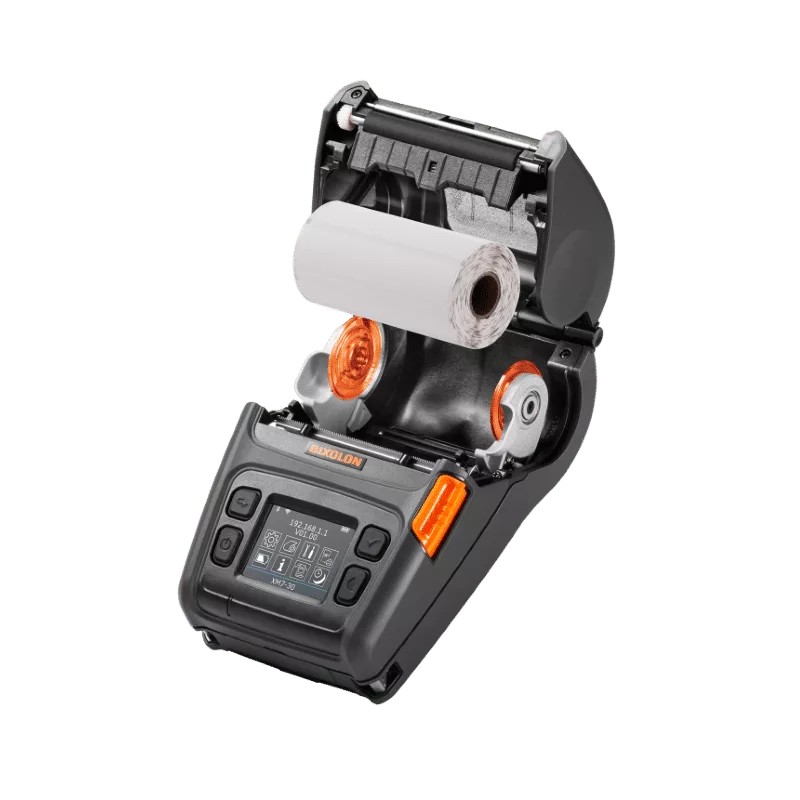

Feeding Method: Easy Paper Loading

Battery Features:

Type: Li-ion, Rechargeable

Standard Capacity: 7.2 V, 3400 mAh

Optional: 7.3 V, 2850 mAh

Protection: IP54, Drop Resistant up to 2.1 m

Sensors: Paper End, Gap, Black Mark, Cover Open, Peeler

Supported Barcodes:
1D: Codabar, Code 39, Code 128, EAN-13, UPC-A etc.
2D: QR Code, Data Matrix, PDF417, MaxiCode etc.

Programming Language: SLCS™, BPL-Z™, BPL-C™, BXL/POS

Interfaces and Ports: USB 2.0, RS232, Bluetooth V5.0 (MFi certified)

OS Compatibility: Android, iOS, Windows

Operating Temperature (°C): -15 ~ +50

Humidity (%RH): 10 ~ 80%

Dimensions (mm): 119 x 180 x 79

Weight (kg): 0.795 (with battery)

Color: Black

Included Accessories: 2850 mAh Li-ion Battery
