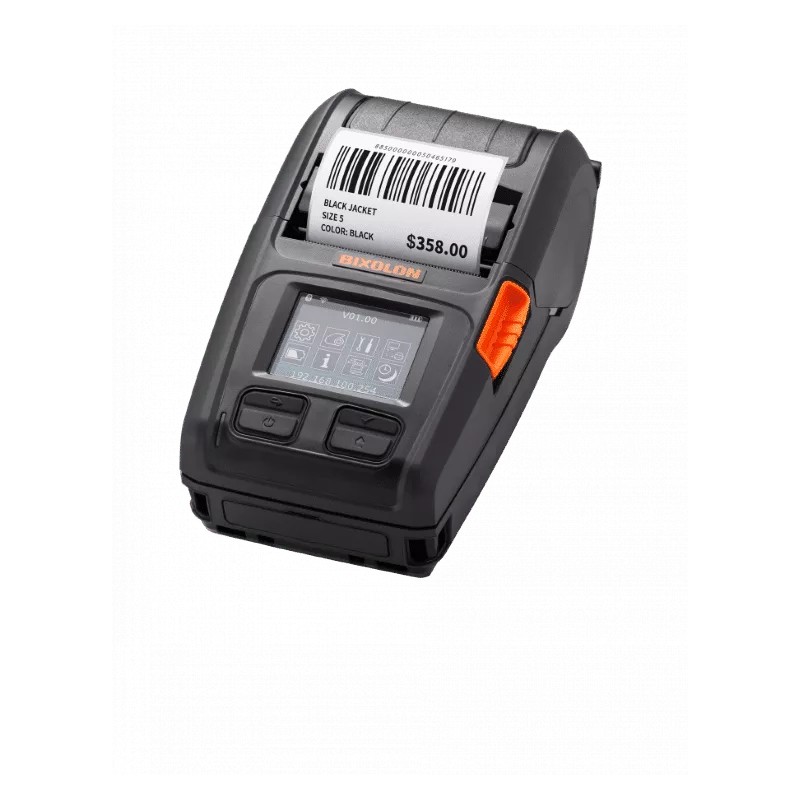

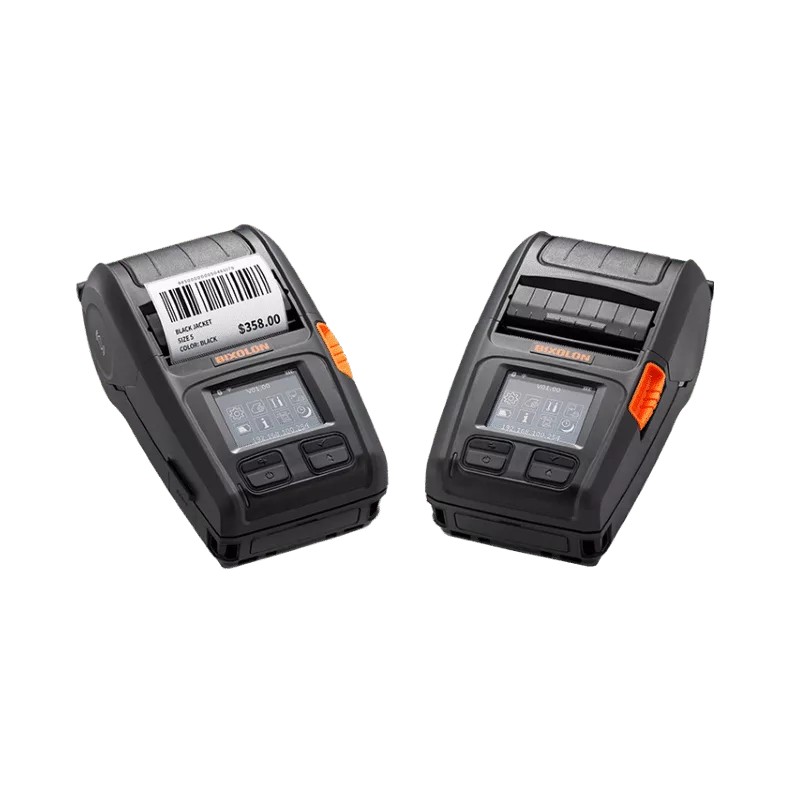

The Bixolon XM7-20 is a compact and powerful 2" (48 mm) mobile printer for printing labels and receipts using direct thermal technology. With a print speed of up to 152 mm/s and a resolution of 203 dpi, this printer is ideal for applications in transportation, logistics, retail and field services. IP54 certified and drop-resistant up to 2.1 meters, the XM7-20 offers reliability in harsh environments.

Operator display: TFT LCD color screen (240 x 320 pixels)

Printing method: Direct thermal (TD)

Printing speed (mm/s): Up to 152

Printing resolution (DPI): 203

Memory: 256 MB Flash, 128 MB RAM (optional: 512 MB Flash, 256 MB RAM)

Printable area (mm): 48

Media width (mm): 25 ~ 58

Roll diameter (mm): Max. 57

Media thickness: 0.07 ~ 0.19 mm

Media types: Liner, Notch, Receipt, optional: Linerless

Feeding method: Easy paper loading

Battery features:

Type: Li-ion, rechargeable

Standard capacity: 7.3 V, 2850 mAh

Optional: 7.2 V, 3400 mAh (Smart Battery)

Protection: IP54, drop resistance up to 2.1 m

Sensors: Paper end, gap, black mark, cover open

Supported barcodes:
1D: Codabar, Code 39, Code 128, EAN-13, UPC-A etc.
2D: QR Code, Data Matrix, PDF417, MaxiCode etc.

Programming Language: SLCS™, BPL-Z™, BPL-C™, BXL/POS

Interfaces and Ports: USB 2.0, RS232, Bluetooth V5.0 (IOS)

OS Compatibility: iOS

Operating Temperature (°C): -15 ~ +50

Humidity (%RH): 10 ~ 80%

Dimensions (mm): 93 x 168 x 69

Weight (kg): 0.600 (with battery)

Color: Black

Included Accessories: 2850 mAh Li-ion Battery
