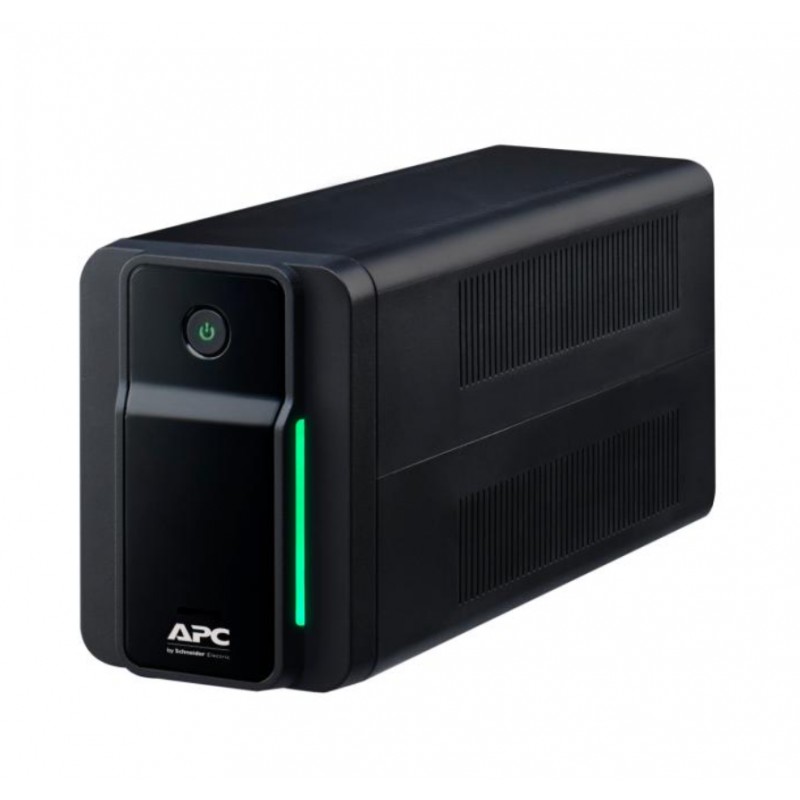

APC Back-UPS 1600VA is a UPS designed for home and small office applications, providing basic protection against power outages and voltage fluctuations. The unit uses Line-Interactive topology with AVR for voltage stabilization and features 4 Schuko outlets for connecting equipment. It includes LED indicators, a USB port, surge protection, and is built for stable performance in different operating environments.

Technical specifications (EN)

Output power capacity: 1.6 kVA
Output power: 900 W
UPS topology: Line-Interactive
Waveform: Sine
Automatic Voltage Regulation: Yes
Output voltage regulation: 10%
Output frequency: 50/60 Hz
Output frequency regulation: 0.5 Hz
Input operating voltage (min): 140 V
Input operating voltage (max): 300 V
Output operating voltage (min): 230 V
Output operating voltage (max): 230 V
Input frequency: 50 - 60 Hz
Response time: 6 ms
Input power factor: 0.56
Surge protection: Yes
Surge energy rating: 273 J
Audible alarm: Yes
Audible alarm mode: Low battery alarm
Noise level: 40 dB

Battery technology: Sealed Lead Acid (VRLA)
Battery recharge time: 8 h
Battery life: 2 years
Typical backup time (full load): 1 min
Typical backup time (half load): 6.5 min

AC outlets quantity: 4
AC outlet type: Schuko (Type F)
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports: 1
USB port type: USB Type-B
Cables included: Input power cable
Cable length: 1.2 m
Form factor: Compact
Built-in fan: Yes
IP code: IP20

Dimensions (W x D x H): 140 mm x 390 mm x 190 mm
Weight: 10.3 kg

Package dimensions (W x D x H): 235 mm x 495 mm x 297 mm
Package weight: 11.3 kg

Operating temperature: 0 - 40 °C
Storage temperature: -15 - 40 °C
Operating humidity: 0 - 95%
Operating altitude: 0 - 3000 m

Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
