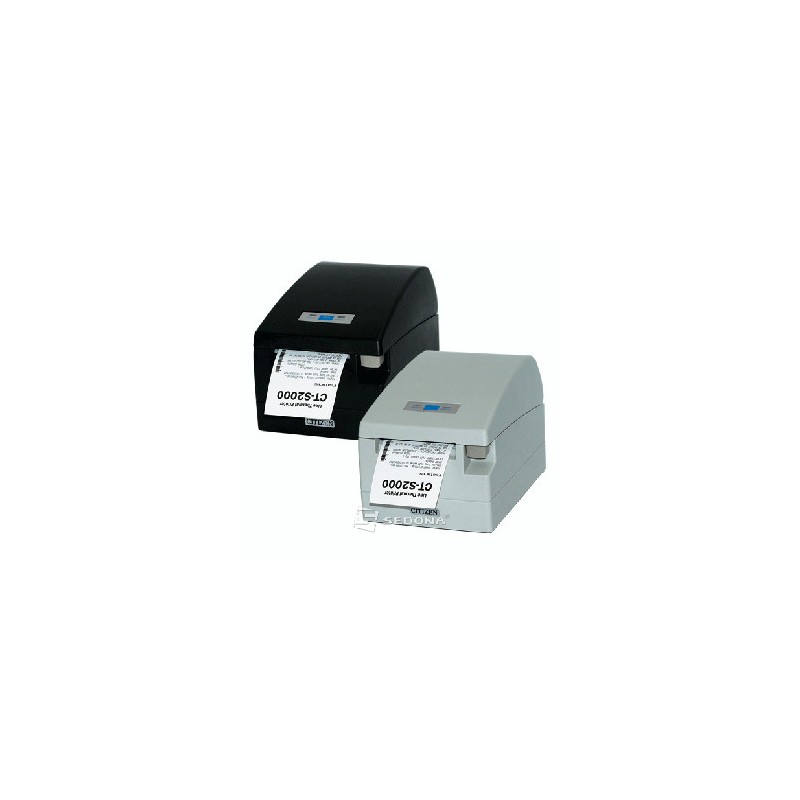

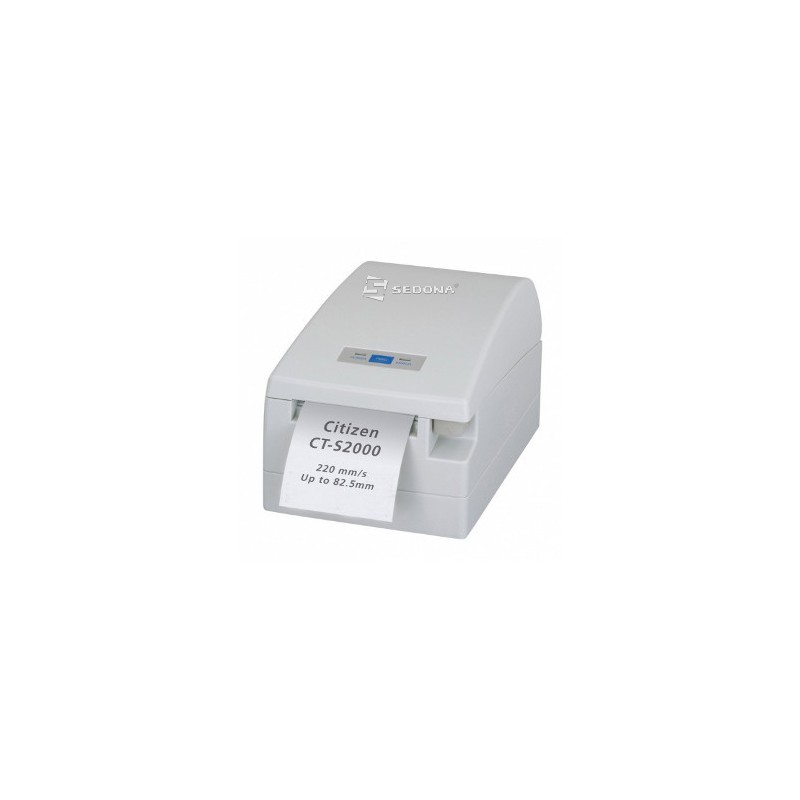

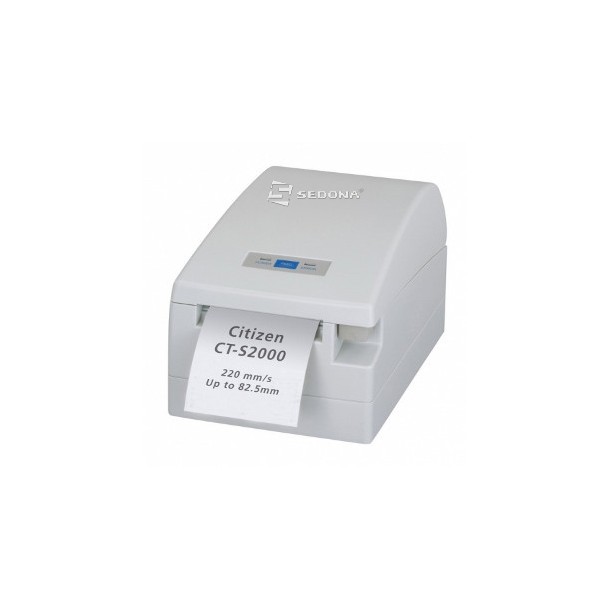

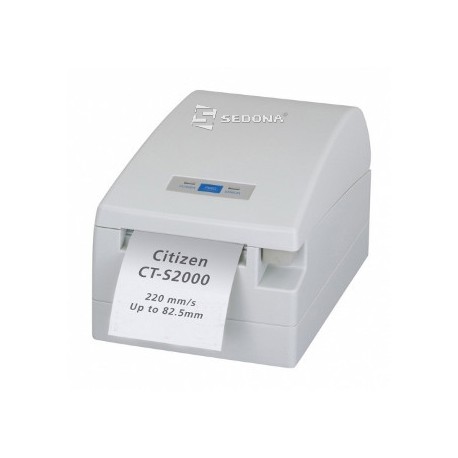

With its unique high-speed DMA (Direct Memory Access) the CT-S2000 is a two-color, thermal printer capable of “real-world” speeds up to 220mm/second and offers variety of advanced printer features including: Spill-Shield™ design to prevent damage from moisture or foreign objects to the internal mechanism, large capacity (102mm) drop-in paper loading, Quick-Clear™ technology for one-touch clearing of cutter jams, a powerful two-million cut rated auto paper cutter, USB interface.

Printing Method Line: thermal dot print method

Print Width Max: 80mm/640 dots

Dot Density: 8 (horizontal) X 8 (vertical) dots/mm (203 dpi)

Print Speed Max: 220mm/sec

Number of Columns: Font A: Max 53 columns 12 x 24

Font B: Max 71 columns 9 x 24

Font C: Max 80 columns 8 x16

Character Size: Font A: 1.50 x 3.00mm; Font B: 1.13 x 3.00mm; Font C: 1.00 x 2.00mm

Character Table: International characters (12 countries)

Barcode Types: UPC-A/E, JAN/EAN-8, JAN-EAN-13, ITF, Code 39, Code 93,

Code 128, and CODABAR

Paper Feed Pitch: 0.125mm

Line Feed Pitch: 4.23 mm (1/16 inch) User selectable

Paper Roll: 82.5, 80, 60, 58 x 102mm diameter

Auto Paper Cutter Method: Guillotine, partial cut available (one point left)

Cut duty: 20 cuts/minute

Interface: USB + RS232

Input Buffer: 4k bytes

NV User Memory Max: 384k user selectable

Drawer Kick-Out: Two drawers

Power Supply Input: AC100-230V

Weight: 2 kg

Outside Dimensions (W x D x H): 147 x 207 x 147mm

Environment Operation: 5-45 C°, 10-90 RH% (no condensation)

Storage: -20 to 60 C°, 10-90 RH% (no condensation)

Reliability Main Unit: 20 Million lines

Thermal Head: 200 Million pulses or 150km

Auto Cutter: 2 Million cuts

Warranty: 2 years
