Print Method:Direct Thermal

Resolution: 203 dpi (8 dots/mm)

Print SpeedMax.: 300 mm/s

Printing WidthMax.: 72 mm

Interface: StandardUSB Type B, Cashbox Option Serial Port, Ethernet, Parallel, Serial Port and Ethernet (2 in 1), Bluetooth, Wi-Fi

Page Mode:Support

Programming Language: ESC/POS

Memory: RAM2 MB, Flash4 MB

Fonts: Alphanumeric; Simplified Chinese, Traditional Chinese; 47 International Charactes Sets

Barcode: Linear BarcodesUPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93

2D BarcodesPDF417, QR Code

Graphics:Support bitmap printing with different density and user defined bitmap printing. (Max size of each bitmap is 40 KB, the total size of bitmap is 256 KB)

Sensors:StandardPaper out Detector, Paper near end Detector, Cutter jam Detector, Head up Sensor

OptionPaper taken Detector

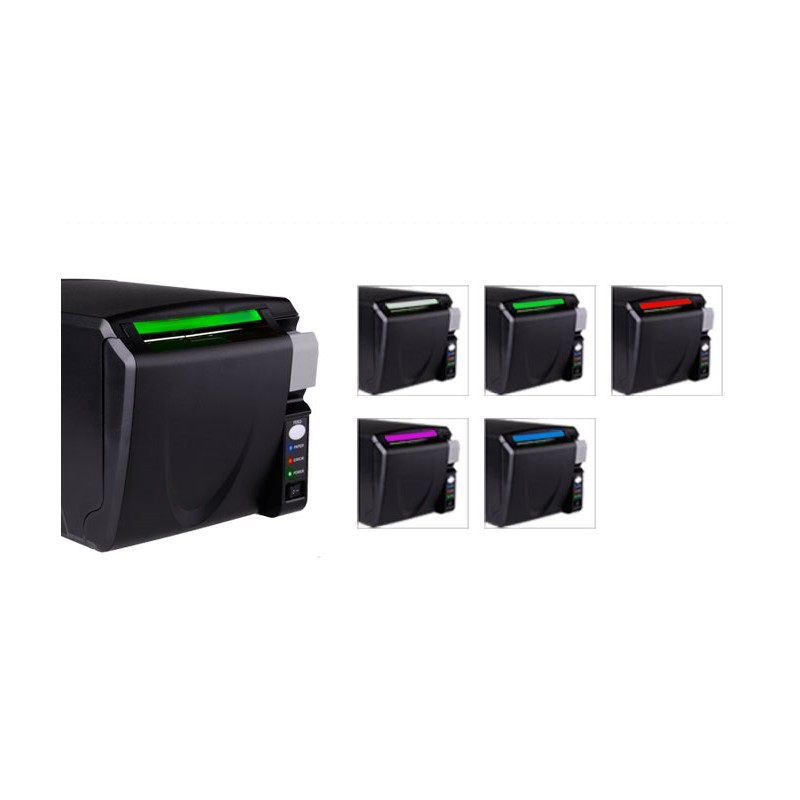

LED Indicator:6 Colours

Power Supply: InputAC 100V~240V, 50/60Hz, OutputDC 24V/2A

Paper Type: Thermal Receipt Paper

Paper WidthMax. 80mm

Paper Thickness0.056 ~ 0.13 mm

Roll Paper DiameterMax. Φ83 mm (O.D.)

Paper LoadFront paper loading

paper cut Partial cut

Environment: Operating

0 °C ~ 40 °C, 20% ~ 85% R.H

Storage-20 °C ~ 70 °C, 5% ~ 95% R.H

Dimensions: 190(L)×127(W)×126(H)mm

Weight: 1.58 kg

Options and Accessories: USB Cable, Serial Cable, Parallel Cable

Reliability: TPH150 km

Cutter: 2 million cuts

Software: DriverWindows XP / 7/ 8/ 8.1/ 10; POSReady; Linux; OPOS, SDKWinCE, Windows Mobile, Android
