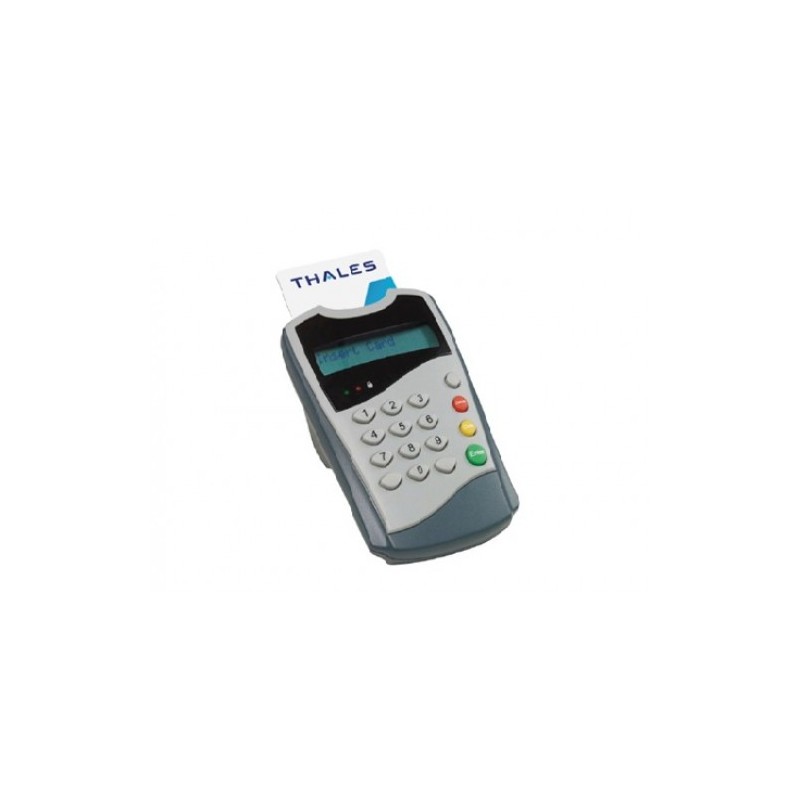

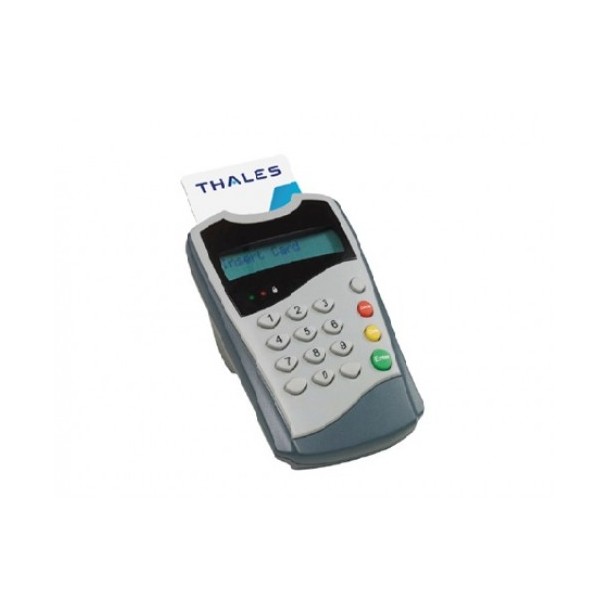

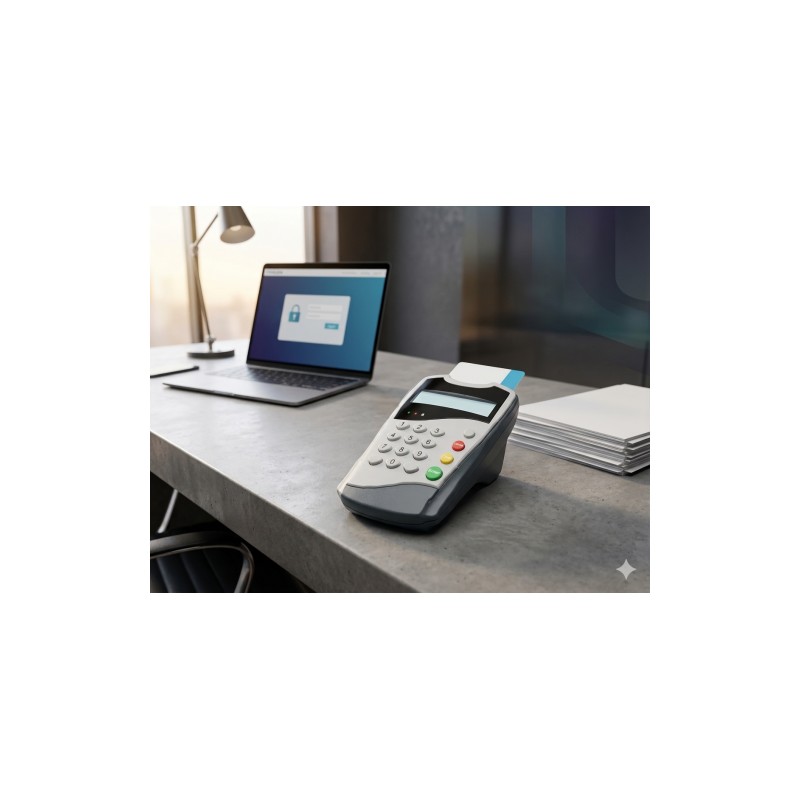

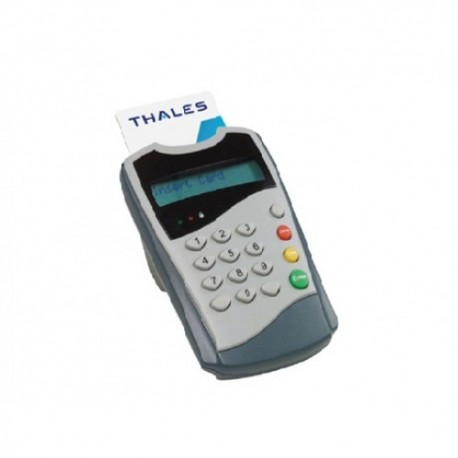

The Gemalto (Thales) IDBridge CT700 is a professional smart card reader with an integrated PIN pad, widely used in Romania for secure access to digital services. The device is compatible with the National Health Insurance Card (used within the SIUI, SIPE, and CEAS systems) as well as with the new Electronic Identity Card (eID).

Thanks to its Class 2 architecture, the PIN code is entered directly on the reader's keypad rather than through the computer keyboard, helping to reduce the risk of data interception by keylogging malware. The device features a robust construction with a weighted base for improved stability, making it suitable for frequent use in medical practices, pharmacies, public institutions, and other professional environments.

Technical Specifications

• Drivers available for Windows 10, Windows 11, Linux, and macOS
• Smart card interface: CLK = 4 MHz, up to TA1 = 97 (500 Kbps if supported by the smart card)
• Supports all ISO 7816 smart cards operating at 1.8 V, 3 V, and 5 V
• Extended APDU command support
• USB-powered
• Short-circuit detection
• 6 friction contacts with ISO-compliant positioning
• Up to 100,000 insertion cycles
• Supports embossed smart cards
• Large display for enhanced user interaction
• LCD display with 2 x 17 characters
• Multi-language support
• Integrated keypad
• Fixed USB cable
• Security seal design

IDBridge CT700 Dimensions and Weight

• Dimensions: 121 x 79 x 49 mm
• Weight: 292 g

Secure PIN Entry and Firewall Features

• The firewall prevents access to the PIN pad memory, keypad, and display
• All PIN buffers (new and old) as well as the card buffer are automatically cleared immediately after the secure command is transmitted to the card
• Three commands are blocked by the firewall: VerifyPIN, ChangePIN, and ChangePIN with PUK
• The firewall can be disabled upon request
• Supports PIN1, PIN2, and PUK codes

Compliance with Industry Standards

• PC/SC V2 Part 10 for Secure PIN Entry devices
• USB 2.0, CCID 1.1
• Full ISO 7816 smart card support
• EMV Level 1
• RoHS, WEEE, CE, and FCC compliant
