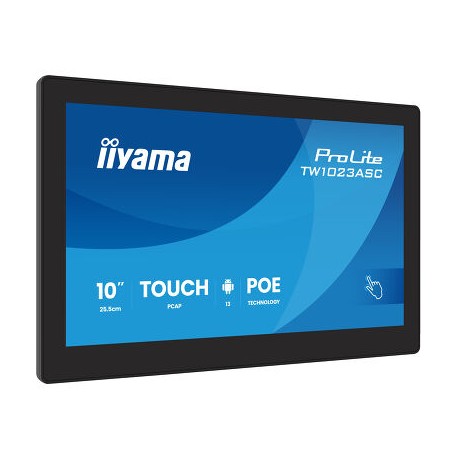

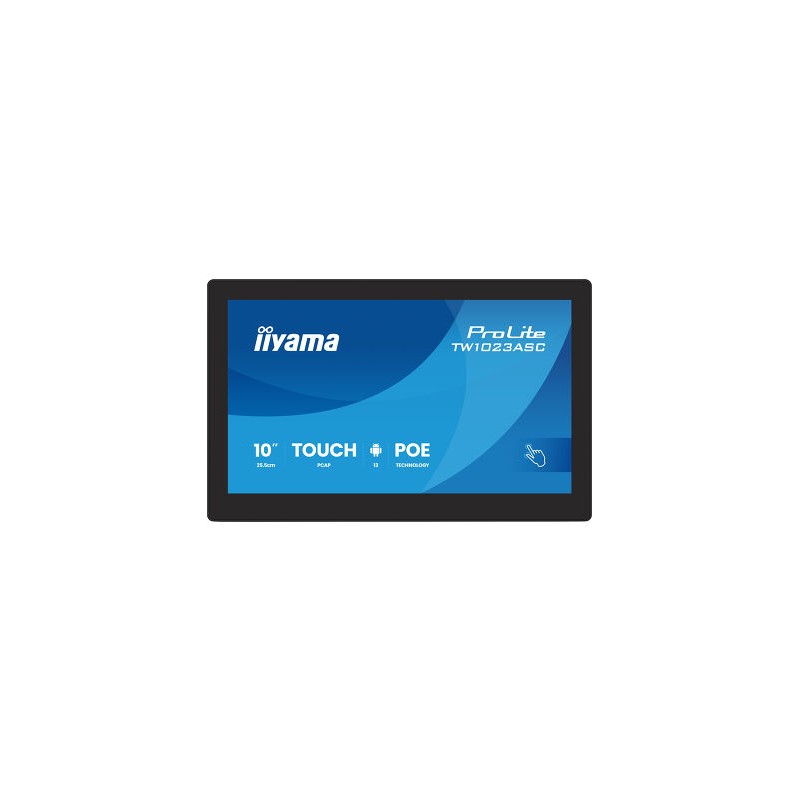

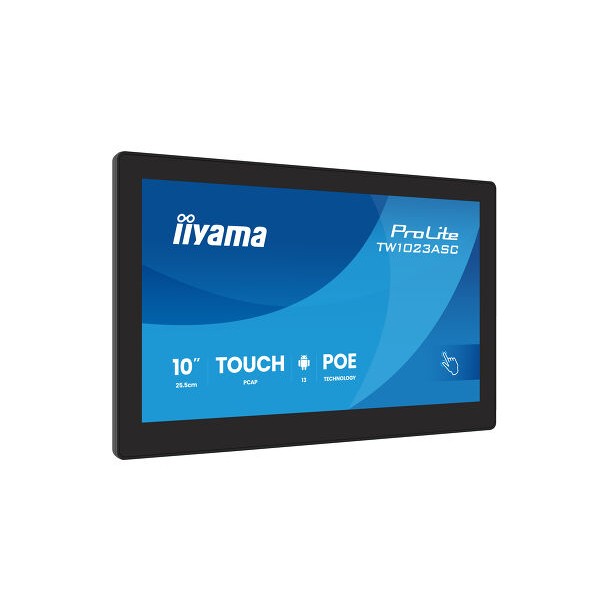

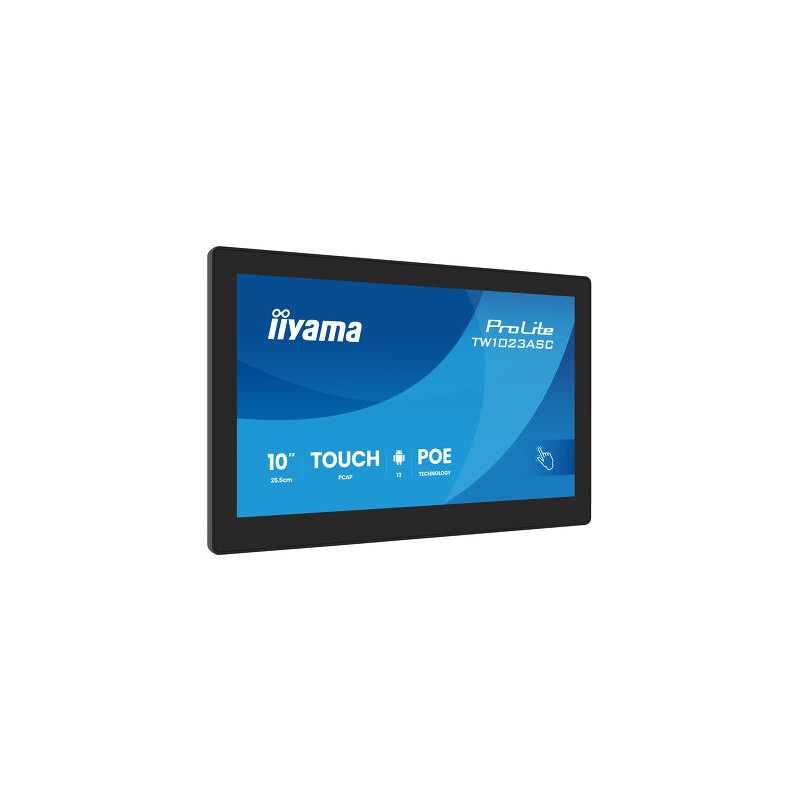

iiyama ProLite TW1023AS-B3P is a smart 10.1-inch touchscreen panel PC designed for high-traffic environments such as meeting rooms, information points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13 and equipped with powerful hardware, it allows easy app installation directly on the device, providing an all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation. The panel features a built-in camera, microphone, and speakers for seamless interaction. It integrates effortlessly with iiSignage² (CMS), offering full control of messages and advertising in landscape, portrait, or face-up orientation.

Display:
Diagonal: 10.1 inch (25.5 cm)
Panel: IPS
Native resolution: 1280 x 800 (HD 1 megapixel)
Aspect ratio: 16:10
Brightness: 450 cd/m², 385 cd/m² with touch
Light transmittance: 86%
Static contrast: 1000:1 with touch
Response time (GTG): 25 ms
Viewing angles: 160° horizontal / 160° vertical
Color support: 16.7 million, 8 bit
Active area: 216.6 x 135.4 mm
Pixel pitch: 0.1692 mm
Bezel color and finish: black, matte

Touch:
Touch technology: projective capacitive
Touch points: 10
Touch method: finger, glove (latex), capacitive stylus
Touch interface: USB

Connectivity and Controls:
Audio input: 3.5 mm mini jack
Digital output: HDMI (mini HDMI, 1280x720 @60Hz)
Speakers: 2 x 1.5W
USB ports: 4 (1 x 3.2 Gen1, 2 x 2.0, 1 x Micro with OTG)
LAN: 1 x RJ45 PoE (IEEE802.3 at, Max 30W)
Microphone: 1

Software and Features:
Operating system: Android 13
CPU: Rockchip RK3568 Quad-core up to 2.0 GHz
GPU: Mali G52
Internal storage: 32GB eMMC
RAM: 4GB LPDDR4X
WiFi: IEEE802.11a/b/g/n/ac
Bluetooth: 5.2
Extras: auto-rotation, 5MP webcam, microphone, SD card slot, anti-fingerprint coating
Kiosk mode: yes
Max. continuous operation: 24/7
Glass thickness: 1.25 mm
Glass hardness: 6H
OSD key lock: yes

General:
Control buttons: Power, Home, Brightness +/-, Volume +/-
Applications: lock apps, calendar, calculator, Chrome, Gmail, iiSignage², Play Store, media player, sound/video recorder, and more
Flicker free: yes

Mechanical:

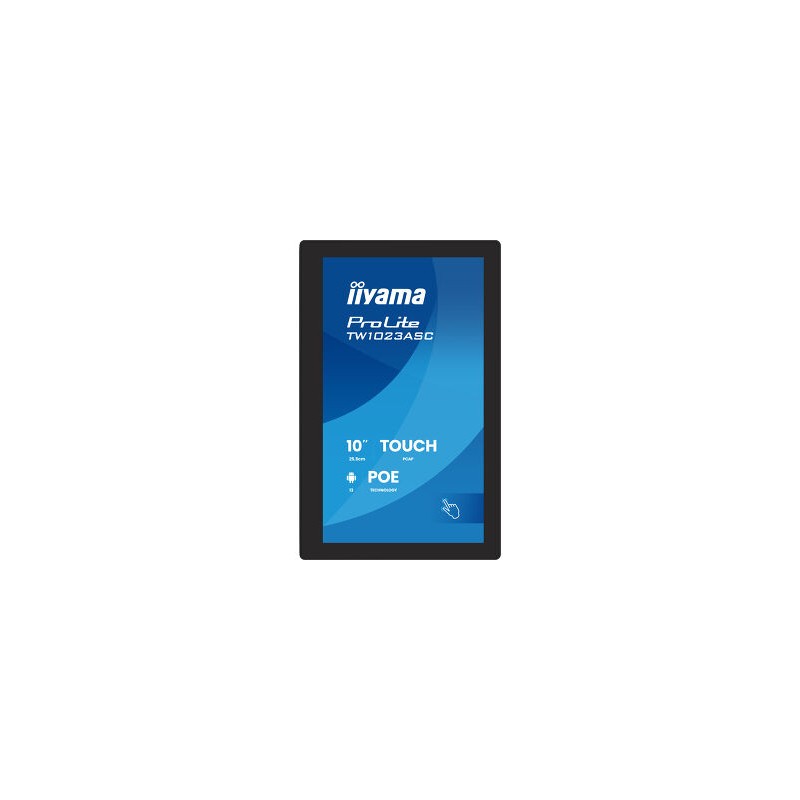

Orientation: landscape, portrait, face-up
Cable management system: yes

Accessories included:
Power cable 2.5 m
Quick start guide, safety guide
AC adapter with interchangeable plugs (EU/UK)
Cable cover: yes

Power and Consumption:
Power supply: external
Voltage: DC 12V
Typical power usage: 18W, standby 0.5W, off 0.3W

Sustainability and Certifications:
Regulations: CE, EAC, RoHS, ErP, WEEE, REACH, UKCA
REACH SVHC: above 0.1% Lead

Dimensions and Weight:
Product dimensions: 255 x 172 x 30.5 mm
Box dimensions: 398 x 223 x 68 mm
Weight without box: 0.8 kg
Weight with box: 1.36 kg
EAN: 4948570126927
