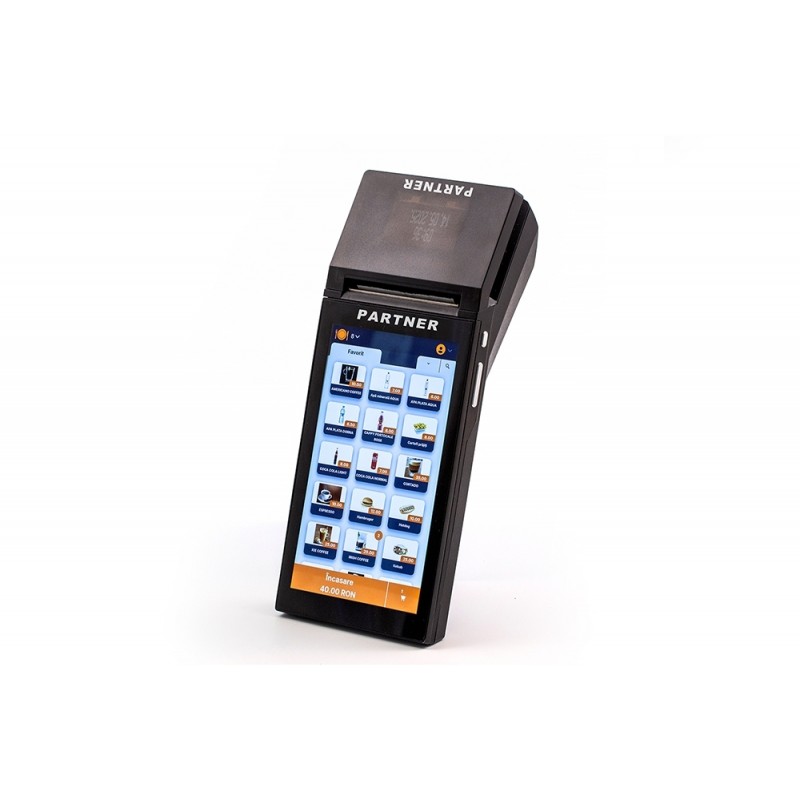

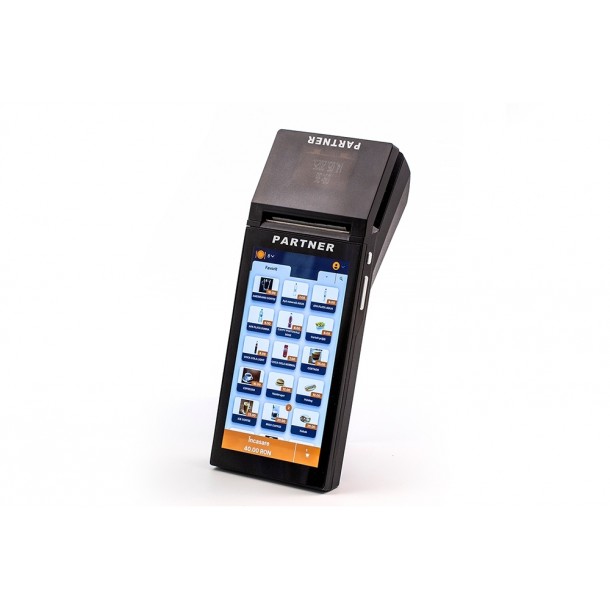

The PARTNER TOUCH EVO fiscal cash register is the most advanced ''ALL IN ONE'' cash register developed on the Android 11 platform and which was built according to the legislative and fiscal norms in force. This equipment integrates:

-Fiscal cash register;

-Bank POS;

-Barcode scanner;

Menu and keyboard in Romanian;

Allows both stationary and portable use thanks to the high-capacity battery in the standard equipment;

Equipped with 5 interfaces for external communication: USB, RS232, Ethernet WI-FI and Bluetooth;

• Motherboard designed and prepared for equipping with GPRS modem (optional);

• 6 inch TFT LCD Touchscreen display + 4 lines * 16 characters OLED client display;

• Internal Li-Ion battery 7.4 V 2600 mA. Can operate autonomously or connected to a 220 Vac socket;

• 5000 items (PLU), 20 departments, 20 groups, electronic journal with Micro-SD memory up to 32 GB;

• 8 VAT groups, 9 predefined payment forms +10 programmable;

• Thermal paper: 57 mm wide roll, 50 mm diameter;

• Connectivity: 1 x RS232; 1 x cash drawer port; 1 x micro-USB port; 1 x Ethernet; 1 x WI-FI interface

Technical specifications:

Operating system: Android 11 / Linux U-Boot / RedHat

Processor: Quad-Core ARM Cortex-A55 64-bit up to 2.0 GHz

Memory:

RAM: DDR 2 GB

System memory (ROM): eMMC 16 GB

Electronic journal: minimum 8 GB TF Card, maximum 32 GB TF Card

Fiscal memory: MCU + 4 MB, capacity up to 1850 Z reports

Memory replacement fiscal: Not required

Cryptographic module: TPM 2.0 IC, EAL4 certified

Display:

Operator display: PCAP touchscreen, TFT LCD 1280 x 720 (6 inch)

Client display: OLED (64 x 132 pixels), 4 lines * 16 characters

Printer:

Printing technology: thermal transfer

Print speed: 100 mm/s

Paper width: 58 mm

Print width: 48 mm

Roll diameter: 40 mm

Function keys:

Side keys for menu navigation

Side key ON/OFF, emergency call, restart

Interfaces:

1x RS232

1x Ethernet LAN, RJ-45, 100 Mbit

1x USB OTG

Wireless connectivity:

Wi-Fi (standard): IEEE 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz

Bluetooth (standard): 4.0

NFC module: ISO 14443 Part 4, Type A/B cards and MIFARE series

GPRS/3G/4G module: SIM slot

Barcode reader: 1D/2D scanning, 1/4" autofocus camera, 8 MP CMOS

Camera: autofocus, 8 MP CMOS

Power supply:

External adapter: 110–230 Vac / 9 Vdc, 3A

Internal battery (standard): Lithium 7.4V, 2600 mAh

Autonomy: prints up to 10,000 lines (with fully charged battery)

Dimensions and weight:

Dimensions: 222.5 x 89.5 x 58.5 mm (L x W x H)

Weight: 550 g

Certifications:

CE, RoHS, MasterCard TQM, PCI PTS 5.x SRED

EMV Level 1, EMV Level 2, EMV Level 1 Contactless

Other information:

ERED compatible

Allows switching between VAT payer and non-payer status

Does not require replacement of fiscal memory

Compliant with fiscal regulations and technical standards (ISO, CE)

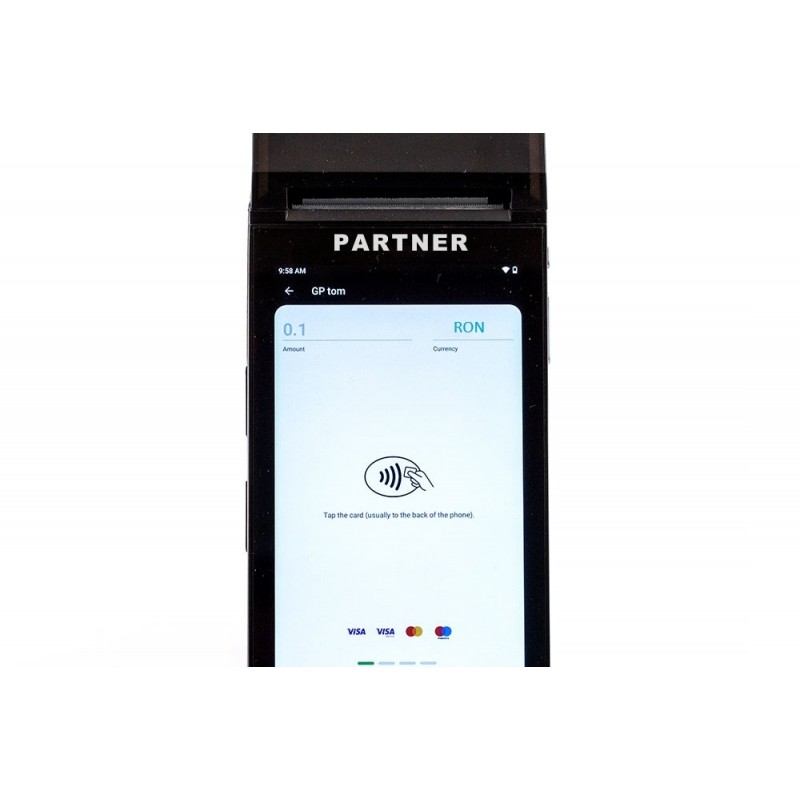

For details on the integrated banking POS part, access the brochure attached to the right.
