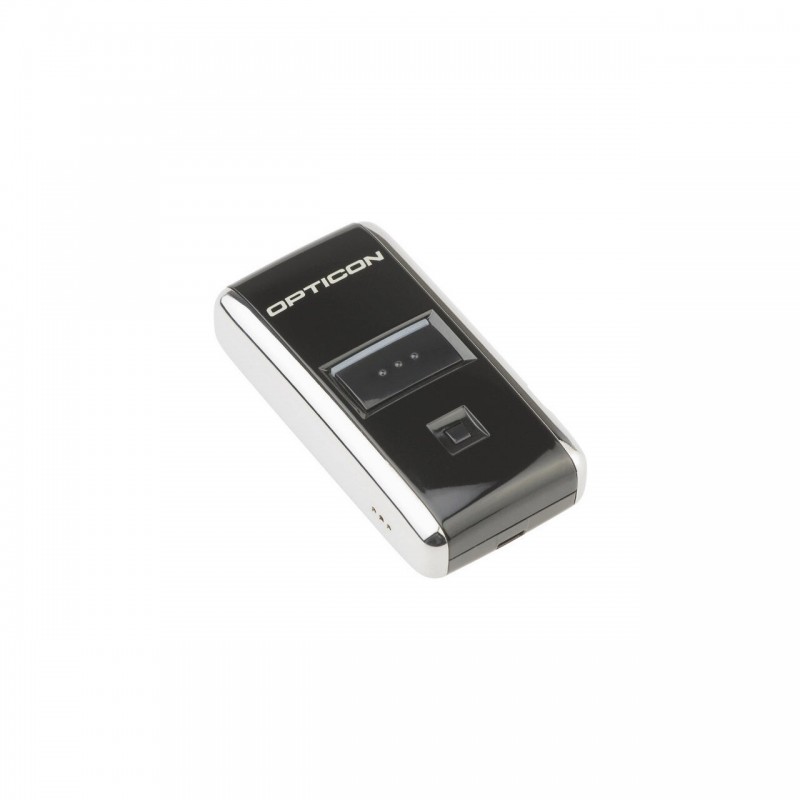

The OPN-2500 enables real-time barcode scanning to any Bluetooth device, as well as batch mode scanning. It is extremely small and lightweight, and comes at an affordable price allowing any company to integrate barcode scanning into their mobile applications.

Features:

CPU: 32-bit

O/S: Proprietary

Software: 3-in-1 default applications (Bluetooth, OPN2001 and batch application)

RTC: Supports year, month, day, hour, minute, second (leap year supported)

Flashrom: 1 MB

SRAM: 256 KB

External Flashrom: 2 MB

Visual: 2 LEDs (RGB)

Non-visual: Buzzer

Input options: 2 keys (1 scan button, 1 function key)

USB: USB-C, USB-VCP, USB-CDC, USB-HID, USB-MSD

Bluetooth: Ver. 5.4, ​​​​​​HID (Human Interface Device), DFU (Device Firmware Update), SPP (Serial Port Emulation), BAS (Battery Service), OptiConnect Service

Rechargeable Battery: 3.7V250mAh Li-ion Polymer

Operation Time (Batch): 12,500 scans (1 scan / 5 sec)

Operation Time (Batch, Idle): >6 months

Operation Time (Bluetooth): 12,000 scans (1 scan / 5 sec)

Operation Time (Bluetooth, Idle): >1 month

Data Retention Time: Indeterminate

Charging Method: USB-C Cable Included

Light Source: 650nm Visible Laser Diode

Scanning Method: Vibrating Mirror

Scanning Rate: Up to 100 scans/second

Reading Step Angle: ± 350

Reading tilt angle: -500 to -80, +80 to +500

Reading tilt angle: ± 200

Curvature: R>15 (EAN 8), R>20 (EAN 13)

Min. resolution at 0.9 pcs: 0.127 mm / 5 mil

Min. PCS Value: 0.2

Depth of Field:

70 - 550 mm (1.00 mm) / 2.76 - 21.65 inches (39 mil)

50 - 380 mm (0.5 mm) / 1.97 - 14.96 inches (20 mil)

50 - 230 mm (0.25 mm) / 1.97 - 9.06 inches (10 mil)

50 - 130 mm (0.15 mm) / 1.97 - 5.12 inches (6 mil)

60 - 110 mm (0.127 mm) / 2.36 - 4.33 inches (5 mil)

Supported Symbologies:

Barcode (1D): JAN/UPC/EAn incl. add on, Codabar / nW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAn-128), GS1 DataBar (RSS), IATA, Industrial 2 of 5, ISBN-ISMN-ISSN, Matrix 2 of 5, MSI/Plessey-UK/ Plessey, S-Code, Telepen, Tri-Optic

Operating Temperature: 0 to 40 0C / 32 to 104 0F

Storage Temperature: -20 to 60 0C / -4 to 140 0F

Operating Humidity: 20% to 85% (non-freezing, non-condensing)

Storage Humidity: 20% to 85% (non-freezing, non-condensing)

Ambient Light Immunity: Incandescent 4,000 lx max, Fluorescent 4,000 lx max, Direct Sunlight 80,000 lx

Maximum Drop Test: 1.5 m / 5 ft drop to concrete

Vibration test: 10 - 100Hz with 2G for 30 min

Protection degree: IP42

Dimensions (W x D x H): 32 x 62 x 16 mm / 1.26 x 2.44 x 0.63 in

Body weight: approx. 29 g / 1 oz (including battery)

Housing: ABS, black
