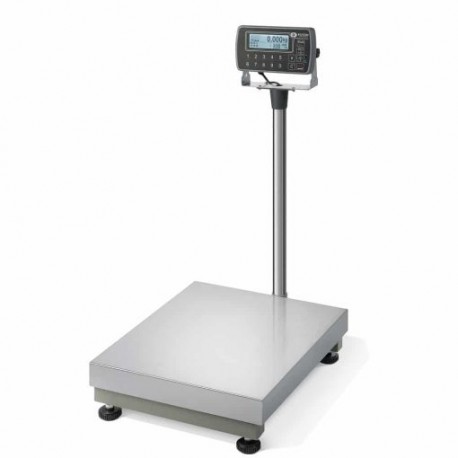

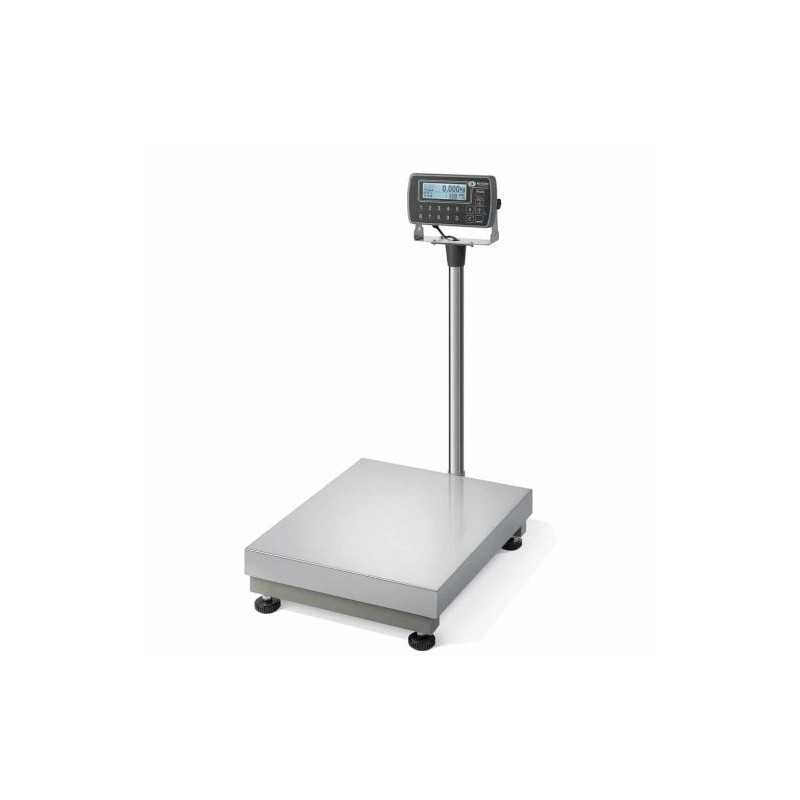

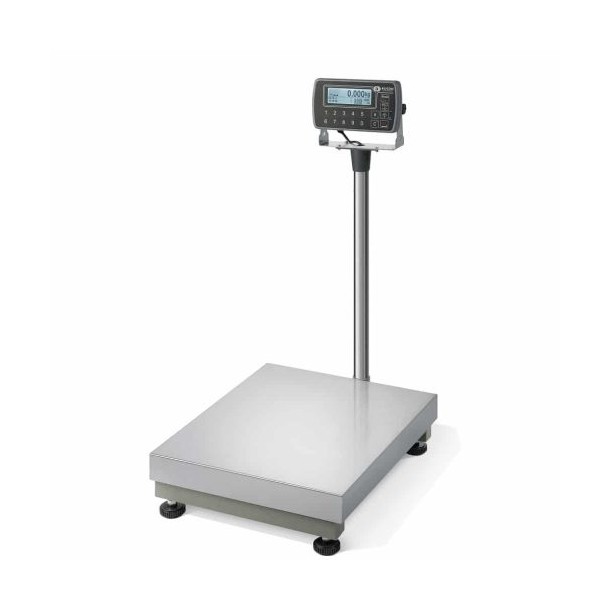

Platform scales from the E Series are modular solutions, designed to meet the requirements of both commercial and industrial environments. They offer maximum flexibility, making them ideal for a wide range of applications.

On workbenches: Perfect for precision tasks at the workbench level.
At floor level: Easy to use for heavier or bulk measurements.
Inside vehicles: Adaptable for direct measurements during transport.
Customizable mounting: The indicator arm can be removed and mounted on a wall, counter, or other support, depending on needs.

E Series scales are equipped with communication options adaptable to various environments or specific requirements:

4…20mA automation modules: Easy integration into automated industrial processes.
Ethernet connection: For remote monitoring and management.
Additional memory: Extended storage for essential data.
Real-time clock with independent power: Extended functionality for precise records.
Battery power: Long-lasting autonomous use.

E Series scales adopt the advanced features of the indicator units, allowing:

Use in complex applications: Suitable for processes involving multiple measurement steps.
Issuing weighing receipts: Ideal for commercial transactions and documentation.

These scales are the perfect choice for companies seeking a balance between performance, flexibility, and state-of-the-art technology. Regardless of the field, the E Series provides the ideal solution!

Technical specifications:

Dimensions: 300 x 300 mm
Division: 2/5/10 g depending on weighing capacity
Accuracy class: III
Platform and indicator arm: Stainless steel AISI 304
Robust structure: Welded rectangular steel tube
Finish: Powder coating in an electrostatic field
Load cell: Single-point aluminum, OIML certified
EU type approval: 10,000e, 0.3 µV/d
Standard indicator unit: Smart Si10 model
Protection class: IP30
Backlight: Multicolor and multifunctional, programmable
Keyboard: Touch, with 6 capacitive keys
Mounting:
On column
On wall
On desk, with adjustable orientation
Power supply: 100-240 V AC with automatic adjustment
Interface: 2 x RS232
Junction box: ABS
Li-ion battery (optional): Separate access for replacement without service visit
Foot system: Non-slip, adjustable
Metrological verification: Factory performed
Certifications: CE certified and compliant with OIML R-76 / EN 45501 standards

These specifications ensure performance, durability, and metrological compliance, making the scales ideal for a variety of industrial and commercial applications.
