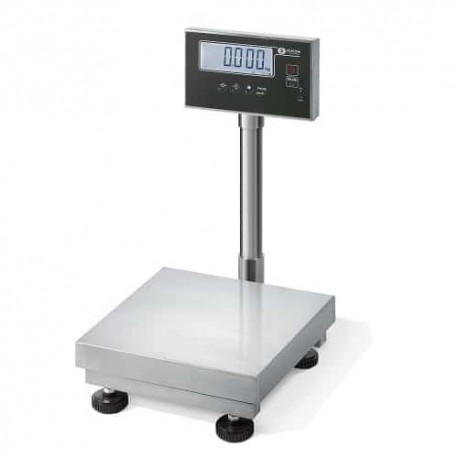

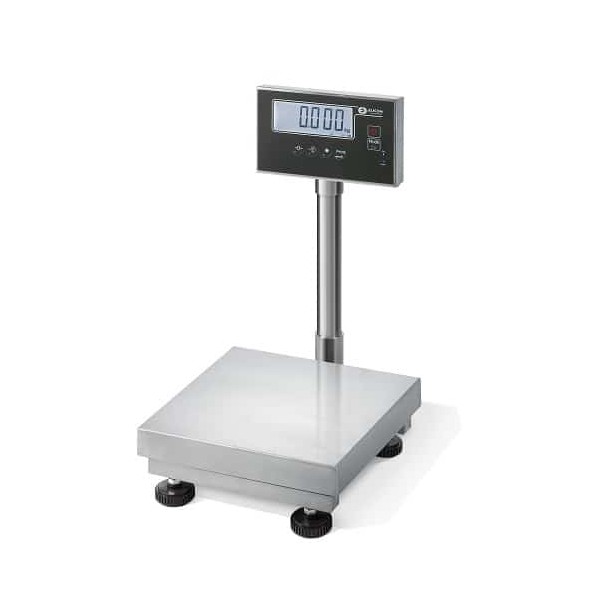

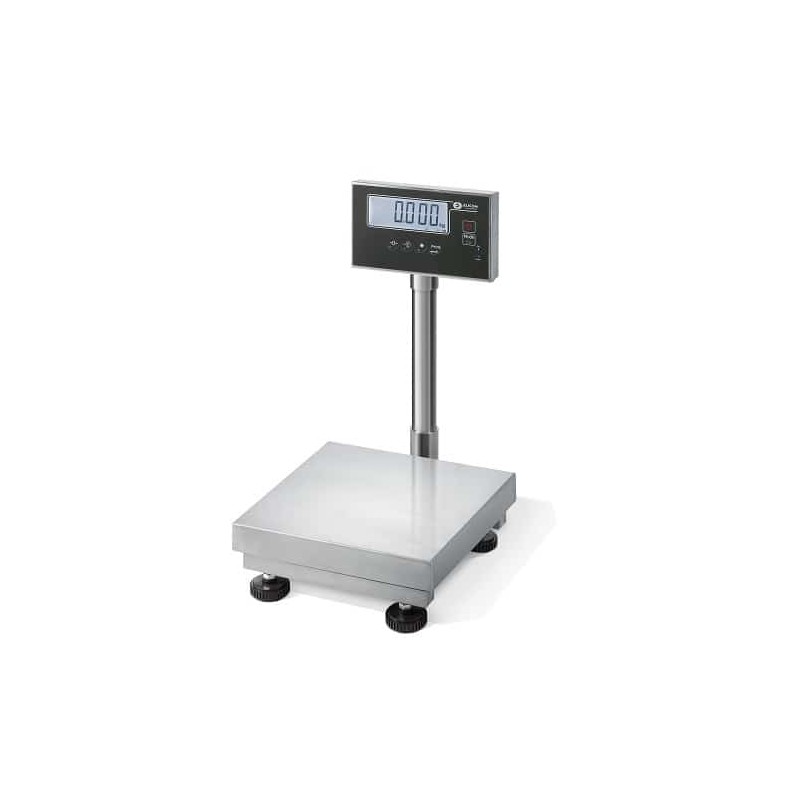

This stainless-steel platform scale with column from the E-SS Series has been specially designed for use in the chemical and food industries.

These scales are ideal for operation in harsh conditions, whether on workbenches, at floor level, or inside vehicles.

The column can be detached, allowing the indicator block to be mounted in other locations such as walls, counters, etc.

The stainless-steel platform scale with column can be equipped with various communication options, adapted to the environment or field of use. Examples include automation modules (4…20mA), Ethernet modules, extra memory, real-time clock with independent power supply, or rechargeable battery for long-term autonomous use.

The E Series platform scales inherit the advanced features of their indicator blocks, enabling use in complex applications, issuing of weighing tickets, and much more.

Technical Specifications:

• Dimensions: 450 x 600 mm

• Division: 50/100 g depending on weighing capacity

• Accuracy class: III

• Material: fully made of AISI 304 stainless steel

• Structure: durable welded stainless steel

• Load cell: single-point, stainless steel, IP68 protection, OIML certified

• EU type approval: 10,000e, 0.3 µV/d

Indicator block:

• Standard model: Si10S

• Stainless steel housing

• Protection class: IP68

• Backlight: multicolor, multifunctional, programmable

• Touch-sensitive keypad with 6 capacitive keys

• Flexible mounting: on column, wall, or desk, with adjustable orientation

• Power supply: 100–240 V AC with automatic regulation

• Interface: 2 x RS232

• Junction box: stainless steel

• Optional Li-ion battery: separate access for quick replacement without service intervention

• Foot system: anti-slip, adjustable

Metrological verification: factory performed
Certifications: CE certified product, compliant with OIML R-76 / EN 45501 standards
