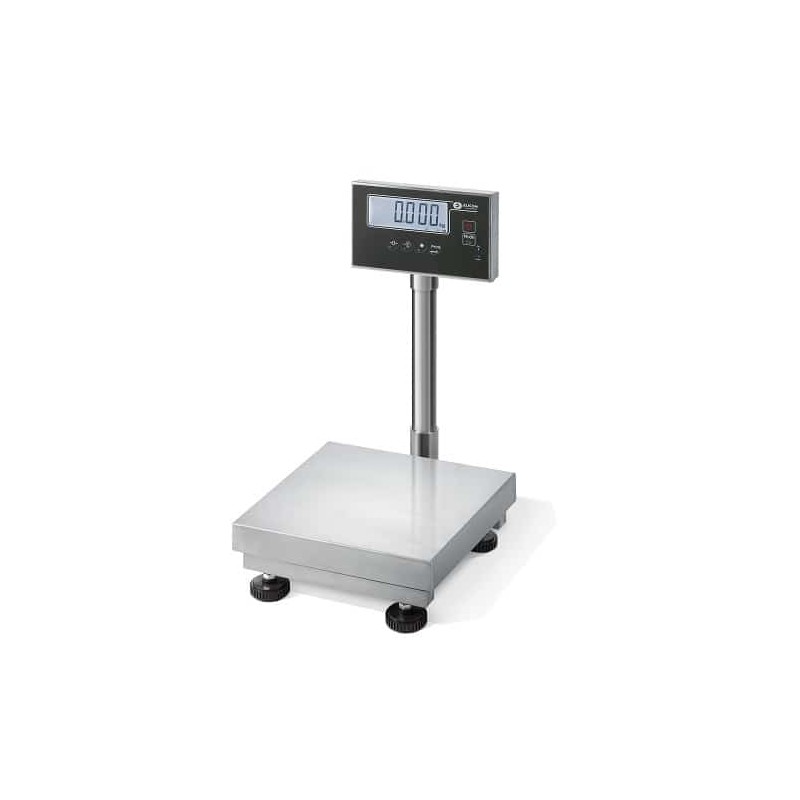

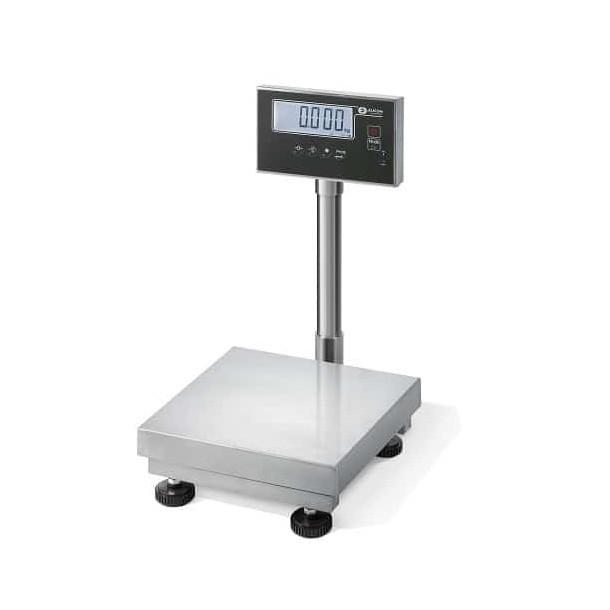

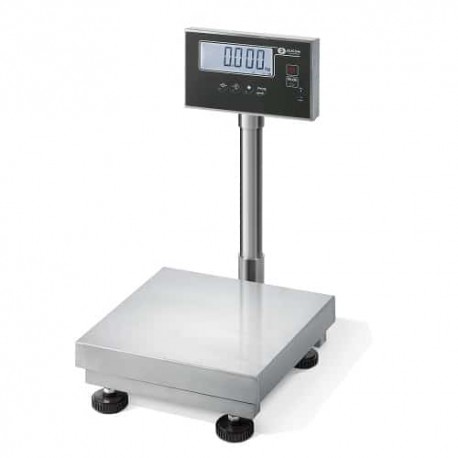

This stainless steel platform scale with column from the E-SS Series has been specially designed for use in the chemical and food industries.

These scales are ideal for use in tough conditions, whether on workbenches, at floor level, or inside vehicles.

The column can be detached, allowing the indicator block to be mounted in other locations, such as on a wall, counter, etc.

The stainless steel platform scale with column can be equipped with various communication options, adapted to the requirements of the environment or field of use. Examples include 4…20mA automation modules, Ethernet modules, additional memory, a real-time clock with its own power supply, or a rechargeable battery for long-term autonomous use.

Platform scales from the E Series benefit from the features of the indicator blocks with which they are equipped, allowing use in complex applications, issuing weighing receipts, and much more.

Technical specifications:

• Dimensions: 700x800 mm

• Division: 100 g

• Accuracy class: III

• Material: entirely made of AISI 304 stainless steel

• Structure: robust, welded stainless steel

• Load cell: single-point, stainless steel, IP68 protection, OIML certified

• EU type approval: 10,000e, 0.3 µV/d

Indicator block:

• Standard model: Si10S

• Stainless steel housing

• Protection class: IP68

• Multicolor backlight, multifunctional and programmable

• Touch keyboard with 6 capacitive keys

• Flexible mounting: on column, wall, desk, with adjustable orientation

• Power supply: 100-240 V AC with automatic adjustment

• Interface: 2 x RS232

• Junction box: stainless steel

• Optional Li-ion battery: separate access for quick replacement without service visit

• Foot system: non-slip, adjustable

• Metrological verification: performed at the factory

• Certifications: CE certified product, compliant with OIML R-76 / EN 45501 standards
